HLA Attachments - 103" Stone Fork Retainer Tine Heavy Duty - Stone and Debris Handling [LA-SFRH103BO500]

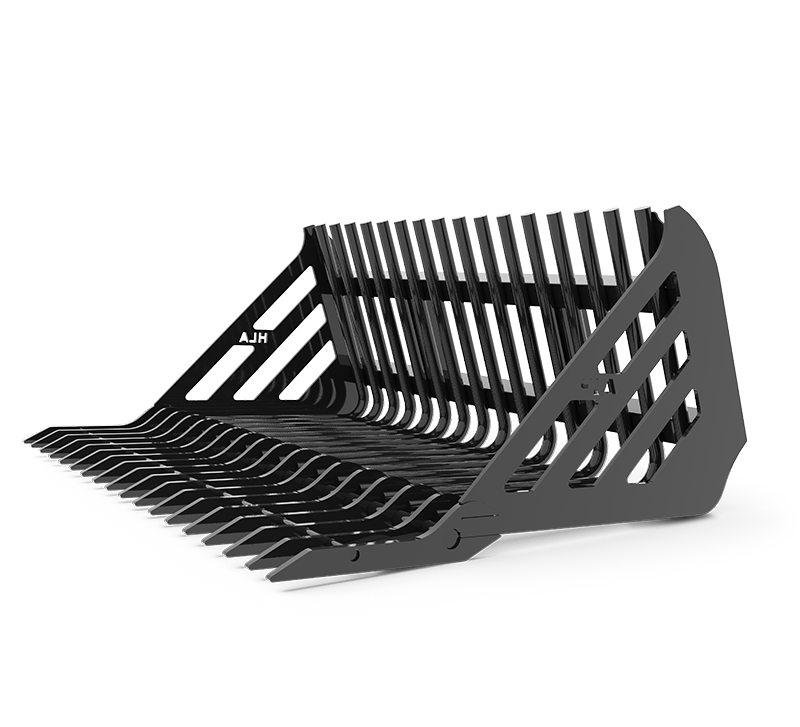

HLA Attachments SFRH103BO500 103-inch Heavy-Duty Stone Fork is a high-capacity material-handling attachment designed for moving stones and debris with compatible Terex quick-attach loaders. This configured model combines the heavy-duty SFRH103 stone fork with HLA’s BO500 quick-attach mount. Its retainer-style tines, 9,500 lb rated capacity, and 103-inch working width make it well suited to demanding landscaping, site cleanup, debris handling, and stone-management applications. Closely spaced, large-diameter tines help retain material, while durable tine points made from 400 Brinell high-strength steel provide strength at the primary wear area.

Heavy-Duty Stone and Debris Handling

The SFRH103 is built for jobs that require a wide, robust attachment and substantial rated capacity. It features 1-3/4-inch-diameter retainer-style tines with 2-3/4-inch spacing between the tines. This configuration allows the stone fork to support and retain larger material while providing openings through which smaller loose material can pass.

Each tine incorporates a 3/4-inch-thick point manufactured from 400 Brinell high-strength steel. This material selection reinforces the tine points for heavy-duty use when working with stones and debris. The attachment measures 31 inches high and 50 inches deep, providing a substantial working profile for gathering, carrying, and managing material.

BO500 Quick-Attach Configuration

This product is supplied in the BO500 mounting configuration. HLA lists the BO500 as a quick-attach mount for Terex TL 60, TL 65, and TL 70 loaders equipped with the corresponding quick-attach system. Matching the loader model and quick-attach interface before ordering is essential.

The published approximate weight of 1,720 lb applies to the SFRH103 base stone fork. HLA does not publish a verified total weight for the complete SFRH103 attachment with the BO500 mounting configuration installed. Loader capacity, operating limits, and attachment suitability should therefore be assessed using the requirements of the complete machine-and-attachment combination.

Key Features

• Heavy-duty stone fork for stone and debris handling
• Wide 103-inch working width
• Retainer-style tine design
• 9,500 lb rated attachment capacity
• Heavy-duty 1-3/4-inch-diameter tines
• 2-3/4-inch spacing between tines
• 3/4-inch-thick tine points
• Tine points manufactured from 400 Brinell high-strength steel
• BO500 quick-attach mounting configuration
• BO500 compatibility with specified Terex TL-series loaders

Compatibility

The BO500 quick-attach mount is listed for the following loaders when equipped with the appropriate quick-attach interface:

• Terex TL 60 with quick attach
• Terex TL 65 with quick attach
• Terex TL 70 with quick attach
