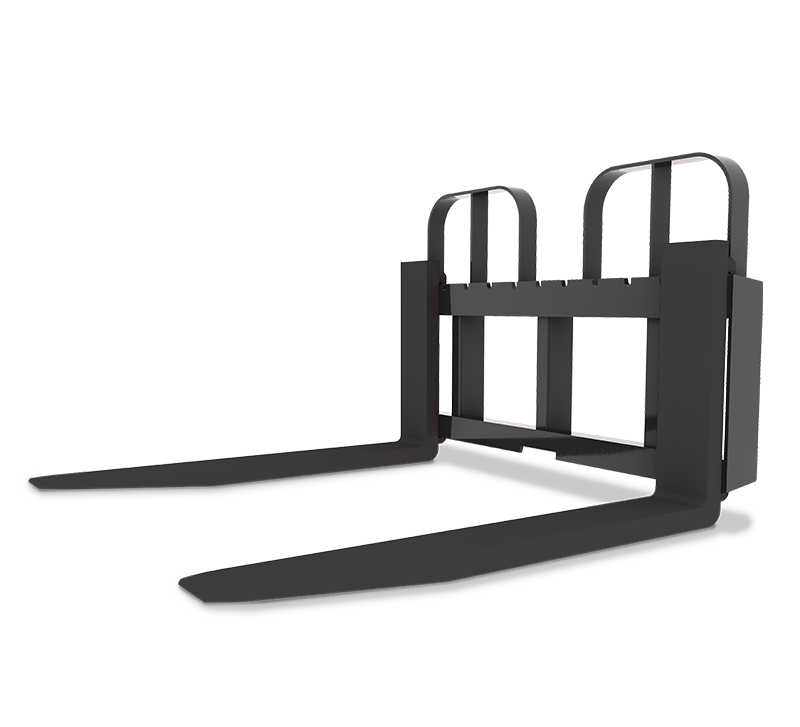

HLA Attachments - 10,000 lb Heavy Duty Pallet Fork with Guard - Tines 54" - Material Handling Fork Attachment [LA-HD10054BO500]

HLA Attachments HD10054BO500 Heavy-Duty Pallet Fork with Guard is a high-capacity material-handling attachment designed for demanding lifting and load-handling applications. Rated for 10,000 lb at a 24-inch load center, it combines 54-inch Class III solid forklift tines with a 50-inch carriage and the HLA BO500 skid-steer-style quick-attach interface. Sliding, adjustable tines allow the fork spacing to be configured for different pallets and materials, while the ability to lock the tines in any position helps keep the selected spacing secure during use. A standard guard is included for added load support.

Heavy-Duty Material Handling

The HD10054BO500 is built around HLA Attachments’ HD10054 pallet fork assembly. Its Class III hook-type forklift tines are solid and measure 2 inches by 6 inches in cross section, providing a robust platform for handling heavy palletized loads and materials. Each tine is 54 inches long, offering substantial load engagement while maintaining the attachment’s verified 10,000-pound capacity at the specified 24-inch load center.

The 50-inch-wide carriage provides the structure for the sliding tine system. Operators can reposition the tines along the carriage to suit varying pallet widths or load dimensions, then lock them in any selected position. This adjustable arrangement makes the attachment useful for a range of material-handling jobs where fixed fork spacing would be limiting.

Included Guard and Optional Full Back Guard

A standard guard is included with this pallet fork attachment. For applications requiring a larger support area behind the load, HLA Attachments also offers an optional full back guard, also described as a brick guard. The compatible optional guard is identified by part number HD100BG.

BO500 Quick-Attach Mount

This configuration uses HLA mounting code BO500, which identifies a skid-steer-style quick-attach interface. The quick-attach design allows the pallet fork to be connected to compatible loader carriers equipped with the corresponding interface. Attachment fit should always be confirmed against the specific loader or carrier model before purchase or installation.

Key Features

• Heavy-duty material-handling pallet fork attachment
• Rated capacity of 10,000 lb at a 24-inch load center
• 54-inch-long fork tines for substantial load engagement
• Class III hook-type solid forklift tines
• Heavy 2-inch by 6-inch tine cross section
• Sliding tines adjust across the carriage to accommodate different loads
• Tines lock in any position
• 50-inch carriage width
• Standard guard included
• Optional HD100BG full back guard or brick guard available
• BO500 skid-steer-style quick-attach mounting interface
• Approximate attachment weight of 735 lb

Compatibility

The HD10054BO500 is equipped with the BO500 skid-steer-style quick-attach interface. It is compatible with loader carriers that use the corresponding HLA BO500 mounting configuration. Because carrier dimensions and attachment systems can vary by loader model, confirm the mounting interface and fit for the intended loader or carrier before ordering.
