GRAPPLE, 72" 3PT, PRO

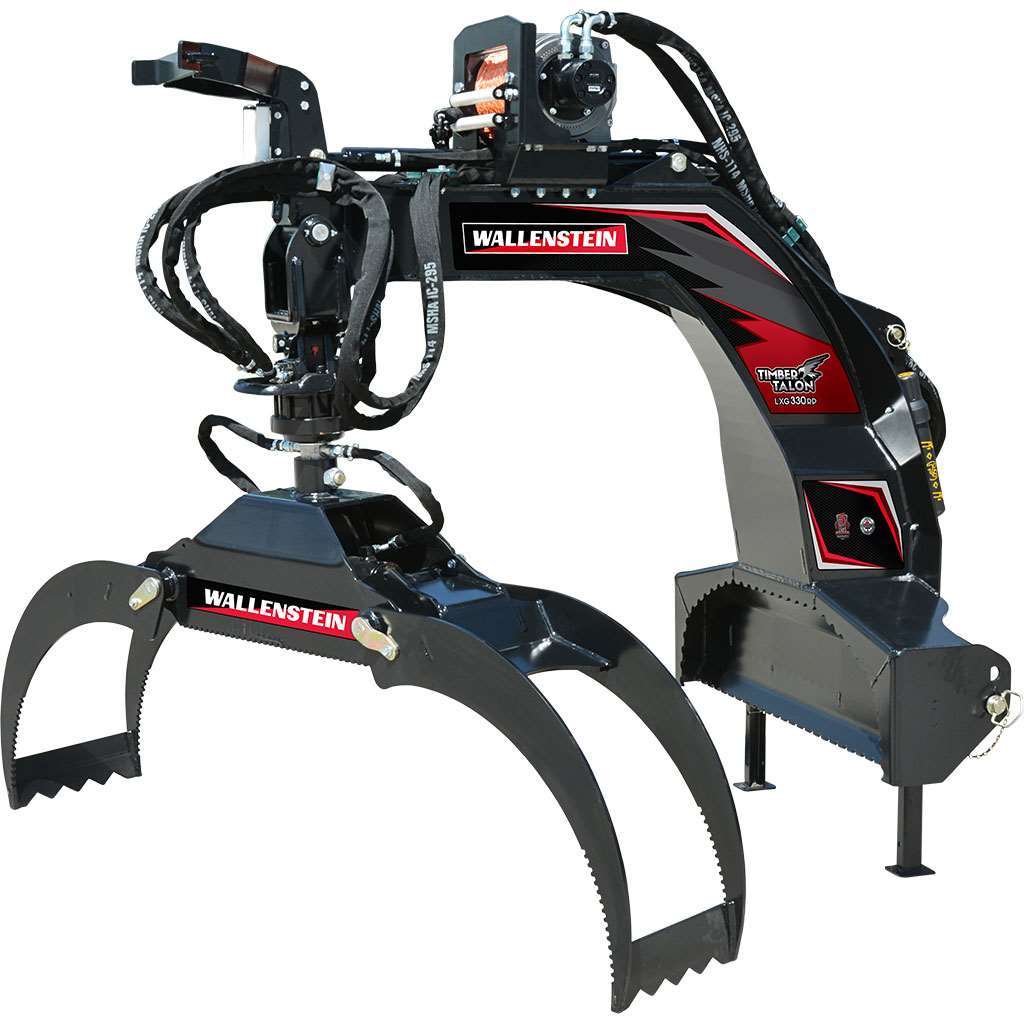

Wallenstein LXG330RP GRAPPLE, 72" 3PT, PRO is a professional 3-point tractor log grapple designed for controlled handling, positioning, and extraction of logs and timber. With a grapple opening of up to 72 inches, 360-degree hydraulic rotation, a hydraulic Warn winch, an extendable boom, and a cantilever cradle, it gives operators versatile control when working in forestry, land clearing, and material-handling applications. The LXG330RP provides up to 4,500 lb of lift capacity with the boom retracted, while the manufacturer lists 3,000 lb of lift capacity when extended.

Professional Log-Handling Performance

The LXG330RP mounts to a Category II or Category III tractor 3-point hitch and is designed for tractors in the 55-120 engine-hp range. Its 72-inch grapple opening accommodates a broad range of log sizes, while the 360-degree hydraulic rotator helps orient material for loading, positioning, and placement without requiring the tractor to be repositioned for every movement.

A 24-inch extendable boom adds reach when accessing material or positioning the grapple. When additional pulling force is needed, the integrated hydraulic Warn winch provides 9,000 lb of pulling capacity and includes 100 feet of rope. The 19-inch push bar, bypass grapples, and cantilever cradle support controlled handling during forestry and property-maintenance work.

Key Features

• Professional 3-point tractor log grapple
• 72-inch maximum grapple opening
• 360-degree hydraulic rotation
• 4,500 lb lift capacity with the boom retracted
• 3,000 lb lift capacity with the boom extended
• 24-inch extendable boom
• 21,000 lb clamp force
• Hydraulic Warn winch with 9,000 lb pulling capacity
• 100-foot winch rope
• 19-inch push bar
• Bypass grapples and cantilever cradle
• Hydraulic hoses and couplers included

Tractor Requirements and Compatibility

The Wallenstein LXG330RP is intended for use with a tractor 3-point hitch and supports Category II and Category III mounting. The recommended tractor engine range is 55-120 hp. The manufacturer specifies an open-center hydraulic system and recommends hydraulic flow of 10 gpm (38 lpm). The manufacturer catalogue also identifies a minimum hydraulic-flow range of 10-20 gpm, depending on the application, and requires a 12 V electrical supply for the hydraulic winch system.

Confirm that the tractor has the correct hitch category, hydraulic connections, available flow, and electrical supply before installation. Hydraulic hoses and couplers are included with the grapple.

Specifications

The Wallenstein LXG330RP combines hydraulic rotation, grapple lifting, boom reach, and winching in one professional tractor-mounted package for demanding log-handling and land-management tasks.
