GRAPPLE, 48" 3PT, SR

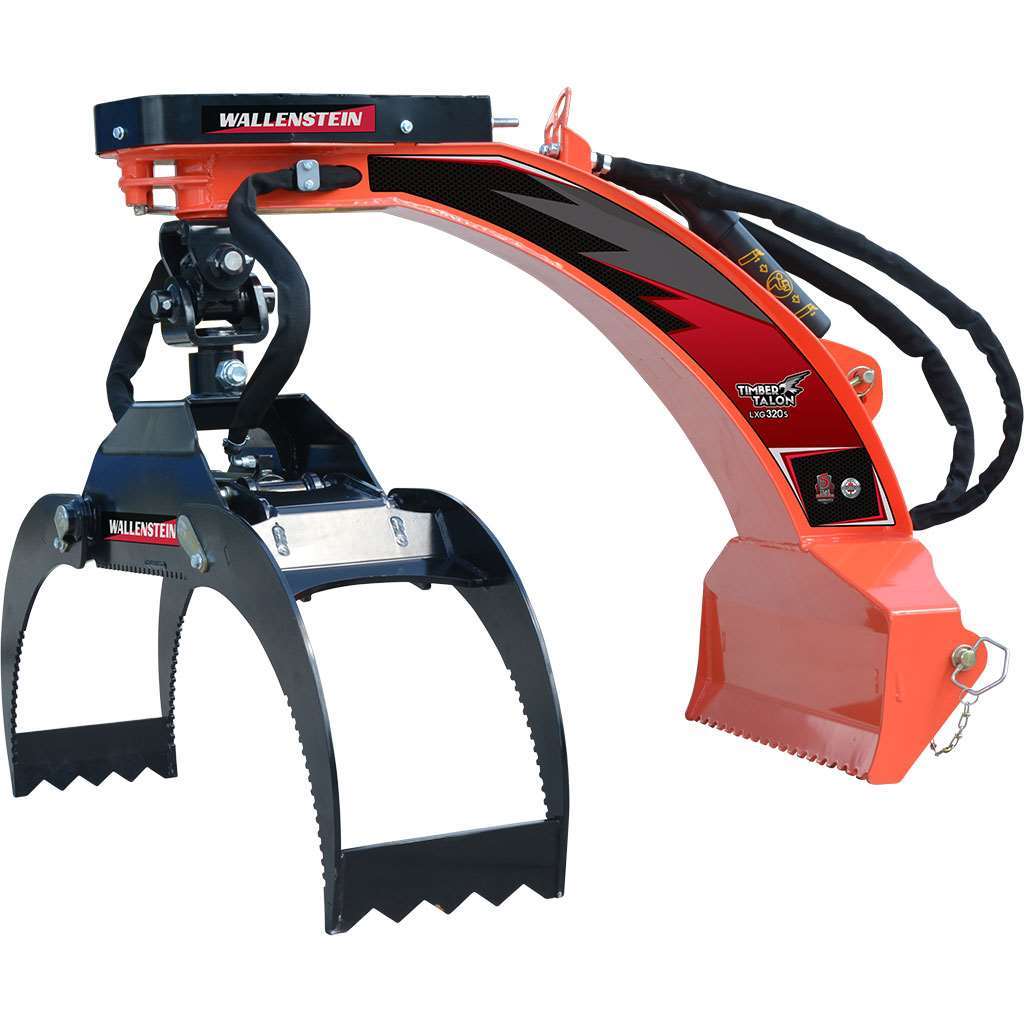

Wallenstein LXG320S 48 in Three-Point Spring-Return Log Grapple is a tractor-mounted grapple designed for handling logs and other bulky material with a Category I three-point hitch. Its spring-centered grapple provides locking positions and 180° spring-return rotation, helping position the grapple for loading, carrying, and releasing material. With a 3,000 lb lift capacity, 9,400 lb clamp force, and a 3–48 in grapple opening, the LXG320S is suited to tractors rated from 25 to 65 hp. Hydraulic hoses and couplers are included for connection to the tractor’s hydraulic system.

Product Overview

The Wallenstein LXG320S combines a bypass grapple design with a cantilever cradle to help secure logs during handling. The grapple rotates through 180° and returns to center by spring action, while locking positions support controlled positioning during operation. Its Category I three-point mounting system is intended for compatible tractors in the recommended 25–65 hp range.

The grapple opening adjusts from 3 to 48 inches, allowing the attachment to accommodate a range of log sizes and material loads. The 3,000 lb lift capacity and 9,400 lb clamp force provide substantial handling capability, while the 350 lb attachment weight supports installation on appropriately matched tractors.

Key Features

• Wallenstein LXG320S three-point tractor-mounted log grapple
• 48 inch maximum grapple opening
• 3,000 lb lift capacity
• 9,400 lb clamp force
• 180° spring-return rotation
• Spring-centered grapple with locking positions
• Bypass grapple design
• Cantilever cradle
• Category I three-point mounting system
• Hydraulic hoses and couplers included

Specifications

Compatibility

The LXG320S is compatible with tractor-mounted Category I three-point hitches. It is recommended for tractors with 25–65 hp and requires a recommended hydraulic flow of 5 US gpm (19 L/min). Confirm that the tractor’s three-point hitch, hydraulic system, lifting capability, and operating configuration are suitable for the attachment before use.

Designed for Tractor-Based Material Handling

With its wide opening, spring-return rotation, hydraulic clamping, and three-point mounting system, the Wallenstein LXG320S is designed for tractor-based log handling applications where controlled gripping and positioning are required. The included hoses and couplers provide the hydraulic connection components specified for the model.
