GRAPPLE, 40" MINI BOB, SR

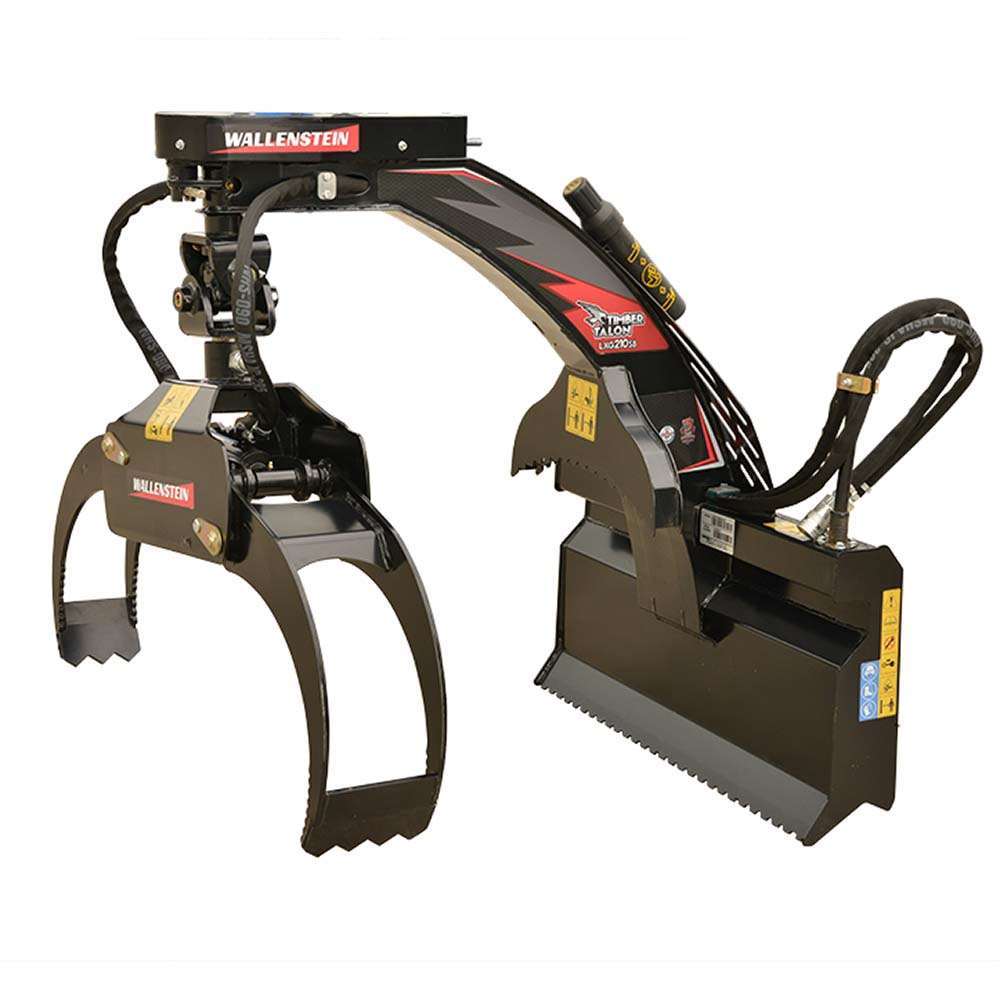

The Wallenstein LXG210SB Log Grapple is a 40-inch grapple attachment designed for mini skidsteers equipped with a Bobcat-style mounting plate. Built for log handling, it combines a bypass grapple design, a cantilever cradle, and 180° spring-centered rotation to help position the grapple during operation. With a 1,000 lb lift capacity, 9,400 lb clamp force, and a maximum grapple opening of 40 inches, the LXG210SB is suited to handling logs and other material within the capacity of the attachment and host machine. Hydraulic hoses and couplers are included for connection to a compatible mini skidsteer hydraulic system.

Wallenstein LXG210SB Features

• 40-inch maximum grapple opening: The grapple opens from 3 to 40 inches (8 to 102 cm) to accommodate a range of log sizes.
• 180° spring-centered rotation: The spring-return grapple rotates through 180° and returns toward center, helping the attachment stay aligned while positioning and handling logs.
• 1,000 lb lift capacity: Provides a rated lift capacity of 1,000 lb (454 kg).
• 9,400 lb clamp force: Delivers strong clamping force for securing material during handling.
• Bypass grapple design: The grapple configuration is intended for log-handling applications.
• Cantilever cradle: Supports the log-grapple design and helps contain material during handling.
• Locking positions: The spring-centered grapple includes locking positions for positioning flexibility.
• Hydraulic equipment included: Hydraulic hoses and couplers are supplied with the attachment.

Designed for Mini Skidsteer Log Handling

The LXG210SB is made for mini skidsteers using a Mini Skidsteer Plate (Bobcat) mounting system. Its 3 to 40-inch grapple opening provides flexibility for handling different log diameters, while the spring-centered rotation allows the grapple to twist when turning corners and stay straight when grabbing logs. The attachment is specified for machines with an engine power range of 12–50 hp and a recommended hydraulic flow of 3 gpm (11 lpm).

Installation and Hydraulic Requirements

This attachment uses a Bobcat-style mini skidsteer mounting plate and includes hydraulic hoses and couplers. Before installation, confirm that the mini skidsteer has the required mounting plate, hydraulic connections, and recommended hydraulic flow. The stated recommended hydraulic flow is 3 gpm (11 lpm).

Specifications

Compatibility

The Wallenstein LXG210SB is compatible with a mini skidsteer equipped with a Bobcat-style mounting plate. The host machine should have an engine power range of 12–50 hp and provide the recommended hydraulic flow of 3 gpm (11 lpm).
