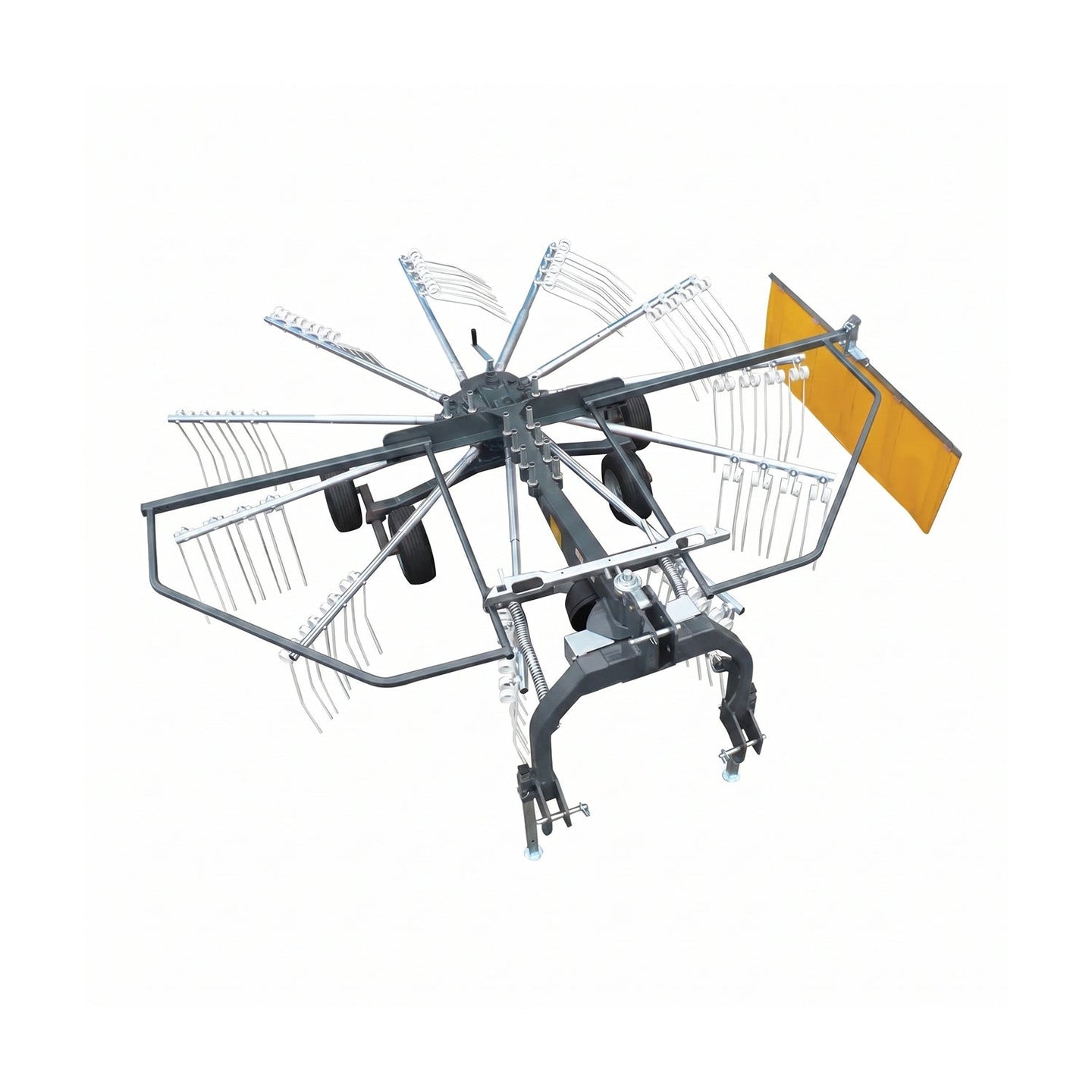

BRABER - Tandem 3-Point PTO Rotary Rake - 120" Working Width, Swath Curtain - 9 Arms, 880 lb, Up to 30 HP [BE-GR300DRTM]

BRABER BE-GR300DRTM Tandem 3-Point PTO Rotary Rake is a heavy-duty rotary rake designed for tractors up to 30 HP. With a 120-inch working width, nine rotating arms, and three double tines per arm, it provides broad coverage for efficient raking applications. The tandem wheel configuration helps the rake follow the ground, while the adjustable swath curtain supports controlled material placement. A Category 1 & 2 three-point hitch, 540 RPM PTO drive, manual height adjustment, and compact 52-inch transport width make this rake suitable for compatible compact and utility tractor setups.

Efficient Coverage for Raking Applications

The BE-GR300DRTM combines a wide 120-inch working width with nine arms and three double tines per arm. This configuration is designed to provide thorough coverage across the working area while maintaining a practical setup for tractors up to 30 HP. The 540 RPM PTO drive powers the rotary rake, and radial pin clutch protection helps protect the PTO drive system during operation.

For transport and storage, the rake measures 52 inches in transport width. Its tandem wheel configuration supports ground following during use, while the manual height adjustment allows the operating position to be set for the intended working conditions. The adjustable swath curtain provides additional control over the resulting swath.

Key Features

• 120-inch working width for broad coverage
• Designed for tractors up to 30 HP
• Category 1 & 2 three-point hitch compatibility
• 540 RPM PTO drive
• Radial pin clutch protection
• Nine rotating arms
• Three double tines per arm
• Tandem ground-following wheels
• Adjustable swath curtain
• Manual height adjustment
• Heavy-duty frame with steel guards
• 52-inch compact transport width
• 880 lb operating weight

Built for Practical Field Operation

The heavy-duty frame and steel guards provide a robust foundation for regular use. The trailed setup and tandem wheel arrangement support stable operation behind a compatible three-point tractor. Together with the manual height adjustment and adjustable swath curtain, these features provide practical control over rake positioning and swath formation.

Tractor Requirements and Compatibility

The BRABER BE-GR300DRTM is designed for tractors up to 30 HP and mounts to Category 1 & 2 three-point hitches. The tractor must provide a 540 RPM PTO to operate the rake. Confirm that the tractor’s three-point hitch, PTO, and rated power are compatible before operation.

Specifications
