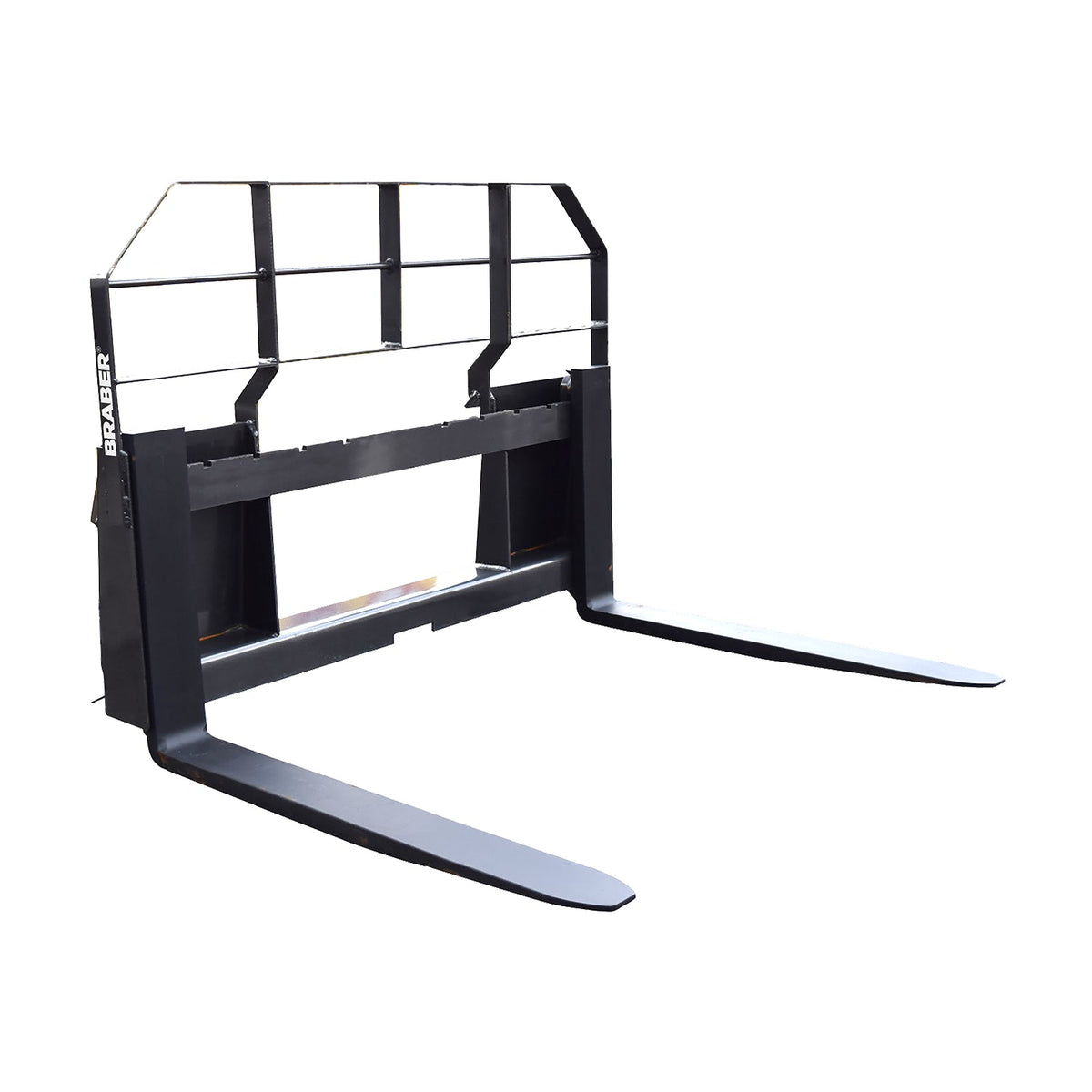

BRABER - Skid Steer Pallet Forks - 48" Fork Tines Included - 5,500 lb Capacity, Heavy-Duty Frame - Loader Material Handling [BE-HD5548BO500]

The BRABER BE-HD5548BO500 Skid Steer Pallet Forks are a heavy-duty material-handling attachment designed for compact track loaders and skid steers equipped with a compatible universal quick-attach interface. With a maximum rated capacity of 5,500 lb, included 48 in. Class II forged steel fork tines, and a wide 50 in. locking carriage, this professional-grade pallet fork setup is built for moving pallets, bundled materials, equipment, and other loads with a compatible loader. Sliding tines lock into position anywhere along the carriage, helping operators adjust the fork spacing for different load sizes and handling requirements.

Heavy-Duty Pallet Handling for Skid Steers

The BE-HD5548BO500 combines a robust frame with solid hook-type forged steel forks for demanding loader material-handling applications. Its 5,500 lb rated capacity provides substantial lifting capability when used with equipment and loads within the attachment’s operating requirements. The extra-wide 50 in. locking carriage supports adjustable tine positioning while providing a stable attachment interface for pallet and material movement.

The included 48 in. fork tines feature a 1-1/2 in. thick by 5 in. wide section and are built to Class II specifications. Their sliding design allows the tines to be positioned and locked along the carriage, making it easier to adapt the attachment to varying pallet widths and load configurations. A heavy-duty safety guard is included to help protect the operator and loader during material-handling work.

Key Features

• 5,500 lb maximum rated capacity
• 48 in. heavy-duty fork tines included
• 50 in. extra-wide locking carriage
• Class II solid hook-type forged steel forks
• Fork tine dimensions: 1-1/2 in. thick x 5 in. wide
• Sliding tines adjust and lock in any position along the carriage
• Heavy-duty operator and loader safety guard included
• Universal skid steer quick-attach mounting
• Mechanically operated attachment with no complex hydraulic systems stated

Built for Versatile Loader Material Handling

This BRABER pallet fork attachment is suited to material-handling tasks where a skid steer or compact track loader needs a practical alternative to a bucket. The adjustable fork layout can accommodate different load widths, while the 48 in. tine length provides reach for palletized materials and other loads supported by the forks. The universal skid steer mount is intended for equipment fitted with a compatible standardized quick-attach interface.

Specifications

Compatibility and Mounting

The BE-HD5548BO500 is designed for compact track loaders and skid steers equipped with a compatible universal quick-attach interface. Confirm that the loader’s attachment interface is compatible with the universal skid steer mount before purchase and use.
