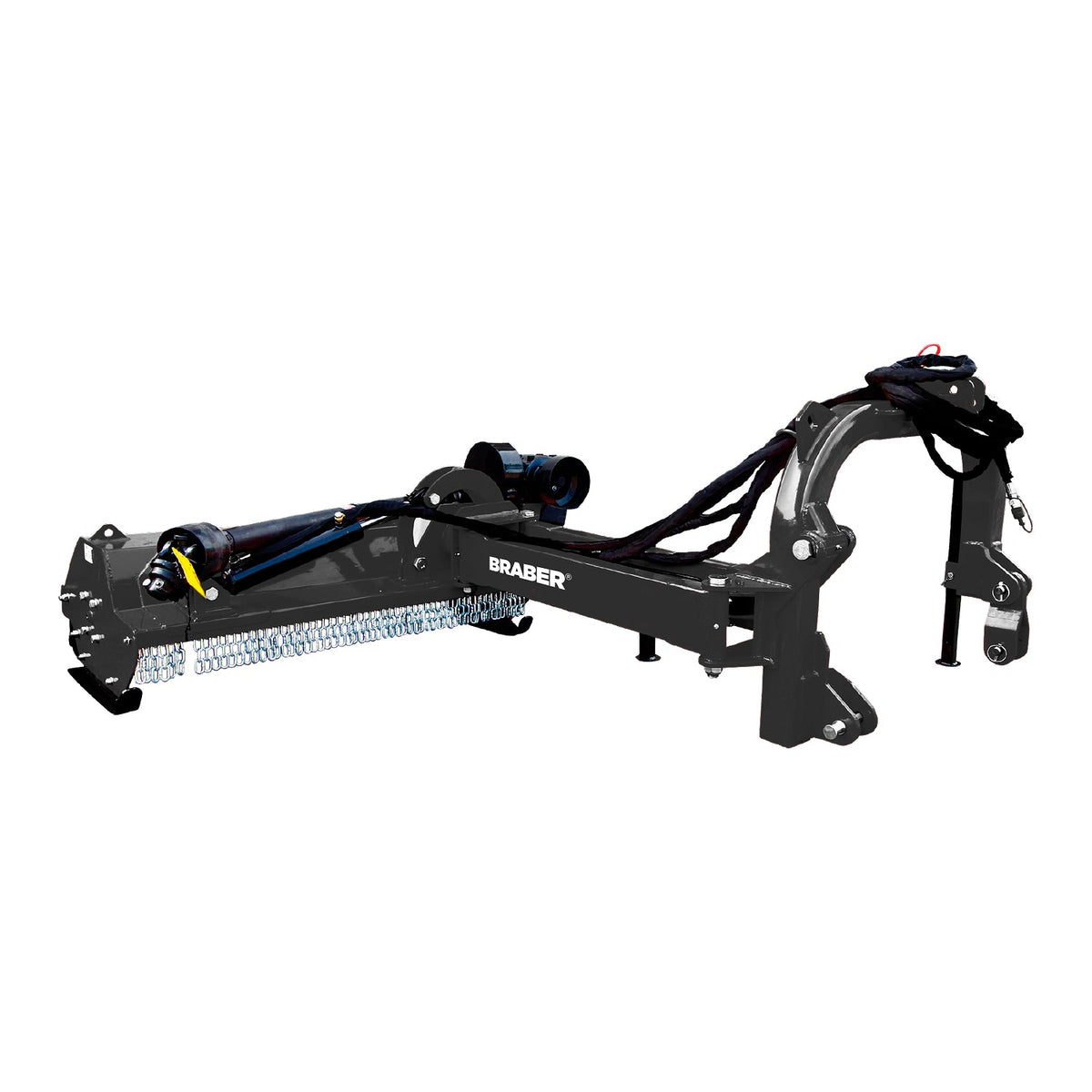

BRABER - GIRAFFAS120 47" 3-Point PTO Boom Mower - Internal Gearbox - Professional Offset Mowing System [MAS-GIRAFFAS120]

BRABER MAS-GIRAFFAS120 GIRAFFA 3-Point PTO Boom Flail Mower is a professional offset mowing system designed for tractors rated from 15 to 35 PTO horsepower. This internal-gearbox mower combines a 45-inch working width with hydraulic side and incline offset, allowing the cutting head to be positioned for practical mowing across shoulders, banks, inclines, and hard-to-reach areas. Its Category 1 three-point hitch, 540 RPM PTO, standard hammer flails, full-width rear roller, front safety shields, and skid shoes provide a capable configuration for maintaining vegetation and cutting material up to 3/4 inch, dependent on tractor horsepower and material density.

Professional Offset Mowing Performance

The MAS-GIRAFFAS120 uses a hydraulic system for side or incline offset, with a mowing angle range from -65° to +90°. This positioning capability helps the mower follow varied terrain and reach beyond the tractor’s direct path. The mower is driven through a 540 RPM PTO and features an internal gearbox with integrated freewheel. A side belt drive transfers power to the cutting system, while the full-width rear roller helps support the mower during operation.

For routine vegetation maintenance, the mower is equipped with 24 standard hammer flails. Optional grass knives are also available as a configuration option, with 48 optional grass knives specified for this model. Front safety shields and skid shoes are included among the mower’s design features.

Key Features

• Internal gearbox configuration
• 120 SI configuration identification
• 45-inch working width
• Hydraulic side and incline offset system
• Mowing angle from -65° to +90°
• Category 1 three-point hitch
• 540 RPM PTO with integrated freewheel
• Standard PTO yoke and constant-velocity PTO driveline
• Side belt drive
• Full-width rear roller
• Front safety shields and skid shoes
• 24 standard hammer flails
• 48 optional grass knives
• Cutting capacity up to 3/4 inch, dependent on tractor horsepower and material density

Tractor Compatibility and Requirements

The BRABER MAS-GIRAFFAS120 is intended for tractors rated from 15 to 35 PTO horsepower. The tractor must have a Category 1 three-point hitch, a 540 RPM PTO, and four hydraulic ports to operate the hydraulic side and incline offset system.

Confirm that the tractor meets the stated PTO horsepower, hitch, PTO speed, and hydraulic-port requirements before operation. Cutting performance and the stated maximum material capacity depend on tractor horsepower and material density.

Specifications
