BRABER - GIRAFFA210SE 83" 3-Point PTO Boom Mower - External Gearbox - Professional Offset Mowing System [MAS-GIRAFFA210SE]

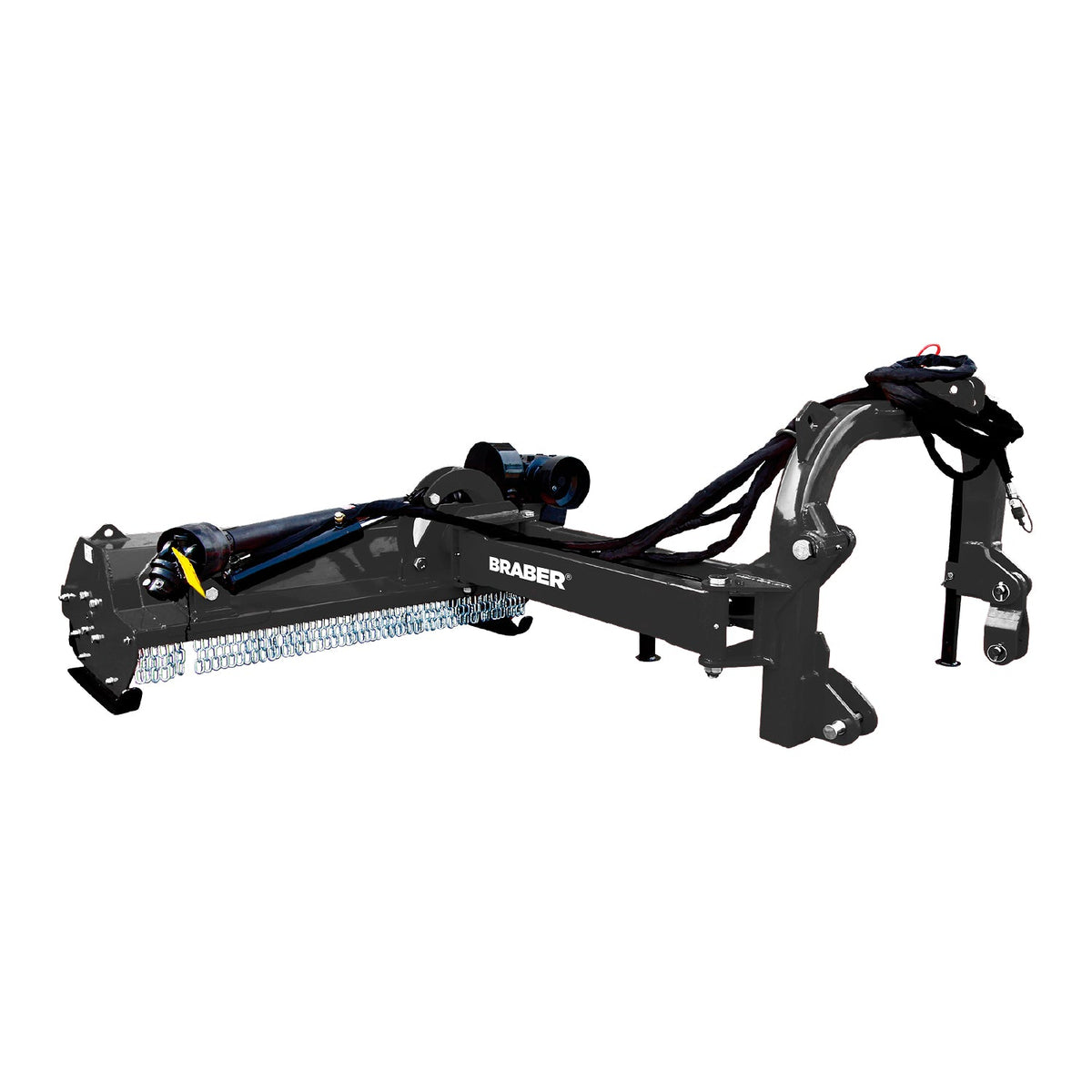

The BRABER MAS-GIRAFFA210SE Giraffa210SE 3-Point PTO Boom Flail Mower is an offset mowing system designed for tractors in the 70–110 HP range. With an 83-inch cutting width, hydraulic side and incline offset, an adjustable three-point hitch, and a side-mounted external gearbox, it is suited to ditch mowing and other applications where controlled positioning is important. The mower uses 30 standard hammer blades, four drive belts, a full-width roller, counter-blades, skid shoes, and front safety shields to support consistent cutting performance across a wide working area.

Professional Offset Mowing Performance

The Giraffa210SE combines a 2.1 m cutting width with hydraulic positioning for flexible operation alongside the tractor or at an incline. Its hydraulic system provides side or incline offset, allowing the mower to be positioned for ditch and offset mowing work when connected to a tractor with hydraulic ports. The adjustable Cat. 2 and 3 three-point hitch supports compatibility with suitable tractors within the specified horsepower range.

A side-mounted external gearbox transfers drive to the cutting system, while four drive belts support the mower’s operating system. The full-width roller helps support the mower across the working surface, and the mowing angle can be adjusted from -65° to +90°. The unit is rated for cutting material up to 1.5 inches thick, subject to tractor horsepower and material density.

Key Features

• 83-inch cutting width; catalogue nominal width listed as 84 inches
• 2.1 m offset boom flail mower configuration
• Hydraulic side and incline offset for positioning in ditches and offset mowing applications
• Adjustable three-point hitch with Cat. 2 and Cat. 3 compatibility
• Side-mounted external gearbox
• 30 standard hammer blades
• Four drive belts
• Full-width roller for mower support
• Upper toothed counter-blades and lower counter-blades
• Skid shoes and front safety shields
• Standard PTO yoke
• Optional grass flails available
• Mowing angle range from -65° to +90°
• Rated for cutting material up to 1.5 inches thick, depending on tractor horsepower and material density

Tractor Requirements and Compatibility

The BRABER MAS-GIRAFFA210SE requires a tractor rated from 70 to 110 HP and operates at a 540 rpm PTO speed. The tractor must have a compatible three-point hitch and hydraulic ports. The mower is compatible with Cat. 2 and Cat. 3 three-point hitch systems. Confirm that the tractor’s lift capacity, hitch configuration, PTO speed, and hydraulic connections are suitable for the mower’s 1,364 lb operating weight before use.

Specifications

Designed for Offset and Ditch Mowing

With its hydraulic offset system, broad cutting width, adjustable hitch, and dedicated flail-mower components, the BRABER Giraffa210SE provides a practical solution for operators who need to mow beyond the tractor’s direct path or work across inclined surfaces. Its combination of hammer blades, counter-blades, roller, skid shoes, and safety shields supports a controlled mowing setup for compatible tractors.
