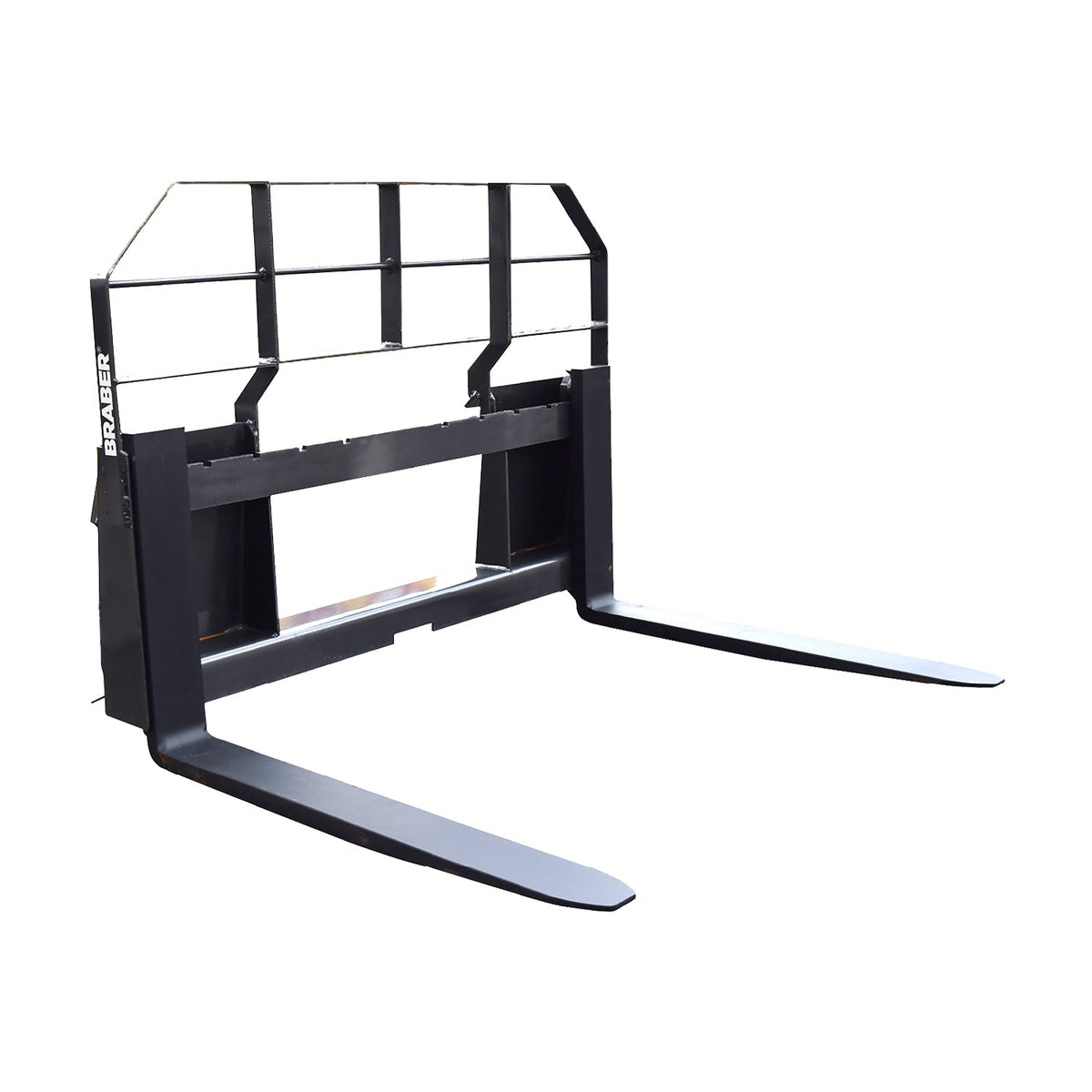

BRABER - Euro/ALO Pallet Forks - 48" Fork Tines Included - 5,500 lb Capacity, Heavy-Duty Frame - Loader Material Handling [BE-HD5548AO600]

BRABER BE-HD5548AO600 Euro/ALO Heavy-Duty Pallet Forks are designed for loader material-handling applications that require substantial lifting capacity, durable fork construction, and flexible load positioning. This pallet fork attachment features a Euro (Global) loader quick-attach interface, 48-inch fork tines, a 5,500 lb maximum rated capacity, and a 50-inch locking carriage. Sliding tines lock in any position along the carriage, allowing the fork spacing to be adjusted for different pallet and load configurations. A heavy-duty safety guard is included to help separate the operator area from the carried load.

Heavy-Duty Loader Material Handling

The BE-HD5548AO600 combines a robust carriage with Class II solid hook-type forged steel fork tines measuring 1-1/2 inches by 5 inches. The 48-inch tine length provides the reach specified for this model, while the 50-inch carriage supports adjustable tine placement across the attachment. With a maximum capacity of 5,500 lb, these pallet forks are suited to demanding loader material-handling tasks within the limits of the loader and attachment setup.

The Euro/ALO mounting design is intended for loaders equipped with a Euro (Global) quick-attach interface. Confirm that the loader uses this mounting standard and that its operating capacity is suitable for the intended load before use. The attachment weighs 556 lb, which should be considered when determining the loader’s available lifting capacity.

Key Features

• BRABER BE-HD5548AO600 heavy-duty loader pallet forks
• Euro (Global) loader quick-attach compatibility
• 5,500 lb maximum rated capacity
• 48-inch fork tines included
• 50-inch locking carriage
• Sliding tines lock in any position along the carriage
• Class II solid hook-type forged steel fork tines
• Fork tine dimensions of 1-1/2 inches by 5 inches
• Heavy-duty safety guard included
• 556 lb product weight

Adjustable Fork Positioning

The sliding tine design lets operators position the forks as needed along the carriage rather than being limited to fixed tine locations. This infinite-position adjustment supports practical handling of loads with different pallet widths and support-point requirements. Once positioned, the tines lock along the 50-inch carriage for the selected configuration.

Euro/ALO Compatibility

This attachment uses a Euro (Global) mount and is compatible with loaders featuring the corresponding Euro loader quick-attach interface. Compatibility is based on the loader’s mounting standard. Before operating, verify that the loader is equipped with a Euro (Global) quick-attach connection and can safely accommodate the attachment’s 556 lb weight and the intended carried load.

Specifications
