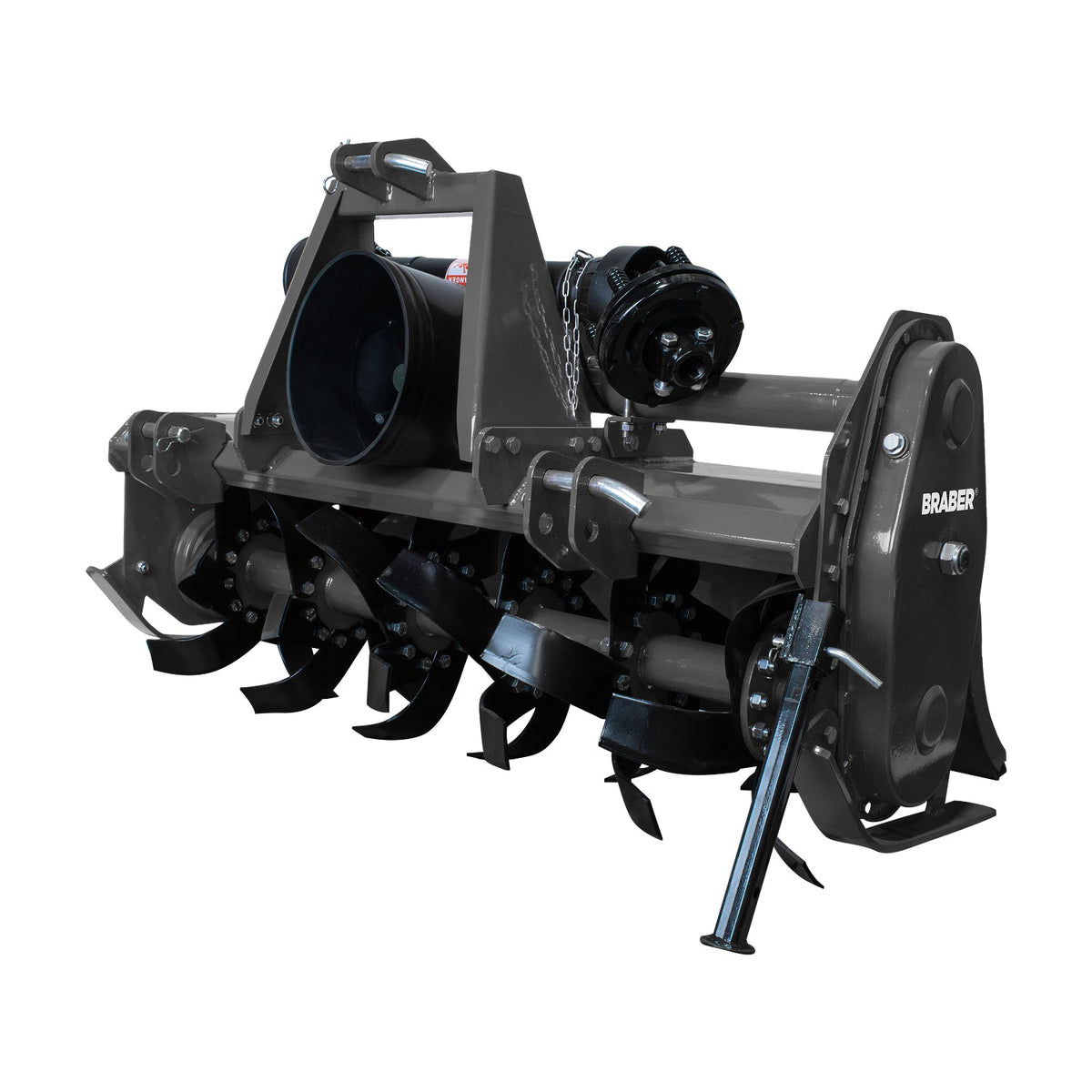

BRABER - C300 121" Heavy-Duty 3-Point PTO Rotary Tiller - Professional Agricultural Tillage - Soil Preparation & Tillage [MAS-C300]

BRABER MAS-C300 C Series Heavy-Duty PTO Rotary Tiller is a professional agricultural tillage implement designed for demanding soil preparation and field cultivation. With a 122-inch tilling width, heavy-duty gear drive, 72 blades, and an 11-inch working depth, this three-point rotary tiller is built for tractors rated from 100 to 130 PTO horsepower. Its Category 2 or 3 three-point hitch, multi-speed gearbox, floating tailgate, adjustable linkages, and compatibility with both 540 and 1,000 RPM PTO systems provide practical versatility for large-scale tillage operations.

Professional Tillage Performance

The MAS-C300 is a heavy-duty three-point PTO rotary tiller for agricultural applications requiring broad coverage and substantial working depth. Its 122-inch tilling width supports efficient soil preparation across large working areas, while the 72-blade configuration and six C-shaped tines per flange provide the specified cutting arrangement for powered tillage. The tiller is rated for tractors delivering 100 to 130 PTO horsepower and is compatible with Category 2 or Category 3 three-point hitches.

A heavy-duty gear drive and multi-speed gearbox support the implement’s professional-duty configuration. The MAS-C300 can operate with either 540 or 1,000 RPM PTO systems, helping accommodate tractors with different supported PTO speed configurations. The floating tailgate, adjustable linkages, and parking stand contribute to practical setup and handling during field use, transport, and storage.

Key Features

• Heavy-duty BRABER C Series rotary tiller for professional agricultural tillage
• 122-inch tilling width for broad field coverage
• 11-inch working depth
• 72 blades arranged with six C-shaped tines per flange
• Heavy-duty gear drive and multi-speed gearbox
• 540 and 1,000 RPM PTO capability
• Category 2 or 3 three-point hitch compatibility
• Floating tailgate for controlled rear finishing
• Adjustable linkages for implement setup
• Slip-clutch PTO yoke
• Parking stand for convenient implement support
• L-shaped tines available

Specifications

Compatibility and Tractor Requirements

The BRABER MAS-C300 requires a tractor rated from 100 to 130 PTO horsepower and equipped with a Category 2 or Category 3 three-point hitch. The tractor must provide a supported 540 or 1,000 RPM PTO system. Confirm that the tractor’s hitch category, PTO configuration, and available PTO horsepower match these requirements before operation.

The MAS-C300 is the standard C Series heavy-duty rotary tiller configuration. The MAS-C300WR is a separate variant with an added roller and is not included with this product.
