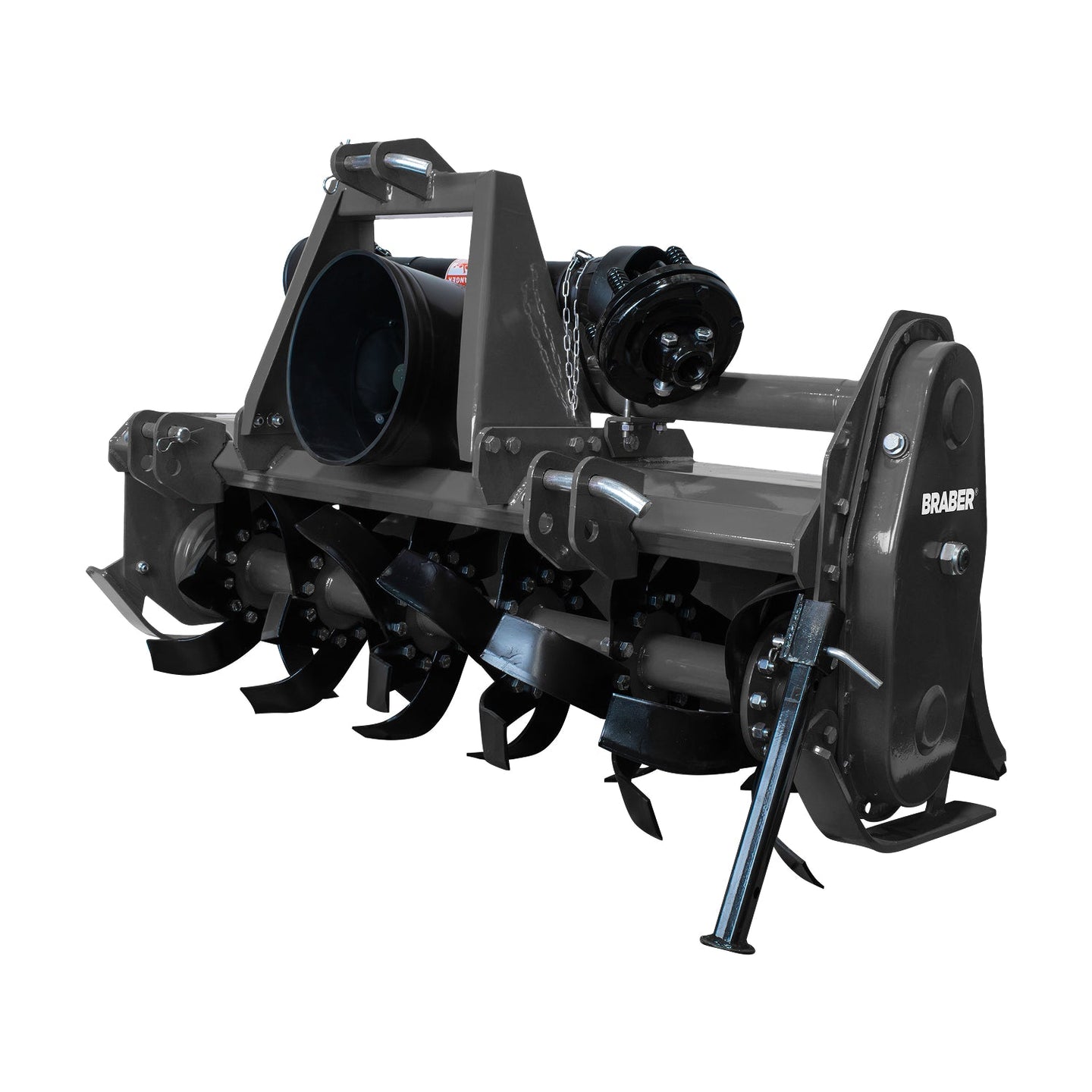

BRABER - C300 121" Heavy-Duty 3-Point PTO Rotary Tiller - Cage Roller Included - Professional Agricultural Tillage [MAS-C300WR]

The BRABER / Maschio MAS-C300WR C Series Heavy-Duty 3-Point PTO Rotary Tiller is a professional agricultural tillage implement designed for tractors rated from 100 to 130 PTO horsepower. With a verified 122-inch tilling width, heavy-duty gear drive, 72 blades, and an included rear cage roller, this rotary tiller is built for broad-acre soil preparation, seedbed creation, and demanding farm utility work. The WR configuration adds the rear cage roller for finishing and surface consolidation, while the Cat 2 three-point hitch, adjustable linkages, floating tailgate, parking stand, and slip-clutch PTO yoke support practical operation in the field.

Professional Tillage Performance

The MAS-C300WR is part of the C Series heavy-duty farm utility rotary tiller range. Its 122-inch working width allows efficient coverage across large areas, while the 11-inch working depth supports thorough soil cultivation. The tiller uses a heavy-duty gear drive and is equipped with six C-shaped tines per flange, providing the specified blade configuration for agricultural tillage applications. L-shaped tines are also available separately.

A multi-speed gearbox is specified for 540 and 1,000 RPM operation, with the supplied product specifications identifying a 540 RPM PTO. The included slip-clutch PTO yoke provides the specified PTO connection and protection feature for the rotary tiller drivetrain. Always operate the implement with a compatible tractor and within the specified PTO power range.

WR Model with Rear Cage Roller

The WR variant includes an added rear cage roller. Positioned behind the tiller, the cage roller supports the finishing function of the implement after the soil has been worked. The floating tailgate and adjustable linkages further contribute to the tiller’s specified operating configuration, while the parking stand helps support implement storage when the tiller is detached from the tractor.

Key Features

• BRABER / Maschio C Series heavy-duty farm utility rotary tiller
• MAS-C300WR manufacturer part number
• 122-inch verified tilling width
• 127-inch total and transport width
• Rear cage roller included on the WR model
• Heavy-duty gear drive
• 11-inch working depth
• 72 blades with six C-shaped tines per flange
• L-shaped tines available separately
• Floating tailgate and adjustable linkages
• Parking stand
• Slip-clutch PTO yoke
• Multi-speed gearbox specified for 540 and 1,000 RPM

Specifications

Tractor Requirements and Compatibility

The MAS-C300WR is designed for tractors equipped with a Category 2 three-point hitch and a recommended PTO power range of 100–130 hp. The tractor must provide the specified PTO operating speed and be suitable for the tiller’s 2,332-pound operating weight and 127-inch transport width. Confirm tractor compatibility, lifting capacity, hitch configuration, and PTO requirements before use.
