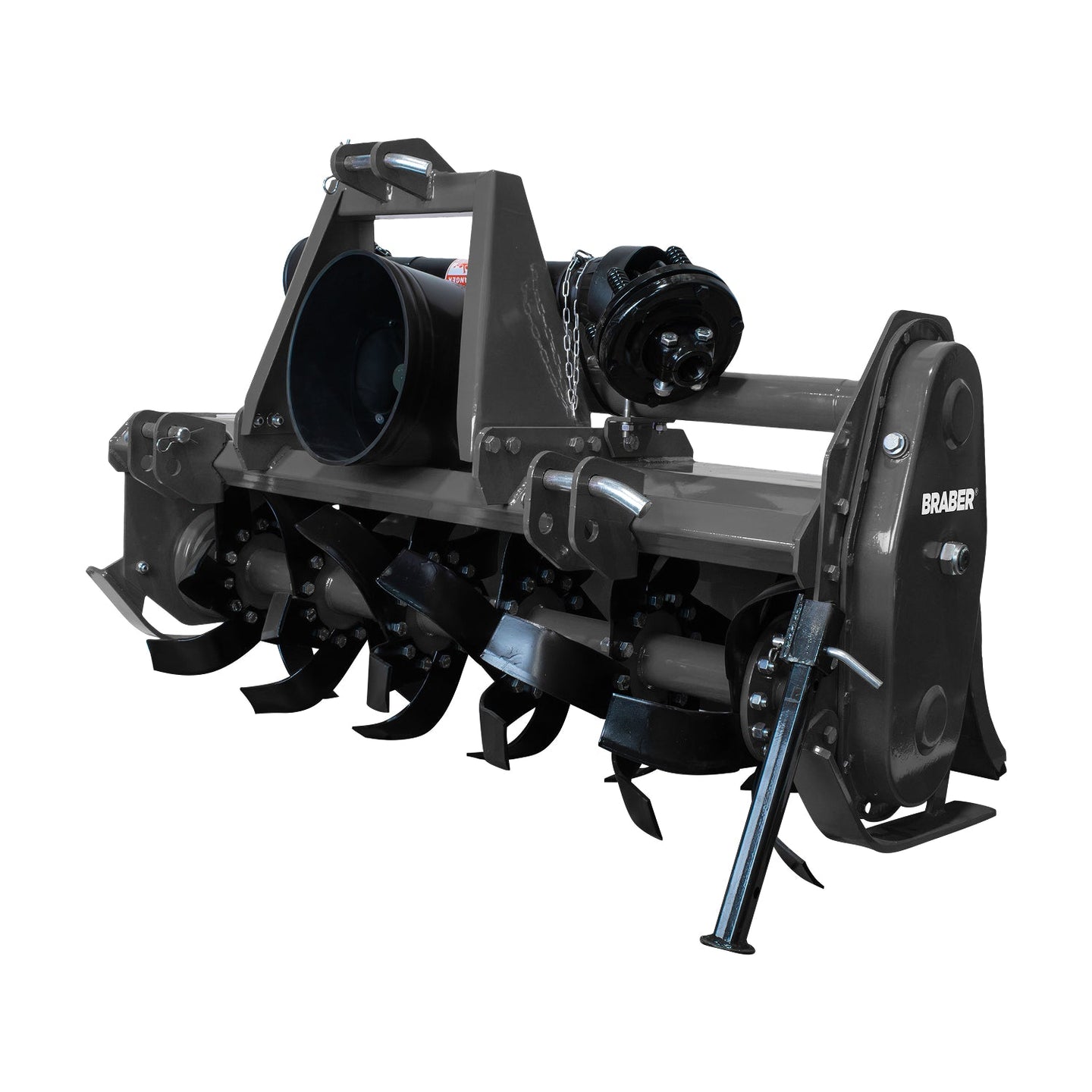

BRABER - C250 102" Heavy-Duty 3-Point PTO Rotary Tiller - Professional Agricultural Tillage - Soil Preparation & Tillage [MAS-C250]

BRABER MAS-C250 C250 102" Heavy-Duty 3-Point PTO Rotary Tiller is a professional agricultural tillage attachment built for demanding soil preparation and cultivation work. With a 102-inch tilling width, heavy-duty gear drive, 60 blades, and an 11-inch working depth, this rotary tiller is designed to break up and work soil efficiently across broad planting areas. Its multi-speed gearbox supports both 540 and 1,000 RPM PTO operation, while the Category 2 three-point hitch makes it suitable for compatible tractors rated from 80–130 hp. A floating tailgate, adjustable linkages, parking stand, and slip-clutch PTO yoke support practical operation in field and transport applications.

Heavy-Duty Soil Preparation

The MAS-C250 provides a wide 102-inch working path for efficient tillage and seedbed preparation. Its 60-blade configuration uses six C-shaped tines per flange to engage the soil across the full working width. The tiller can work to a depth of up to 11 inches, making it suited to agricultural soil cultivation where substantial ground engagement is required.

A heavy-duty gear drive supports the rotary tiller’s operating system, while the multi-speed gearbox accommodates tractors using either 540 or 1,000 RPM PTO operation. The slip-clutch PTO yoke provides PTO protection, and the floating tailgate follows changing soil conditions while helping manage the tilling finish behind the machine.

Key Features

• 102-inch tilling width for broad-area soil preparation
• Heavy-duty C250 rotary tiller design for agricultural tillage
• 60 blades with six C-shaped tines per flange
• 11-inch working depth
• Multi-speed gearbox supporting 540 and 1,000 RPM PTO operation
• Heavy-duty gear drive
• Floating tailgate
• Slip-clutch PTO yoke for PTO protection
• Adjustable linkages for three-point attachment setup
• Parking stand for convenient storage and attachment handling
• L-shaped tines available separately
• Optional rear rollers available

Tractor Compatibility and Requirements

The BRABER MAS-C250 is specified for tractors rated from 80–130 hp and requires a Category 2 three-point hitch. The tractor must also provide a compatible PTO operating speed of either 540 or 1,000 RPM, as supported by the tiller’s multi-speed gearbox. Confirm that the tractor’s three-point hitch capacity is suitable for the tiller’s 1,780-pound weight before operation.

Applications

This heavy-duty rotary tiller is intended for professional agricultural tillage, soil preparation, and cultivation tasks. Its wide working width and substantial working depth make it suitable for preparing larger areas of soil, while the floating tailgate and available rear roller option provide configuration choices for different tillage setups. The parking stand supports storage when the attachment is disconnected from the tractor.

Specifications
