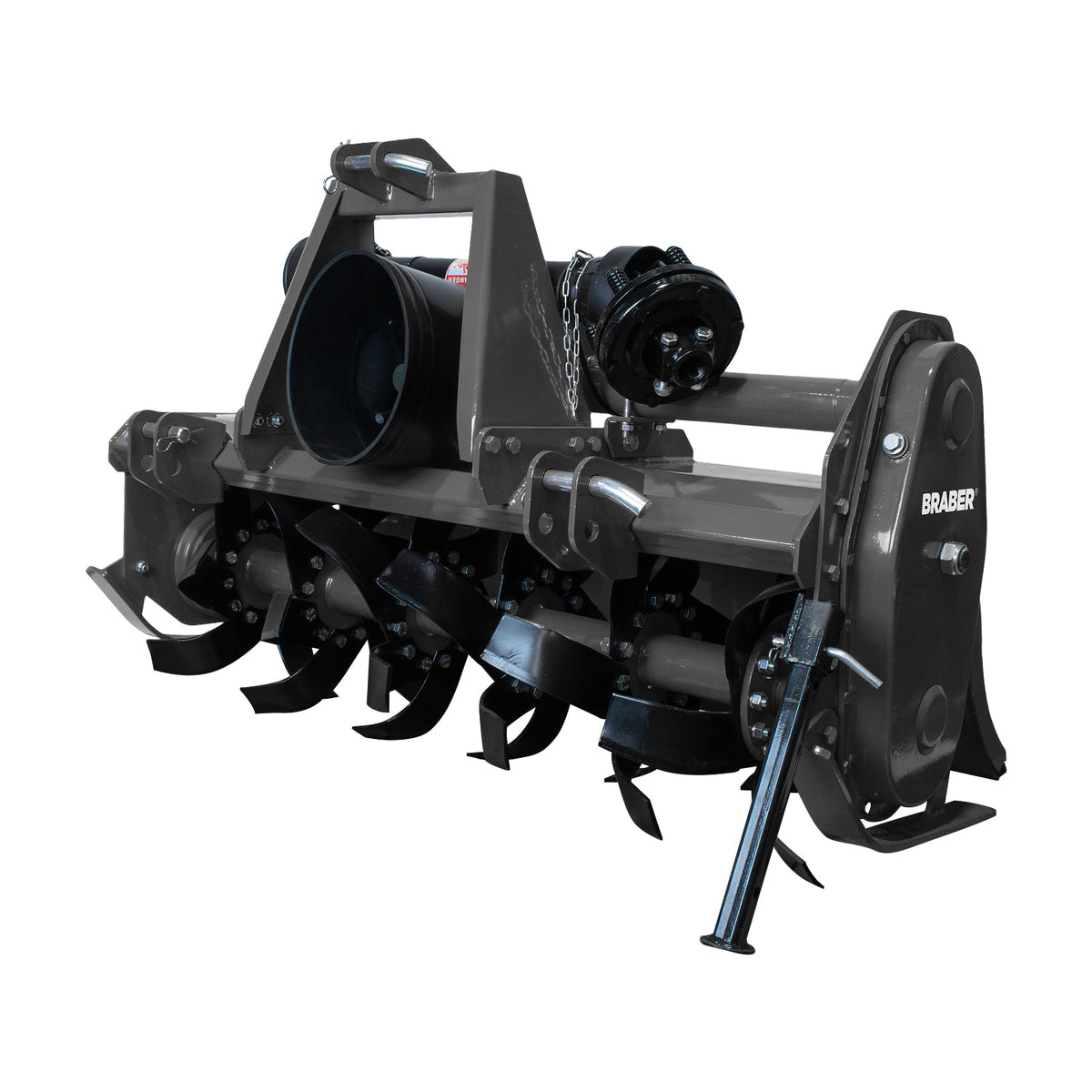

BRABER - C250 102" Heavy-Duty 3-Point PTO Rotary Tiller - Cage Roller Included - Professional Agricultural Tillage [MAS-C250WR]

The BRABER MAS-C250WR C250 102-inch Heavy-Duty 3-Point PTO Rotary Tiller is a professional agricultural tillage implement designed for tractors rated from 80 to 130 PTO horsepower. Its 102-inch tilling width provides broad field coverage, while the included cage roller helps complete the working configuration. Built with a heavy-duty gear drive, a multi-speed gearbox with 540 and 1,000 RPM PTO settings, 60 blades, and a working depth of up to 11 inches, the MAS-C250WR is suited to demanding soil-preparation applications. A Category 2 three-point hitch, slip-clutch PTO yoke, floating tailgate, parking stand, and adjustable linkages support practical operation and setup in the field.

Heavy-Duty Tillage Performance

The C250 series rotary tiller is built for substantial agricultural tillage work. The MAS-C250WR combines a 102-inch tilling width with a heavy-duty gear-drive system and 60 blades for efficient soil cultivation across large working areas. Its 11-inch working depth supports deep tillage applications where suitable soil and operating conditions allow.

The included cage roller identifies this model as the WR variant and provides the specified rear roller configuration as part of the tiller package. The floating tailgate and adjustable linkages contribute to flexible implement setup, while the parking stand supports convenient storage when the tiller is detached from the tractor.

Key Features

• 102-inch tilling width for broad coverage
• Cage roller included
• Category 2 three-point hitch
• Designed for tractors rated from 80 to 130 PTO horsepower
• Multi-speed gearbox with 540 and 1,000 RPM PTO settings
• Heavy-duty gear drive
• 11-inch working depth
• 60 blades
• 6 C-shaped tines per flange
• Floating tailgate
• Adjustable linkages
• Slip-clutch PTO yoke
• Parking stand
• L-shaped tines available separately
• Optional rear rollers available

Designed for Tractor-Mounted Operation

The MAS-C250WR connects through a Category 2 three-point hitch and is intended for tractors with an 80–130 PTO horsepower rating. Before operation, confirm that the tractor’s hitch category, PTO configuration, and available horsepower are appropriate for the implement. The gearbox supports both 540 and 1,000 RPM PTO operation; select the setting that matches the tractor and the operating requirements.

The slip-clutch PTO yoke is part of the driveline configuration. Adjustable linkages help with implement positioning and setup, while the tiller’s 108-inch total width should be considered when planning transport, storage, and access through working areas.

Specifications
