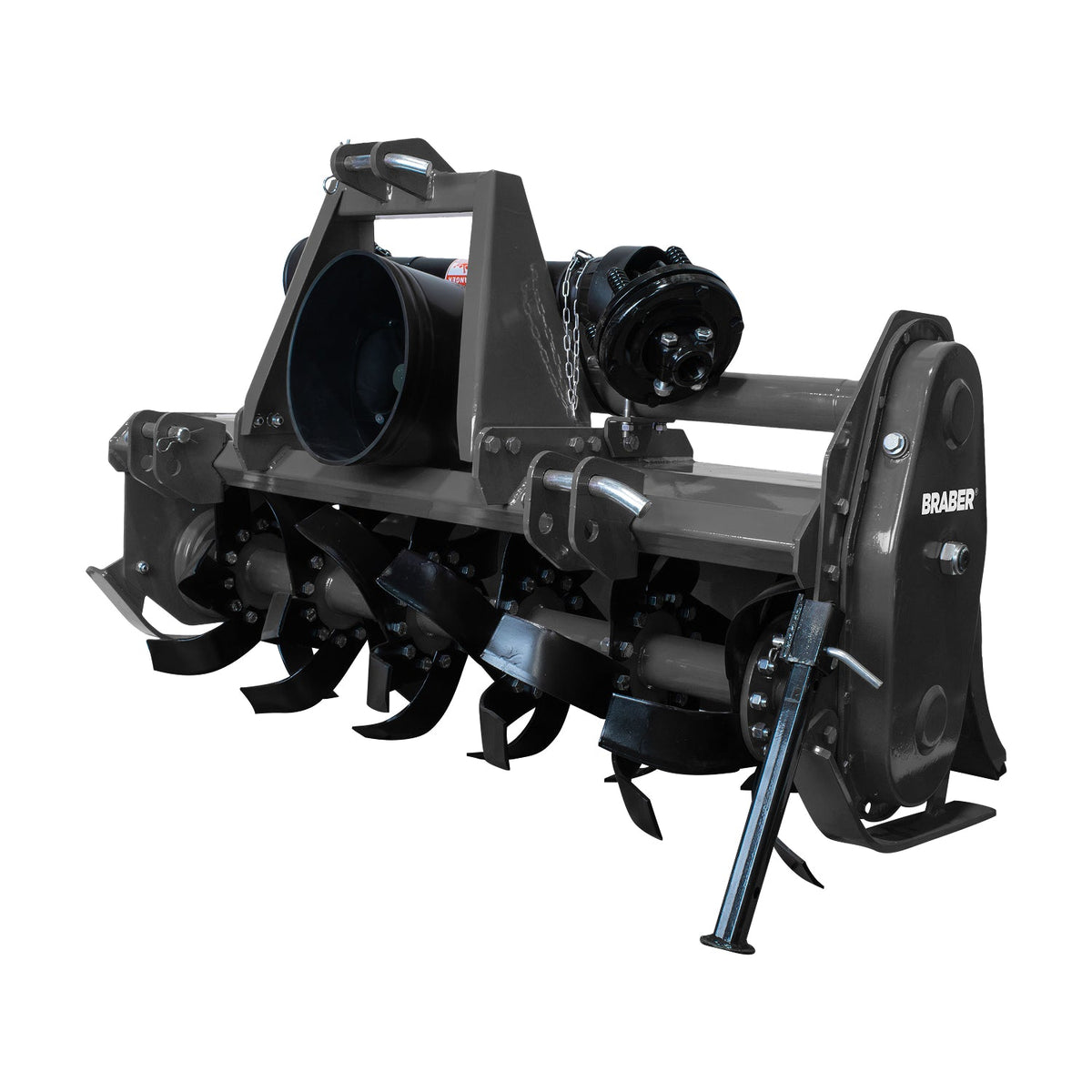

BRABER - C205 82" Heavy-Duty 3-Point PTO Rotary Tiller - Professional Agricultural Tillage - Soil Preparation & Tillage [MAS-C205]

BRABER MAS-C205 82" Heavy-Duty 3-Point PTO Rotary Tiller is a professional agricultural tillage implement designed for tractors rated from 60 to 130 horsepower. Built for demanding soil preparation and cultivation work, this C Series rotary tiller combines heavy-duty gear drive construction with a multi-speed gearbox supporting both 540 and 1,000 RPM PTO operation. Its 82-inch working width, 48-blade rotor, floating tailgate, and adjustable linkages help prepare seedbeds and break up soil across broad working areas, while the Category 2 three-point hitch provides tractor-mounted operation for compatible agricultural tractors.

Professional Soil Preparation and Tillage

The MAS-C205 is designed to support efficient field preparation, seedbed conditioning, and general agricultural tillage. Its 48 blades are arranged with six C-shaped tines per flange to provide effective soil engagement across the full 82-inch tilling width. With a verified working depth of up to 11 inches, the tiller is suited to substantial soil cultivation where deeper tillage and thorough soil breakup are required.

A heavy-duty gear drive supports demanding agricultural use, while the multi-speed PTO gearbox accommodates tractors operating with either 540 or 1,000 RPM PTO output. The slip-clutch PTO yoke helps support driveline protection during operation. Adjustable linkages allow setup adjustment when mounting the implement to a compatible tractor, and the parking stand supports convenient storage when the tiller is not attached.

Key Features

• Heavy-duty gear drive for professional agricultural tillage
• 82-inch working width for broad soil coverage
• 48-blade rotor with six C-shaped tines per flange
• Working depth of up to 11 inches
• Multi-speed gearbox supports 540 and 1,000 RPM PTO operation
• Slip-clutch PTO yoke
• Floating tailgate for controlled soil finishing
• Adjustable linkages for implement setup
• Parking stand for storage and handling
• L-shaped tines available separately
• Optional rear rollers available

Tractor Compatibility and Requirements

The BRABER MAS-C205 is intended for tractors rated from 60 to 130 horsepower and equipped with a Category 2 three-point hitch. The tractor must provide PTO operation compatible with the tiller’s gearbox, which supports both 540 and 1,000 RPM operation. Confirm that the tractor’s horsepower rating, hitch category, PTO configuration, and lifting capacity are suitable for this 1,562-pound implement before use.

Specifications

Built for Demanding Agricultural Work

With its wide working path, deep tilling capability, heavy-duty gear drive, and flexible PTO gearbox range, the BRABER MAS-C205 is built for operators who need a robust tractor-mounted solution for soil preparation and tillage. The floating tailgate, adjustable linkages, parking stand, and available tine and roller options provide practical equipment flexibility for professional agricultural applications.
