BRABER - C205 82" Heavy-Duty 3-Point PTO Rotary Tiller - Cage Roller Included - Professional Agricultural Tillage [MAS-C205WR]

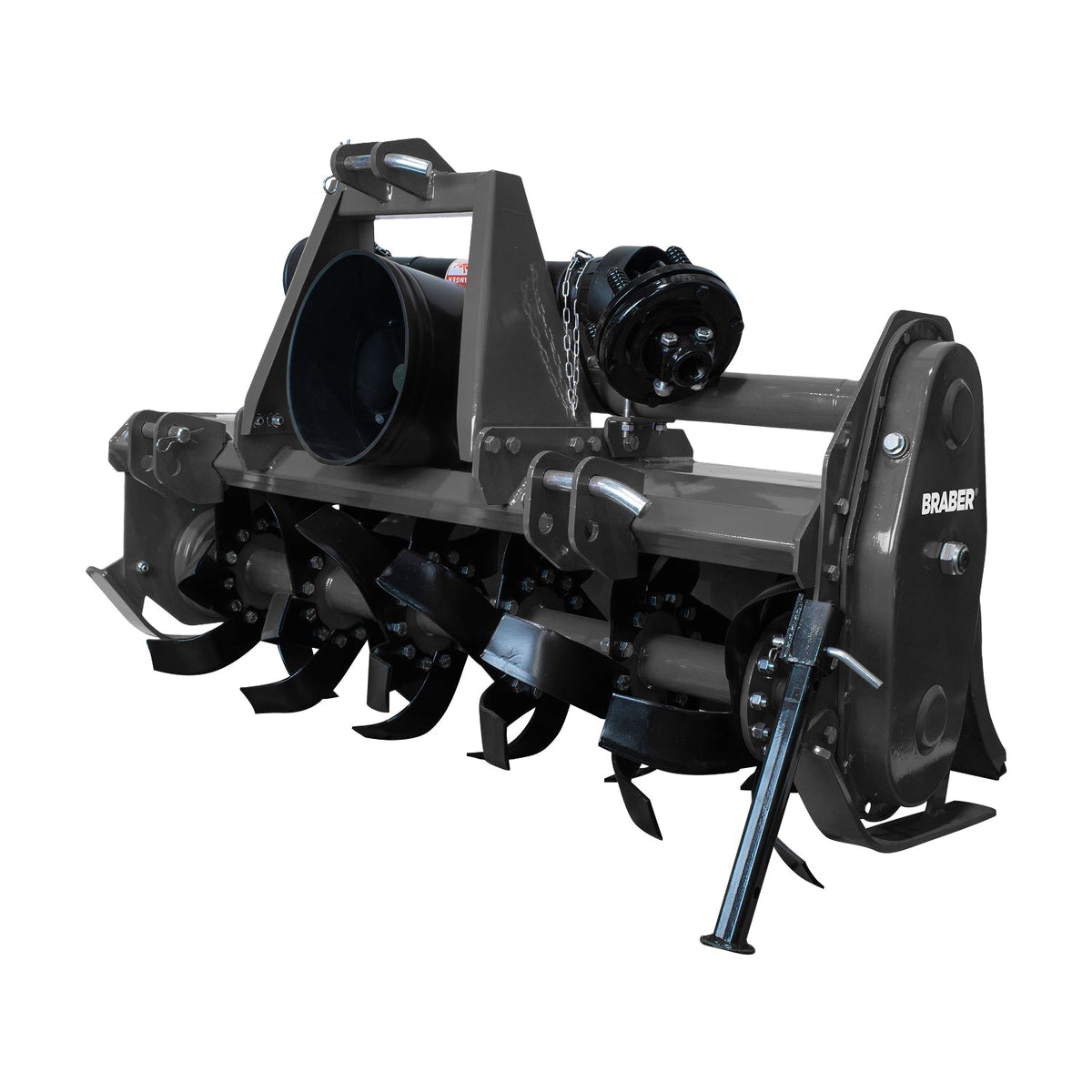

The BRABER MAS-C205WR 82" Heavy-Duty 3-Point PTO Rotary Tiller is a professional agricultural tillage implement designed for tractors rated from 60 to 130 PTO horsepower. Built for demanding field preparation, this C Series rotary tiller provides an 82-inch tilling width, an 11-inch working depth, 48 blades, and a factory-installed cage roller. Its Category 2 three-point hitch, heavy-duty gear drive, multi-speed gearbox, floating tailgate, adjustable linkages, and slip-clutch PTO yoke support efficient and controlled soil preparation for agricultural operations.

Heavy-Duty Tillage Performance

The MAS-C205WR is engineered for substantial tillage work behind appropriately rated tractors. The heavy-duty gear drive transfers PTO power to the rotor, while the multi-speed gearbox supports both 540 and 1,000 rpm PTO operation. This flexibility allows the tiller to accommodate the specified PTO operating speeds of compatible tractors.

With 48 blades arranged as six C-shaped tines per flange, the tiller is configured for effective soil cultivation across its 82-inch working width. The factory-installed cage roller is included with this model and helps complete the rear implement configuration. An optional rear roller is also available, and L-shaped tines are available separately.

Key Features

• 82-inch tilling width for broad field coverage
• 88-inch total transport width
• 11-inch working depth
• Factory-installed cage roller included
• 48 blades with six C-shaped tines per flange
• Heavy-duty gear drive
• Multi-speed gearbox for 540 and 1,000 rpm PTO operation
• Category 2 three-point hitch
• Floating tailgate
• Adjustable linkages
• Parking stand for convenient implement support when disconnected
• Slip-clutch PTO yoke
• L-shaped tines available separately
• Optional rear rollers available

Designed for Practical Operation

The floating tailgate helps maintain the tiller’s rear configuration during operation, while adjustable linkages support implement setup behind a compatible tractor. The parking stand provides a stable support point when the tiller is detached. Together, these features make the MAS-C205WR suitable for professional users who require a substantial three-point rotary tiller for repeated agricultural soil-preparation work.

Specifications

Tractor Requirements and Compatibility

The BRABER MAS-C205WR is intended for tractors rated from 60 to 130 PTO horsepower and equipped with a Category 2 three-point hitch. Confirm that the tractor meets the specified PTO horsepower range, hitch category, and required PTO operating speed before use. The tiller’s gearbox supports 540 and 1,000 rpm PTO operation.

Product Code: MAS-C205WR
