BRABER - B205 82" Heavy-Duty 3-Point PTO Rotary Tiller - Professional Agricultural Tillage - Soil Preparation & Tillage [MAS-B205]

SKU MAS-B205
Starting at $19,38000
Starting at $19,38000

Add your items to the Cart to begin to build and price your package!


When you're ready to take the next step, please reach out to us for a quote.

*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Pricing may not include freight, assembly, finance, delivery, or pdi fees.
*Manufacturer pricing subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

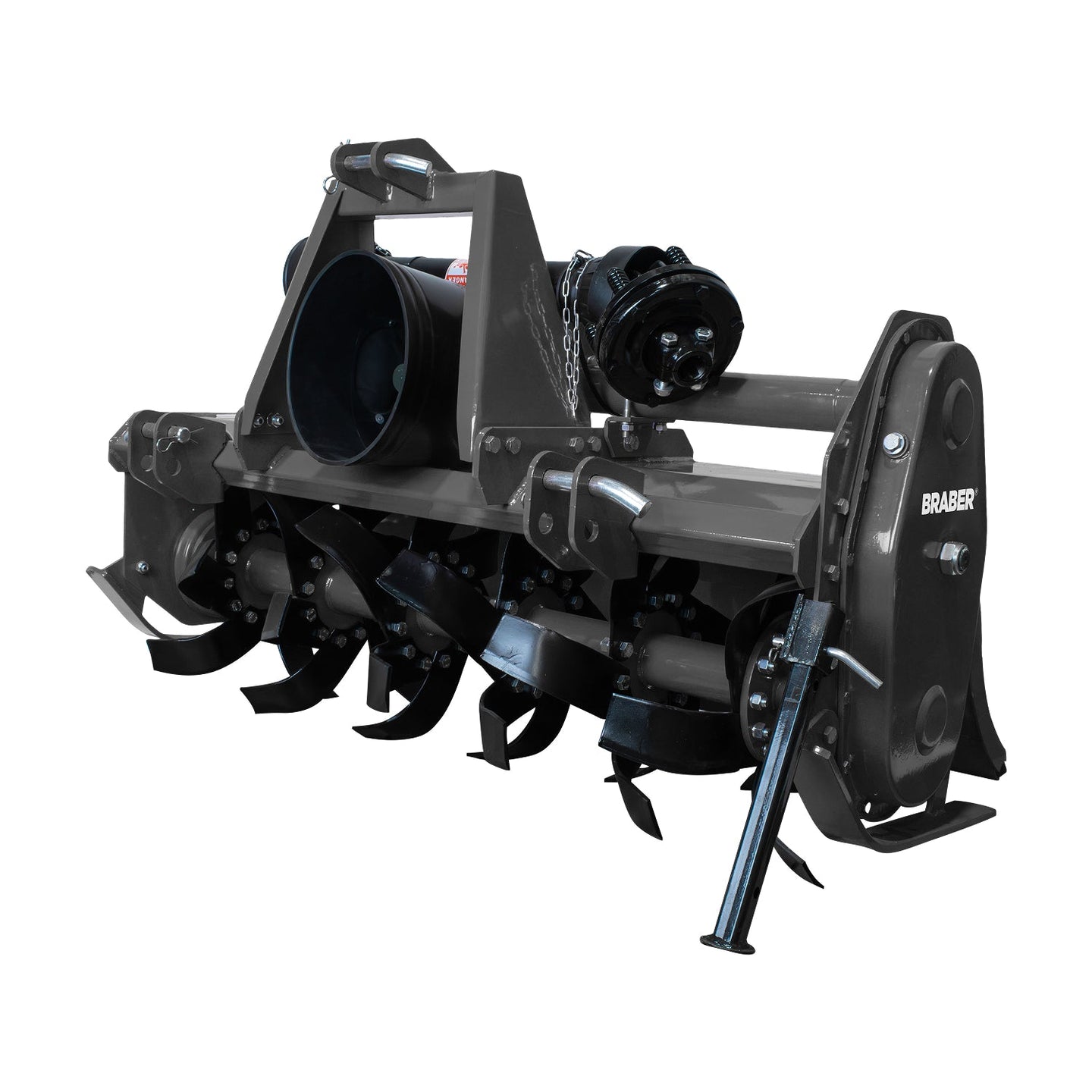

BRABER MAS-B205 83" Heavy-Duty 3-Point PTO Rotary Tiller is a medium-heavy-duty farm utility tiller designed for professional soil preparation and tillage. Built for tractors rated from 60 to 100 horsepower, this Category 2, 3-point implement combines a four-speed 540 RPM PTO gearbox, heavy-duty gear drive, and 48 blades to cultivate up to 83 inches wide and as deep as 11 inches. The floating tailgate helps manage the finished soil surface, while adjustable linkages, a parking stand, and a slip-clutch PTO yoke support practical operation in agricultural field-preparation applications.

Professional Soil Preparation and Tillage

The MAS-B205 is designed to break up and work soil across a broad 83-inch path. Its four-speed PTO gearbox allows the tiller to be operated through multiple speed selections using a 540 RPM tractor PTO, helping match tilling performance to field conditions and the desired soil finish. The heavy-duty gear-drive system is suited to the demands of medium-heavy-duty farm utility work.

With 48 blades arranged using six C-shaped tines per flange, the rotary tiller provides an effective cutting arrangement for soil cultivation. L-shaped tines are also available separately. The floating tailgate follows the tiller during operation and supports a consistent soil finish behind the rotor.

Key Features

  • 83-inch tilling width for broad soil coverage
  • Four-speed 540 RPM PTO gearbox
  • Heavy-duty gear-drive system
  • 48 blades with six C-shaped tines per flange
  • 11-inch working depth
  • Floating tailgate
  • Slip-clutch PTO yoke for PTO protection
  • Adjustable linkages for implement setup
  • Parking stand for convenient implement support
  • L-shaped tines available separately
  • Optional rear rollers available

Tractor Compatibility and Requirements

The BRABER MAS-B205 is compatible with tractors rated from 60 to 100 horsepower and uses a Category 2, 3-point hitch. The implement requires a 540 RPM tractor PTO. Confirm that the tractor meets the stated horsepower, hitch-category, and PTO requirements before operation.

Specifications

Brand BRABER / Maschio B Series
Model MAS-B205
Product type 3-point PTO rotary tiller
Part number MAS-B205
Tilling width 83 in
Total width 88 in
Working depth 11 in
Weight 1,523 lbs
Tractor horsepower rating 60–100 hp
Hitch Category 2, 3-point hitch
PTO and gearbox Four-speed 540 RPM PTO gearbox
Drive system Heavy-duty gear drive
Blades 48
Tines 6 C-shaped tines per flange
Tailgate Floating tailgate
PTO protection Slip-clutch PTO yoke
Rear roller Optional rear rollers available

Designed for Agricultural Tillage

With its 83-inch working width, 11-inch working depth, 48-blade rotor, and heavy-duty drivetrain, the BRABER MAS-B205 provides a substantial tillage footprint for compatible agricultural tractors. The implement’s adjustable linkages, floating tailgate, parking stand, and optional rear rollers provide configuration and handling features for soil-preparation work.
