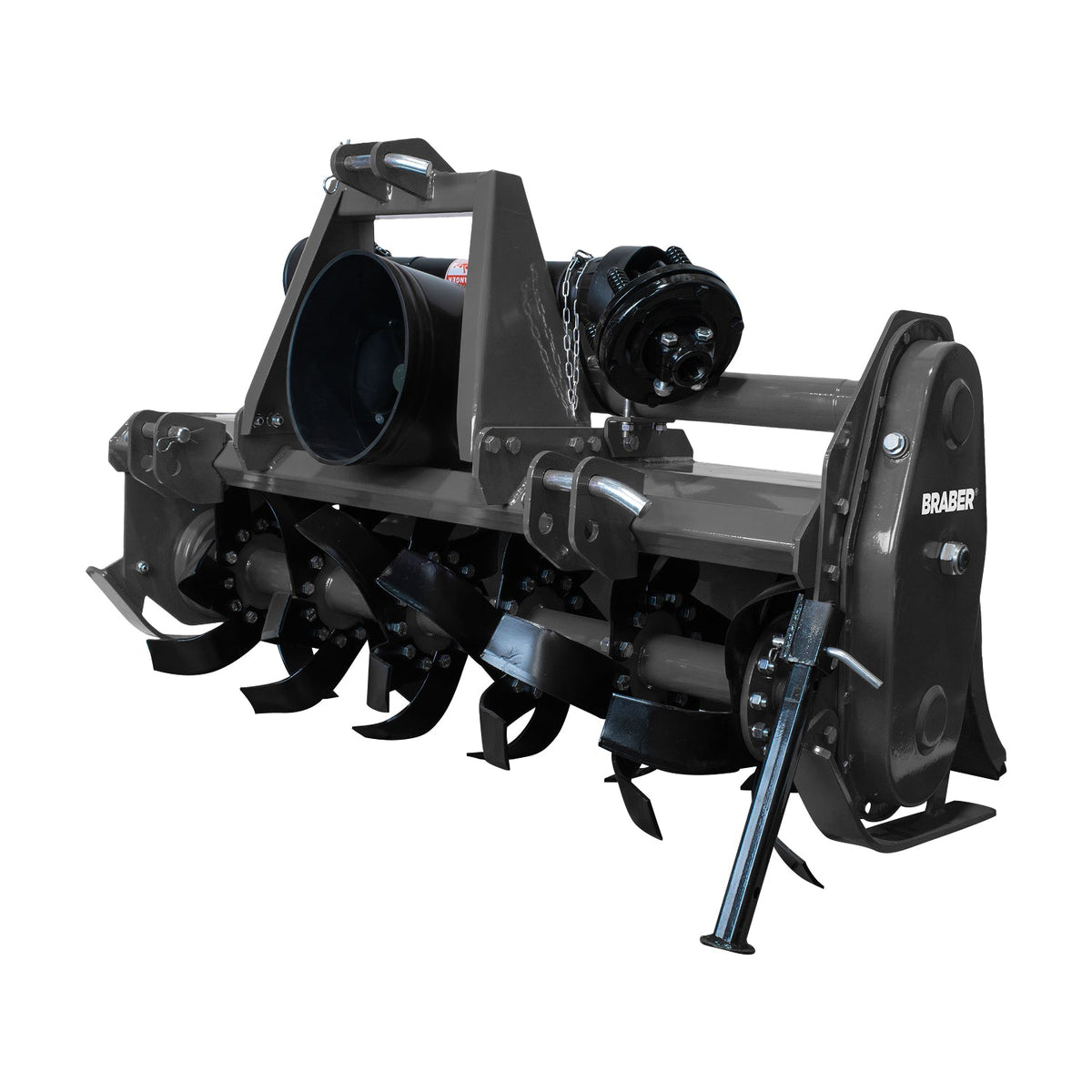

BRABER - B205 82" Heavy-Duty 3-Point PTO Rotary Tiller - Cage Roller Included - Professional Agricultural Tillage [MAS-B205WR]

The BRABER MAS-B205WR 83" Heavy-Duty 3-Point PTO Rotary Tiller is a professional B-Series tillage implement designed for tractors rated from 60 to 100 PTO horsepower. Built for demanding agricultural ground preparation, this medium-heavy-duty rotary tiller combines an 83-inch tilling width with a heavy-duty gear drive, four-speed gearbox for a 540 RPM PTO, and a Category 2 three-point hitch. The WR configuration includes an added manually adjustable rear cage roller to help support consistent tillage operation and field finishing. A floating tailgate, adjustable linkages, parking stand, slip-clutch PTO yoke, and 48 blades further equip this tiller for productive use across agricultural tillage applications.

Professional Tillage Performance

The MAS-B205WR is built for tractors with 60–100 PTO horsepower and delivers an 83-inch working width. Its four-speed gearbox is designed for operation with a 540 RPM PTO, while the heavy-duty gear-drive system provides the drivetrain configuration required for demanding rotary tillage work. The tiller reaches a verified working depth of up to 11 inches, supporting thorough soil preparation when operating conditions and tractor setup are suitable.

The WR model is distinguished by its added rear cage roller. This manually adjustable cage roller is included with the implement and complements the tiller’s floating tailgate for controlled operation behind the tractor. The cage-roller configuration is part of the WR variant and is supplied as a defining feature of this model.

Key Features

• BRABER MAS-B205WR B-Series rotary tiller
• 83-inch tilling width
• 88-inch total transport width
• Designed for tractors rated from 60–100 PTO horsepower
• Category 2 three-point hitch
• Four-speed gearbox designed for a 540 RPM PTO
• Heavy-duty gear drive
• Included manually adjustable rear cage roller
• Floating tailgate
• Adjustable linkages
• Parking stand
• 48 blades with six C-shaped tines per flange
• L-shaped tines available separately
• Slip-clutch PTO yoke
• Verified working depth of up to 11 inches

Built for Agricultural Ground Preparation

With its wide working path and 48-blade configuration, the BRABER MAS-B205WR is suited to professional agricultural tillage where efficient soil cultivation is required. The adjustable linkages help with implement setup, while the floating tailgate and rear cage roller support controlled operation behind compatible tractors. The parking stand helps support the implement when it is detached from the tractor.

Tractor Compatibility and Requirements

This rotary tiller is intended for tractors rated between 60 and 100 PTO horsepower. The tractor must be equipped with a Category 2 three-point hitch and a 540 RPM PTO to match the tiller’s gearbox design. Confirm that the tractor’s lift capacity, hitch dimensions, PTO configuration, and operating conditions are suitable for an implement weighing 1,990 pounds and measuring 88 inches in total width.

Specifications

Product code: MAS-B205WR
