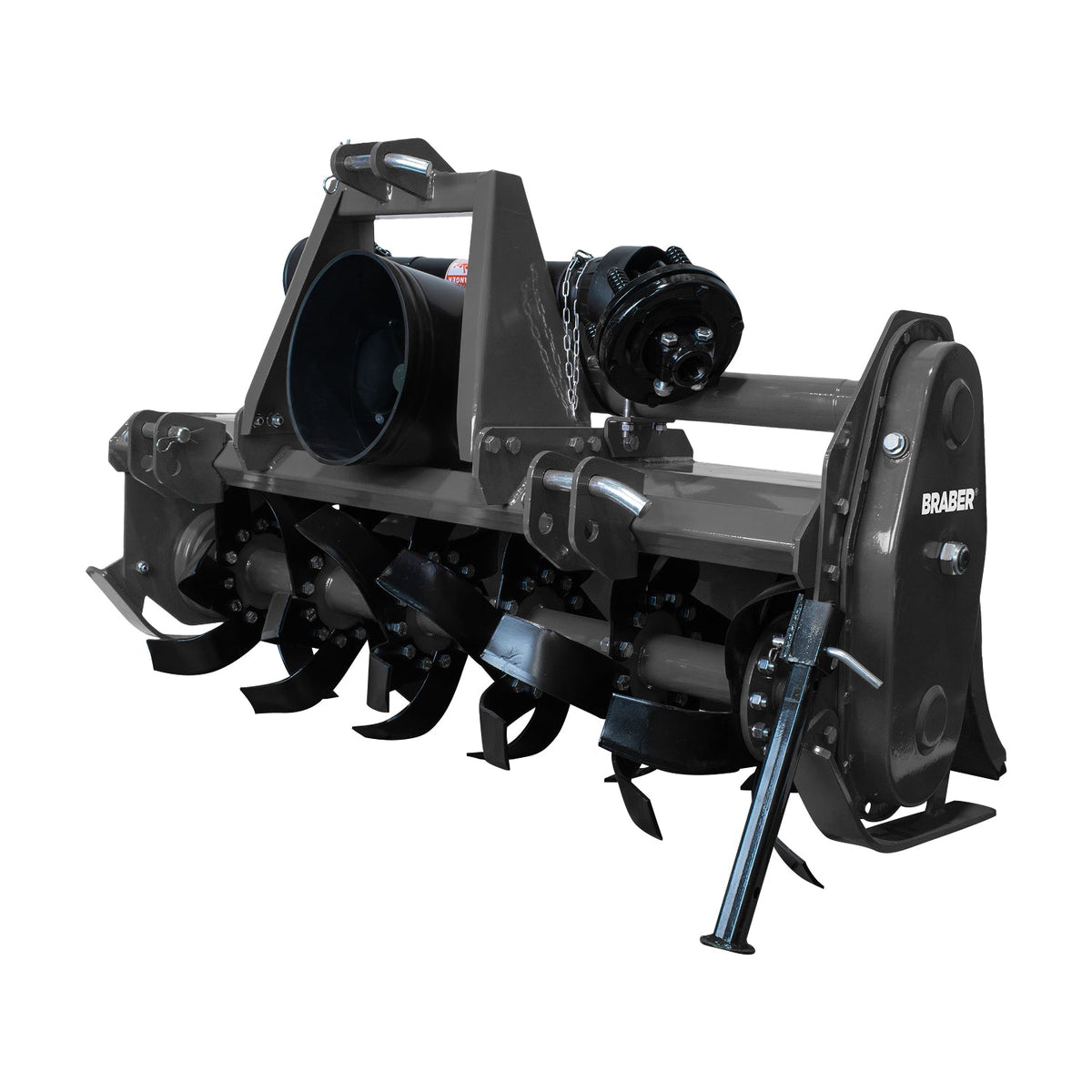

BRABER - B180 72" Heavy-Duty 3-Point PTO Rotary Tiller - Professional Agricultural Tillage - Soil Preparation & Tillage [MAS-B180]

The BRABER MAS-B180 B Series Heavy-Duty Gear-Drive 3-Point PTO Rotary Tiller is a professional agricultural tillage implement designed for soil preparation across demanding field and farm applications. With a 73-inch tilling width, 11-inch working depth, 42 blades, and a heavy-duty gear-drive system, it provides substantial ground coverage while working with tractors rated from 50 to 100 HP. The MAS-B180 is built for Category 2 or 3 three-point hitches and operates at 540 PTO RPM, making it suitable for primary and secondary soil preparation, seedbed preparation, and general tillage work where dependable performance and durable construction are required.

Professional Soil Preparation and Tillage

The MAS-B180 combines a four-speed 540 RPM gearbox with a heavy-duty gear drive for agricultural tillage applications. Its 73-inch working width is suited to efficient coverage, while the 11-inch working depth supports substantial soil preparation. Forty-two blades are arranged with six C-shaped tines per flange to engage the soil across the working area.

Adjustable linkages help with implement setup, and the floating tailgate supports consistent operation as the tiller moves across the field. A parking stand assists with implement storage and handling when the rotary tiller is detached from the tractor. The slip-clutch PTO yoke provides the PTO connection for compatible tractor applications.

Key Features

• Heavy-duty gear-drive 3-point PTO rotary tiller
• 73-inch tilling width for broad soil coverage
• 11-inch working depth
• Four-speed gearbox designed for 540 RPM PTO operation
• 42 blades with six C-shaped tines per flange
• Floating tailgate
• Adjustable linkages for implement setup
• Slip-clutch PTO yoke
• Parking stand for detached implement support
• Category 2 or 3 three-point hitch compatibility
• Suitable for tractors rated from 50 to 100 HP

Tractor Compatibility and Requirements

The BRABER MAS-B180 is intended for tractors rated from 50 to 100 HP. The tractor must be equipped with a Category 2 or Category 3 three-point hitch and a 540 RPM PTO. Confirm that the tractor’s three-point hitch, PTO arrangement, lifting capacity, and operating configuration are suitable for the tiller’s 1,356-pound weight before use.

Working Configuration

The MAS-B180 has a 73-inch tilling width and a 78-inch total or transport width. This configuration provides a balance between working coverage and transport dimensions for agricultural operations. The tiller’s floating tailgate, adjustable linkages, and available tine configuration support practical setup for soil preparation tasks.

This listing is for the MAS-B180 non-WR version. The optional manually adjustable rear cage roller is associated with the separate WR variant and is not included as a specification for this model.

Specifications
