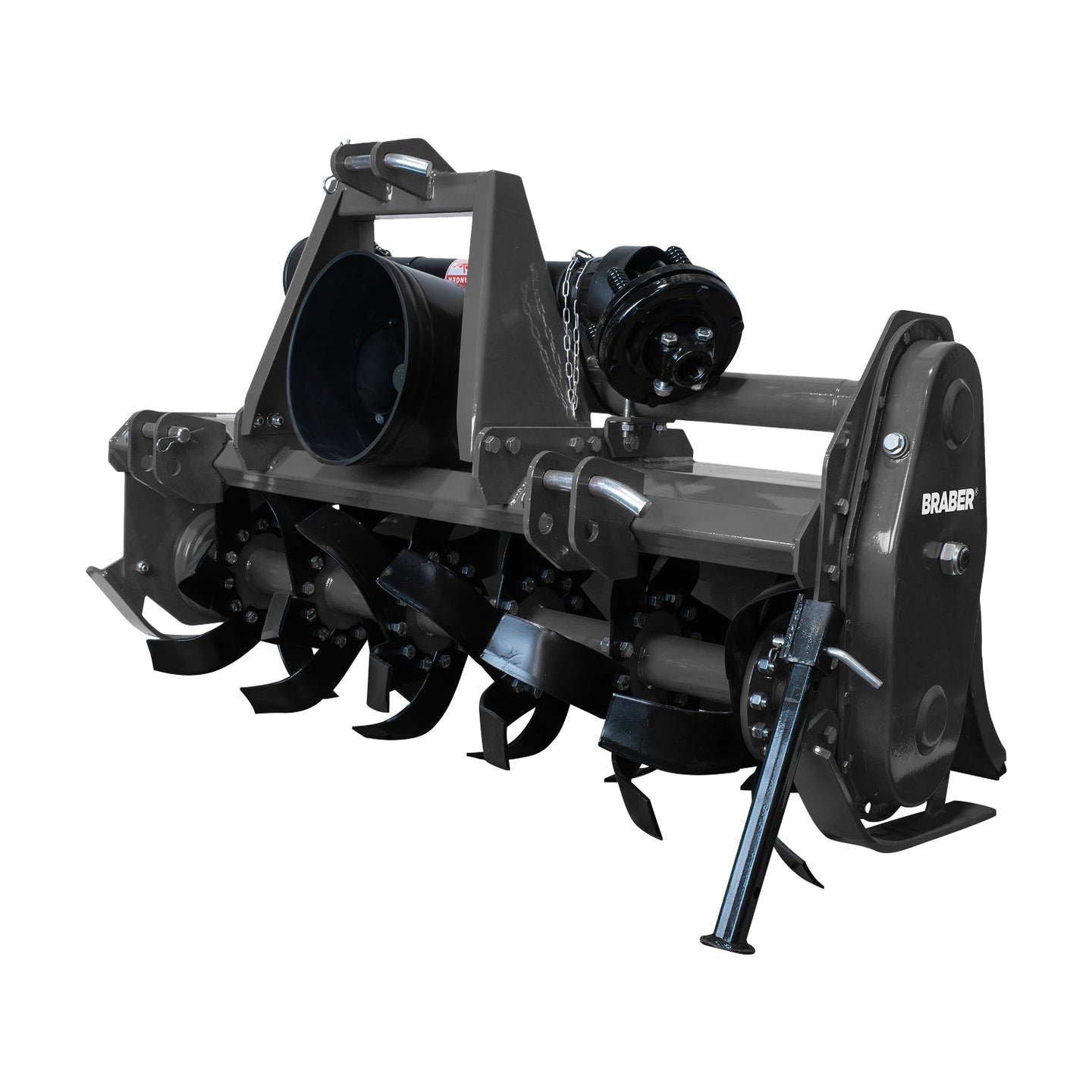

BRABER - B155 63" Heavy-Duty 3-Point PTO Rotary Tiller - Professional Agricultural Tillage - Soil Preparation & Tillage [MAS-B155]

The BRABER MAS-B155 63" Heavy-Duty 3-Point PTO Rotary Tiller is a medium-heavy-duty farm utility tiller designed for professional agricultural soil preparation and tillage. Built for tractors rated from 45 to 100 PTO horsepower, it combines a 63-inch tilling width with a heavy-duty gear drive, four-speed 540 RPM PTO gearbox, and 36 blades to support consistent ground engagement across a broad working path. The MAS-B155 is suited to preparing soil for planting, incorporating surface material, and breaking up worked ground in agricultural and farm utility applications.

Built for Professional Soil Preparation

The MAS-B155 uses a Category 2, 3-point hitch for tractor-mounted operation and a slip-clutch PTO yoke to help transmit power through the driveline. Its four-speed gearbox provides PTO speed selection at 540 RPM, while the heavy-duty gear drive is designed for demanding tillage work. With a rated working depth of up to 11 inches, the tiller can be used for substantial soil preparation where deeper cultivation is required.

A floating tailgate helps manage the soil finish behind the rotor, while adjustable linkages support setup and positioning on the tractor. The integrated parking stand helps support the tiller when it is disconnected from the tractor. The machine is equipped with six C-shaped tines per flange, providing a total of 36 blades for soil engagement across the 63-inch tilling width.

Key Features

• BRABER MAS-B155 model with a 63-inch tilling width
• Designed for tractors rated from 45 to 100 PTO horsepower
• Category 2, 3-point hitch
• Four-speed 540 RPM PTO gearbox
• Heavy-duty gear drive
• 36 blades arranged as six C-shaped tines per flange
• Working depth of up to 11 inches
• Floating tailgate for managing the soil finish
• Slip-clutch PTO yoke
• Adjustable linkages for setup and positioning
• Parking stand for storage and attachment support
• L-shaped tines available separately
• Optional rear rollers available

Tractor Compatibility and Requirements

The BRABER MAS-B155 is compatible with tractors equipped with a Category 2, 3-point hitch and a 540 RPM PTO. The tractor should be rated between 45 and 100 PTO horsepower for operation with this tiller. Confirm that the tractor’s hitch category, PTO configuration, and available PTO horsepower are suitable before use.

Specifications

Configuration Options

L-shaped tines are available separately, and optional rear rollers are available for the MAS-B155 configuration. These options allow the tiller to be equipped according to the intended soil preparation application.
