BRABER - 96" 3-Point PTO Rotary Rake - Adjustable Swath Curtain - 8 Arms, 540 RPM PTO, Up to 20 HP - Hay & Forage Equipment [BE-GR250DR]

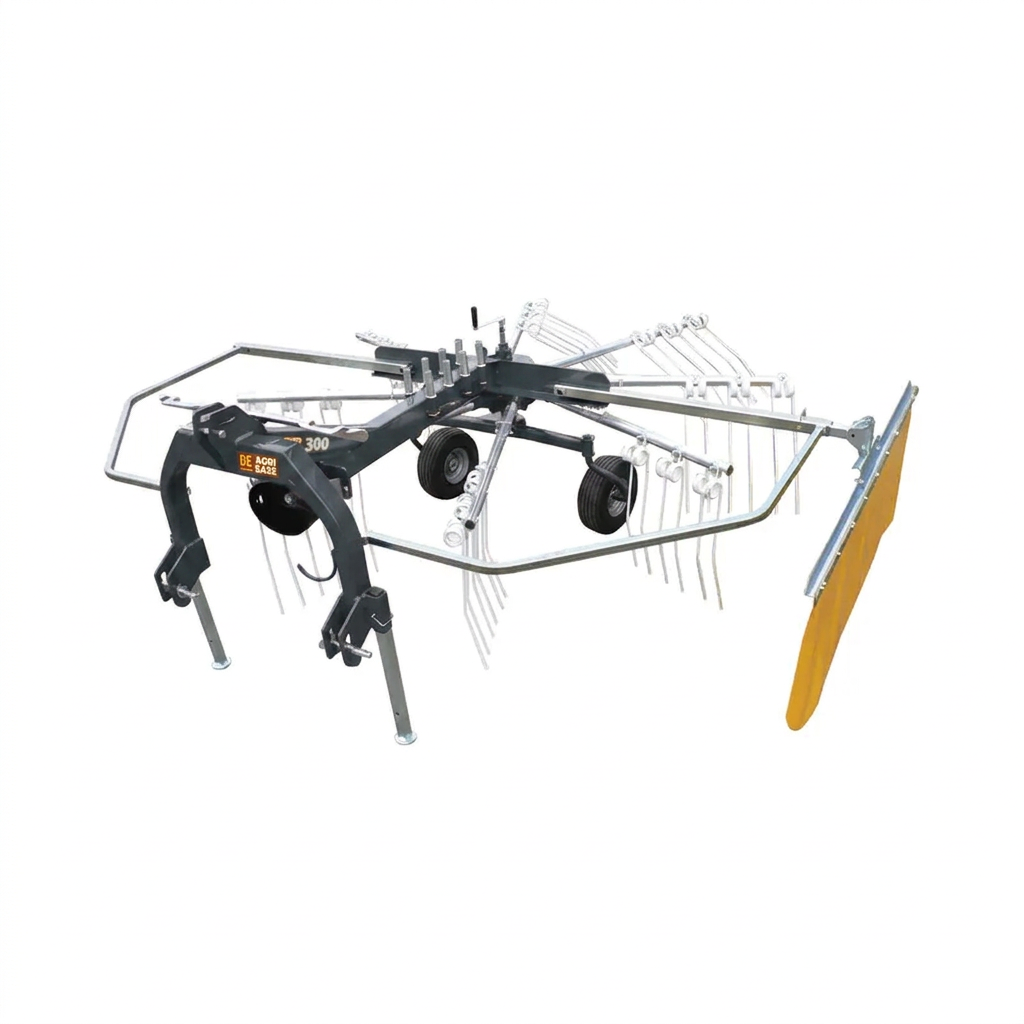

BRABER BE-GR250DR 96" 3-Point PTO Rotary Rake is a rotary rake for hay and forage work, combining a 96-inch working width with an 8-arm rotor, 540 RPM PTO drive, and an adjustable swath curtain. Designed for tractors up to 20 HP with a Category 1 or Category 2 three-point hitch, this rake gathers and organizes cut forage into a swath while its swivel ground-following wheels help the implement follow changing ground contours. Manual height adjustment, double-tine arms, and a heavy-duty frame with steel guards provide a practical configuration for compact tractor operators handling hay and forage tasks.

Efficient Hay and Forage Raking

The BE-GR250DR provides a 96-inch working width for covering a broad pass across the field. Its eight rotating arms are fitted with three double tines per arm, creating the tine configuration required to move forage into an organized swath. The adjustable swath curtain allows the discharge area to be set according to the desired swath arrangement and operating conditions.

A 540 RPM PTO drive powers the rotary rake through a radial pin clutch. The radial pin clutch provides protection within the PTO drive system, while the Category 1 and Category 2 three-point hitch configuration supports compatibility with tractors using either supported hitch category. Swivel wheels provide ground following as the rake moves across the working surface.

Key Features

• 96-inch working width for hay and forage raking
• 540 RPM PTO drive with radial pin clutch
• Suitable for tractors up to 20 HP
• Category 1 and Category 2 three-point hitch
• Eight rotating rake arms
• Three double tines per arm
• Swivel ground-following wheels
• Manual height adjustment
• Adjustable swath curtain
• Heavy-duty frame with steel guards
• 52-inch transport width
• 616 lb operating weight

Tractor Compatibility and Requirements

The BRABER BE-GR250DR is intended for tractors equipped with a Category 1 or Category 2 three-point hitch. The tractor power requirement is up to 20 HP, and the implement uses a 540 RPM PTO drive. Confirm that the tractor provides the required hitch category, PTO speed, and suitable lifting capacity before operation.

Adjustable Working Configuration

The rake includes manual height adjustment for setting the working position. Its swivel wheels are designed to follow the ground, while the adjustable swath curtain helps control how the collected forage is formed as it leaves the rake. Together, these features provide adjustable control over the rake’s working setup without introducing hydraulic requirements.

Specifications

A manufacturer operator manual is available for the BRABER rotary rake product family.
