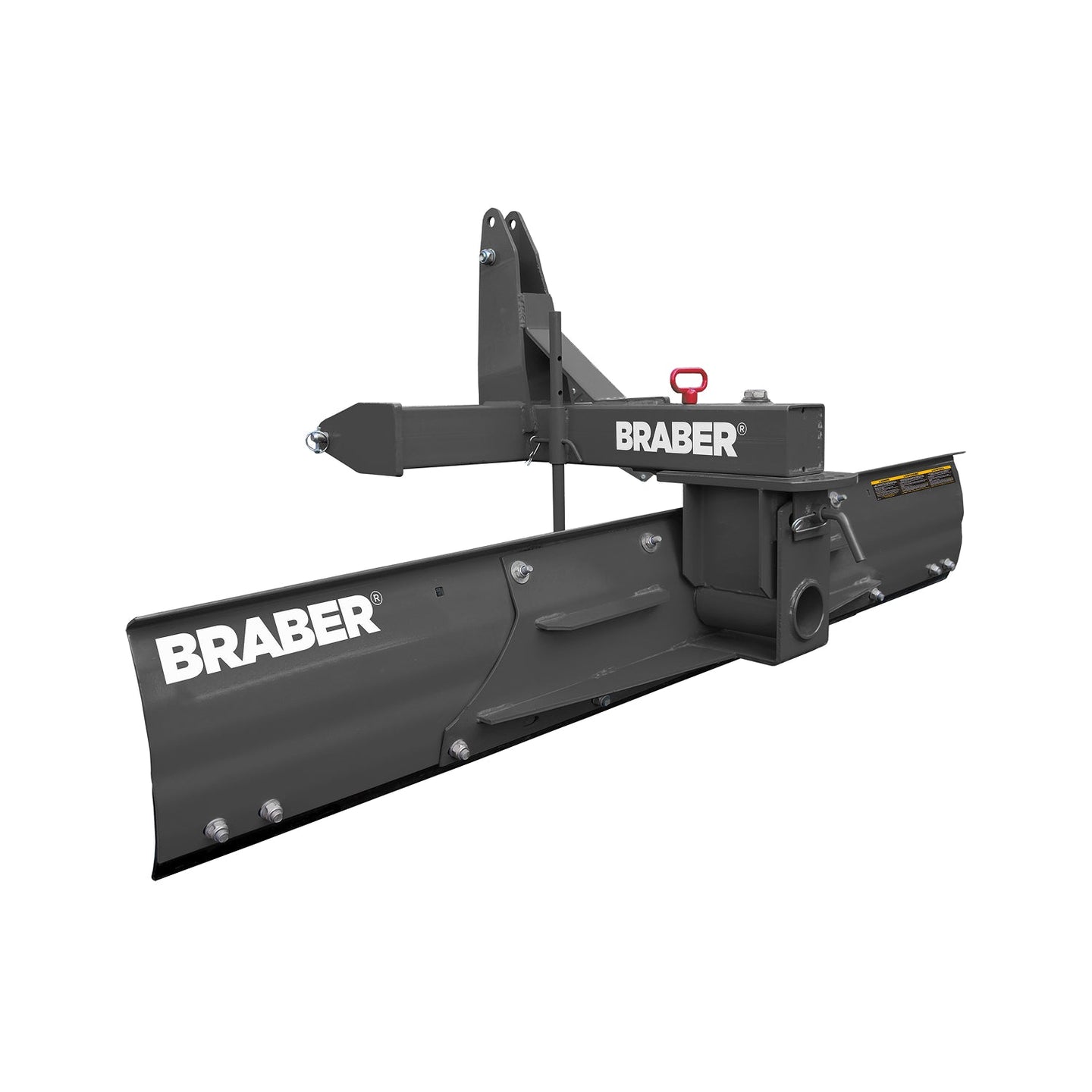

BRABER - 9' Heavy-Duty Hydraulic 3-Point Rear Blade - Hydraulic Angle Cylinder Included - Up to 80 HP - Driveway & Land Grading [BE-RB409HDG]

The BRABER BE-RB409HDG 9 ft Heavy-Duty Hydraulic 3-Point Rear Blade is an extra-heavy-duty grading and scraping attachment designed for tractors up to 80 HP. Its 108-inch working width, hydraulic blade-angle adjustment, reinforced moldboard, and reversible cutting edge make it suitable for maintaining driveways, lanes, roads, gravel surfaces, soil, and snow. The included hydraulic angle cylinder and hoses allow convenient angle adjustment from the tractor, while mechanical tilt and offset adjustments provide additional control for shaping, leveling, ditch cutting, road crowning, back-dragging, and general ground maintenance.

Built for Grading, Leveling, and Surface Maintenance

The BRABER BE-RB409HDG is designed to move and shape material across a broad working area. Use it to spread and level gravel or soil, smooth uneven surfaces, maintain lanes and driveways, and clear snow. The 18-inch reinforced moldboard contains and rolls material effectively, while the 5/16-inch moldboard thickness supports demanding grading and scraping work.

Hydraulic blade-angle adjustment makes it easier to position the blade for different working conditions and material-flow requirements. The blade also includes mechanically adjustable tilt and offset positions, allowing the operator to configure the attachment for tasks such as ditch cutting, road crowning, edge work, and back-dragging.

Key Features

• 9 ft (108 in) working width for broad grading and scraping coverage
• Extra-heavy-duty rear blade design for tractors up to 80 HP
• Hydraulic blade-angle adjustment
• Hydraulic angle cylinder and hoses included
• Mechanically adjustable tilt and offset positions
• Reinforced 18-inch moldboard
• 5/16-inch moldboard thickness
• Reversible cutting edge for extended serviceability
• 6-inch cutting edge
• Category 2, three-point hitch
• Quick-hitch compatible
• Suitable for grading driveways, lanes, roads, gravel, soil, and snow
• Requires two tractor hydraulic ports

Applications

This hydraulic-angle rear blade is suited to a range of property, agricultural, and land-maintenance tasks. Use it for grading and maintaining driveways, lanes, and roads; spreading and leveling gravel and soil; smoothing ground; back-dragging; cutting ditches; crowning roads; and clearing snow. Hydraulic angle adjustment helps position the blade for changing terrain and surface conditions, while the mechanical tilt and offset settings support more specialized shaping work.

Specifications

Tractor Requirements and Compatibility

The BRABER BE-RB409HDG is intended for tractors rated up to 80 HP and equipped with a Category 2 three-point hitch. It is quick-hitch compatible. Two tractor hydraulic ports are required for the hydraulic blade-angle adjustment. The hydraulic angle cylinder and hoses are included with the rear blade.
