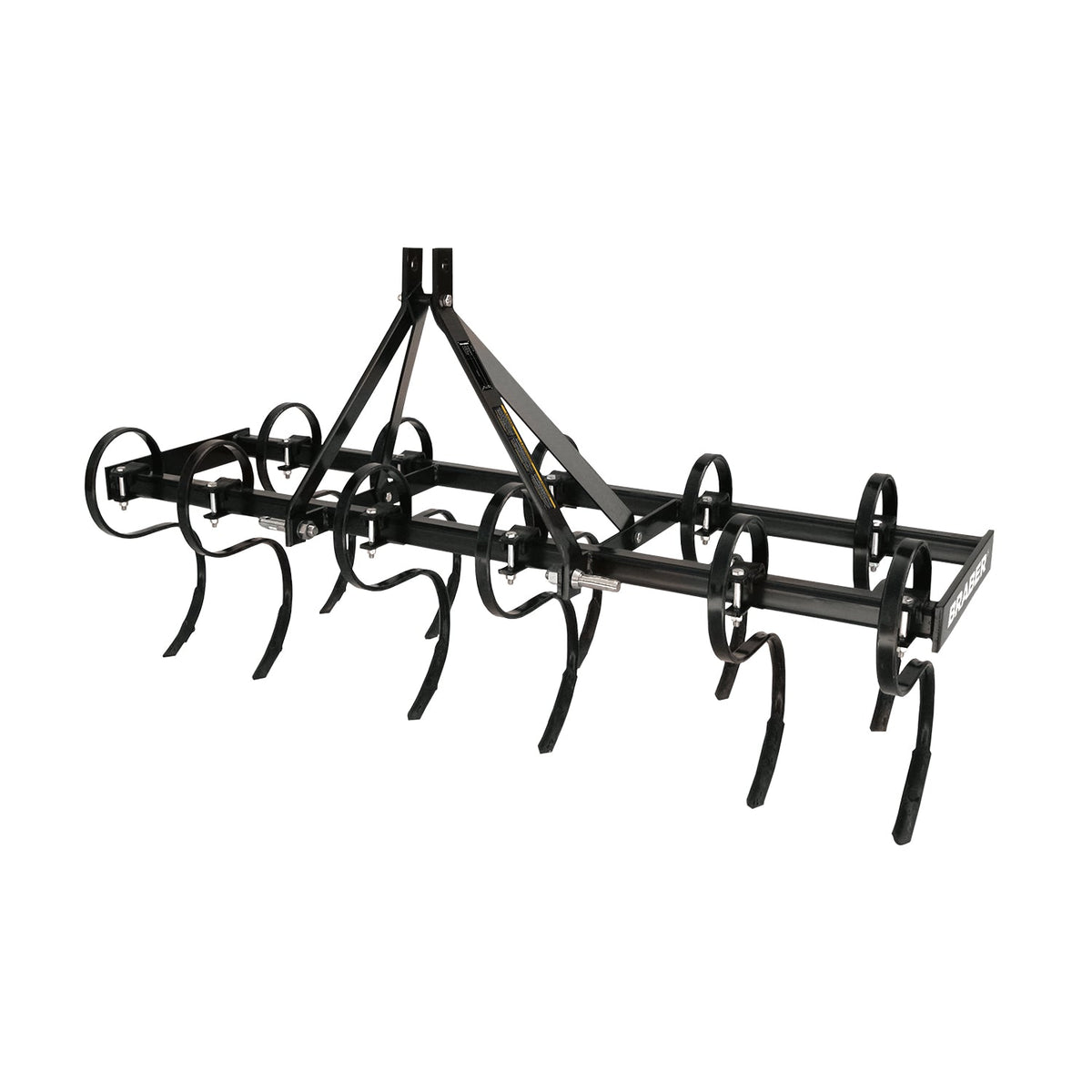

BRABER - 9.5' Heavy-Duty 3-Point Cultivator - 13 Double-Spring Tines - Field Cultivation & Seedbed Preparation [BE-FC13S]

BRABER BE-FC13S Heavy-Duty 3-Point Cultivator is a spring-loaded tine cultivator designed for field cultivation and seedbed preparation with tractors rated from 50 to 80 HP. Its solid welded frame, heavy-duty shanks, and 13 double-coil spring tines provide a durable working configuration for demanding soil-preparation applications. The cultivator has a 108-inch working width for efficient coverage, while its 2-1/4-inch by 12-inch reversible points support extended point service life by allowing the working edges to be reversed when required.

Built for Field Cultivation and Seedbed Preparation

The BE-FC13S is designed to prepare and condition soil across a broad working area in a single pass. The 13 double-coil spring tines are suited to spring-loaded cultivation, while the heavy-duty shanks support the tine assemblies during field work. A solid welded frame provides the main structural foundation of the implement, making this cultivator suitable for regular use in field cultivation and seedbed preparation operations.

With a 108-inch working width and 115-inch total width, this BRABER cultivator is sized for high-coverage field work behind a compatible tractor. The Category 2, 3-point hitch connects the implement to tractors within the specified 50-80 HP rating range.

Key Features

• BRABER BE-FC13S heavy-duty spring-loaded tine cultivator
• Designed for field cultivation and seedbed preparation
• 13 double-coil spring tines
• Solid welded frame
• Heavy-duty shanks
• 2-1/4-inch by 12-inch reversible points
• 108-inch working width
• 115-inch total width
• Category 2, 3-point hitch
• For tractors rated from 50 to 80 HP

Working Width and Reversible Points

The 108-inch working width provides broad soil coverage for cultivation and seedbed preparation. The implement’s total width is 115 inches, which should be considered when planning transport, storage, and access through field entrances or other restricted areas. The reversible points measure 2-1/4 inches by 12 inches and are designed with two usable working edges, providing a practical option for managing point wear during service.

Tractor Requirements and Compatibility

The BRABER BE-FC13S is intended for use with tractors rated from 50 to 80 HP. It uses a Category 2, 3-point hitch, so the towing tractor must have a compatible Category 2 three-point hitch system and sufficient capacity for the implement’s 892-pound weight. Confirm tractor compatibility, lifting capacity, and operating suitability before use.

Specifications
