BRABER - 84" Heavy-Duty Rear-Discharge Finish Mower - 3 Blades, Cat 1/2 Hitch - 540 RPM PTO, 728 lb, Up to 75 HP [BE-FM84RDHDG]

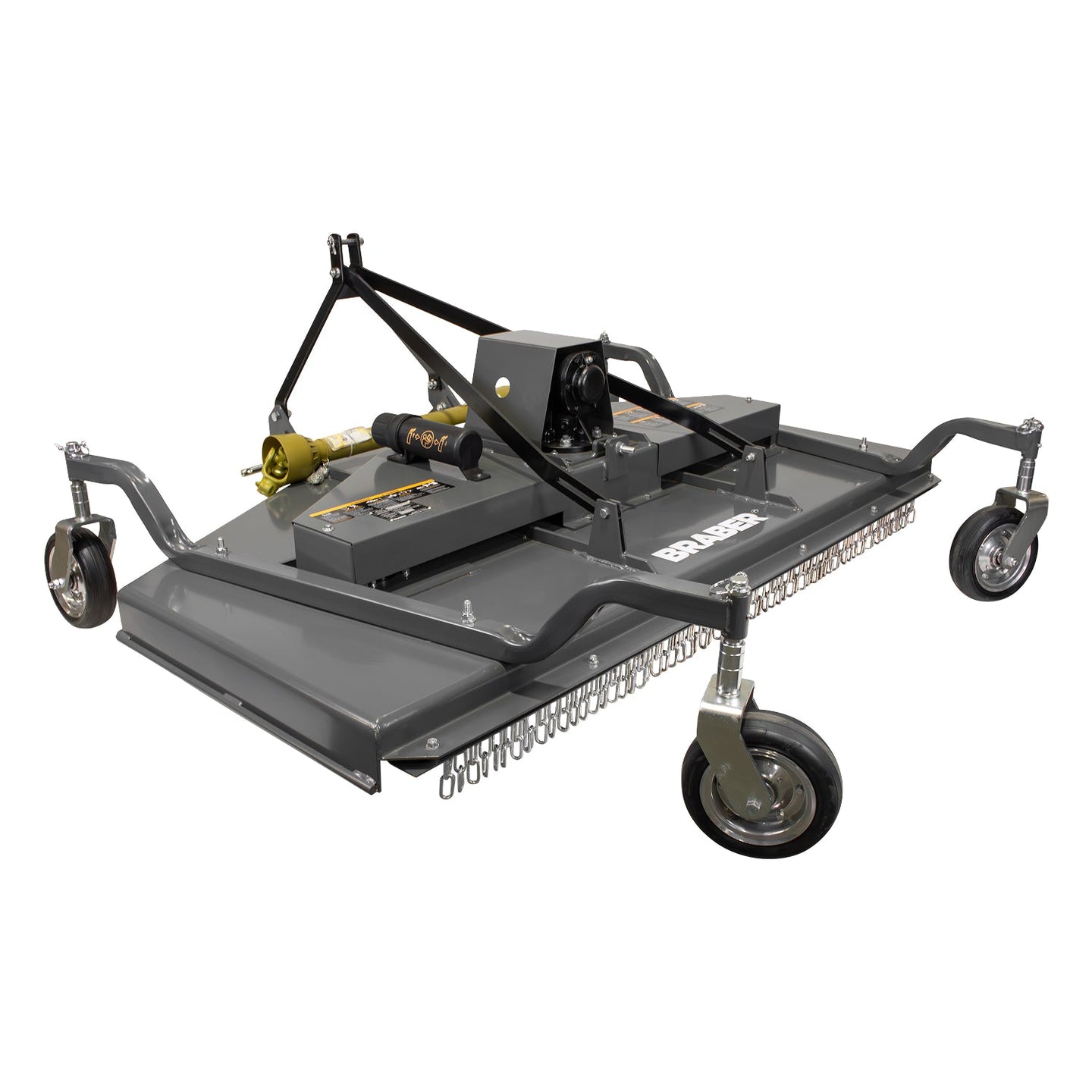

The BRABER BE-FM84RDHDG Heavy-Duty Rear-Discharge Finish Mower is an 84-inch, three-blade finish mower designed for maintaining lawns and grass areas with a compatible 3-point PTO tractor. Its rear-discharge deck distributes clippings behind the mower, while the single-piece formed deck, heavy-duty gearbox, belt drive, chain guard, and cast-iron spindle housings provide a robust configuration for regular finish-mowing work. With a Category 1 and Category 2 three-point hitch, quick-hitch compatibility, four height-adjustable wheels, and a floating hitch, this 728 lb mower is suited to compatible tractors delivering up to 75 HP at the required 540 RPM PTO speed.

Key Features

• 84-inch working and overall width for broad mowing coverage
• Rear-discharge deck for directing cut grass behind the mower
• Three-blade cutting system
• Cutting-height adjustment from 1-3/4 inches to 4-3/4 inches
• Heavy-duty gearbox and belt-drive system
• Single-piece formed deck
• Chain guard for added protection around the drive system
• Four height-adjustable, no-flat wheels
• Floating hitch to support mower operation across lawn contours
• Heavy-duty cast-iron spindle housings with permanently greased ball bearings
• Easy-access grease points
• 3-inch-wide by 10-inch-diameter solid rubber tires
• Quick-hitch compatible
• For lawn and grass use only

Designed for Finish Mowing

The BE-FM84RDHDG combines a wide 84-inch deck with three blades to cover substantial lawn and grass areas efficiently. Its rear-discharge configuration places the clippings behind the mower, making it suitable for finish-mowing applications where a rearward discharge pattern is preferred. The mower’s floating hitch and four height-adjustable wheels help the deck follow the mowing surface while maintaining the selected cutting height.

The cutting-height range of 1-3/4 inches to 4-3/4 inches supports adjustment for different lawn-maintenance requirements. Solid rubber tires provide a no-flat wheel configuration, while the 9-3/4-inch by 3-inch wheel size supports the mower’s ground-contact system.

Heavy-Duty Construction

Built for demanding finish-mowing duties, the mower features a heavy-duty gearbox, belt drive, chain guard, and single-piece formed deck. Cast-iron spindle housings with permanently greased ball bearings support the three-blade cutting assembly. Easy-access grease points simplify access for routine lubrication and maintenance.

Tractor Requirements

This mower requires a compatible tractor equipped with a Category 1 or Category 2 three-point hitch and a 540 RPM PTO. The manufacturer-rated maximum tractor PTO requirement is 75 HP. The mower is quick-hitch compatible. It is intended for lawn and grass use only.

Specifications
