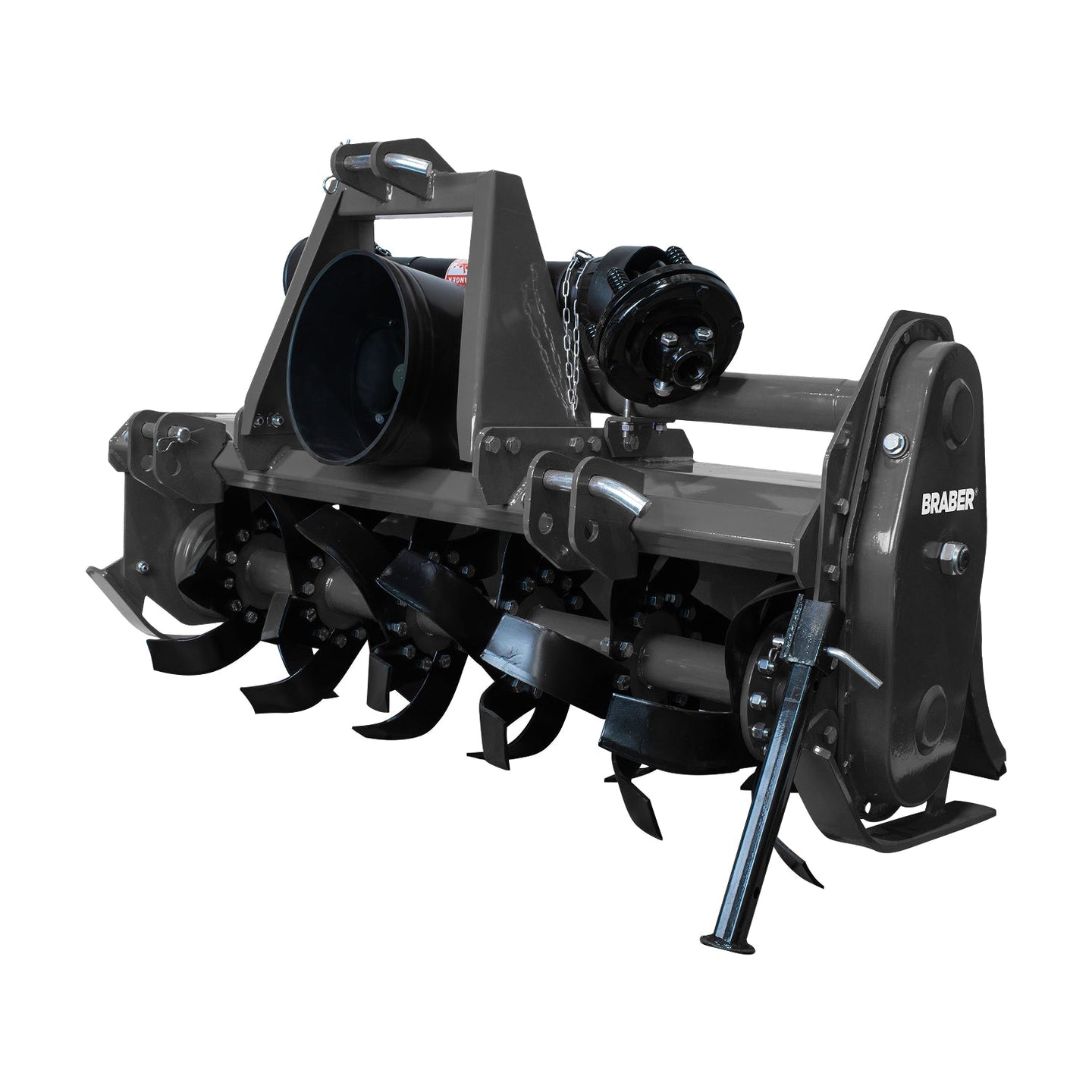

BRABER - 84" Heavy-Duty 3-Point PTO Rotary Tiller - Gear Drive - 540 RPM PTO, Up to 55 HP - Soil Preparation & Tillage [BE-IGN210]

The BRABER BE-IGN210 3-Point PTO Rotary Tiller is a heavy-duty gear-drive tiller designed for soil preparation and cultivation with tractors rated up to 55 HP. Its 82-inch working width, 540 RPM PTO operation, 60-blade configuration, and 6.3-inch catalogue tillage depth make it suitable for breaking up and preparing substantial areas of soil. Built with a single-speed gearbox, slip-clutch PTO, adjustable skid shoes, a fixed-center-mount hitch, and an adjustable rear flap, the BE-IGN210 provides practical control for repeatable tillage work in agricultural, landscaping, and soil-cultivation applications.

Heavy-Duty Gear-Drive Tillage

The BE-IGN210 uses a gear-drive transmission and operates from a 540 RPM tractor PTO. Its 6 tines per flange and 60-blade configuration are designed for thorough soil engagement across an 82-inch tilling width. The tiller’s fixed-center-mount hitch provides a straightforward three-point connection, while the slip-clutch PTO helps support protected power transfer during operation.

Depth can be adjusted using the height-adjustable skid shoes. This allows the operator to set the working depth for the conditions and application, with the current catalogue listing a tillage depth of 6.3 inches. An adjustable rear flap helps manage the finish behind the rotor, and the included parking stand supports convenient storage when the tiller is not attached to a tractor.

Key Features

• BRABER BE-IGN210 rotary tiller
• 82-inch / 2000 mm working width
• Gear-drive transmission
• 540 RPM PTO operation
• Rated for tractors up to 55 HP in current catalogue data
• Single-speed gearbox
• Slip-clutch PTO
• Fixed-center-mount hitch
• 60 blades with 6 tines per flange
• Adjustable skid shoes for working-depth control
• Adjustable rear flap
• Parking stand

Tractor Compatibility and Requirements

The BE-IGN210 is intended for tractors with a three-point hitch and a 540 RPM PTO. Current BRABER catalogue data rates the tiller for tractors up to 55 HP. The manufacturer operations and parts manual lists a Cat 2 three-point linkage and a tractor horsepower range of 55–70 HP. Because these published ratings differ, confirm tractor compatibility, available lifting capacity, hitch category, and the applicable manufacturer rating before operation.

Specifications

Designed for Soil Preparation

With its broad working width, PTO-driven rotor, adjustable depth control, and rear-flap adjustment, the BRABER BE-IGN210 is equipped for practical soil preparation and tillage work. Its three-point design supports use with compatible tractors, while the gear-drive layout and 540 RPM PTO specification provide a clearly defined operating setup for the intended application.
