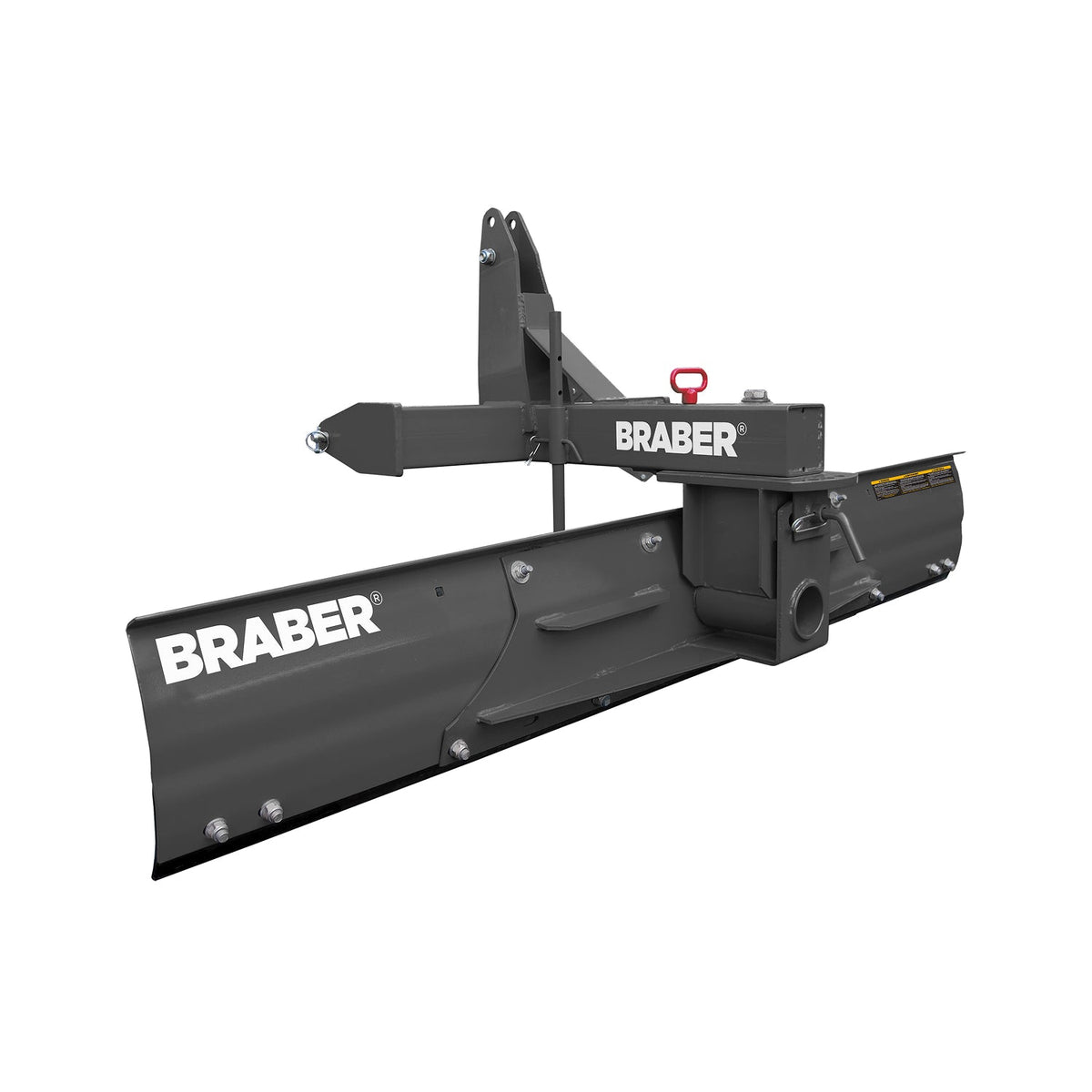

BRABER - 8' Heavy-Duty Hydraulic 3-Point Rear Blade - Hydraulic Angle Cylinder Included - Up to 80 HP - Driveway & Land Grading [BE-RB408HDG]

BRABER BE-RB408HDG Extra-Heavy-Duty Rear Blade is an 86-inch hydraulic 3-point rear blade designed for tractors up to 80 HP. Built for demanding driveway maintenance, land grading, scraping, and material-shaping work, this Category 2 attachment combines a reinforced moldboard, reversible cutting edge, adjustable working positions, and hydraulic blade-angle control. The included angle hydraulic cylinder and hoses allow the blade angle to be adjusted from the tractor, while tilt and offset are mechanically adjusted as standard. Quick-hitch compatibility adds versatility for compatible tractor setups.

Heavy-Duty Grading and Scraping Performance

The BRABER BE-RB408HDG is an extra-heavy-duty rear blade with an 86-inch working width, making it suitable for covering broad passes across driveways, lanes, fields, and other maintained areas. Its reinforced moldboard is built around a 5/16-inch-thick blade surface with an 18-inch moldboard height. A reversible cutting edge helps support extended service life by allowing the blade edge to be repositioned when needed.

Use the blade for driveway grading, land leveling, surface maintenance, scraping, and general material-shaping applications. The adjustable positions allow the blade to be configured for different working requirements, while the hydraulic angle function provides convenient adjustment from the tractor seat when the tractor has the required hydraulic connections.

Key Features

• BRABER BE-RB408HDG extra-heavy-duty 3-point rear blade
• 86-inch working and transport width
• Hydraulic blade-angle adjustment
• Angle hydraulic cylinder and hoses included
• Reinforced moldboard construction
• Reversible blade and cutting edge
• Mechanically adjusted tilt and offset positions as standard
• Quick-hitch compatible
• 6-inch cutting-edge width
• Designed for tractors up to 80 HP
• Two tractor hydraulic ports required

Hydraulic Angle Adjustment

The included hydraulic angle cylinder and hoses provide hydraulic control of the blade angle. Two tractor hydraulic ports are required for operation. Tilt and offset are mechanically adjusted through the blade’s standard mechanical link; optional cylinders are available separately for hydraulic tilt and offset control.

Tractor Compatibility and Requirements

This rear blade is designed for tractors rated up to 80 HP and uses a Category 2, 3-point hitch. It is also quick-hitch compatible. Confirm that the tractor provides a compatible Category 2 hitch, sufficient lifting capacity for the 970-pound attachment, and two hydraulic ports before installation and operation.

Specifications

Optional Accessories and Replacement Parts

Available listed options include the RBHYDSHOE-SET optional skid-shoe kit, BE-RB408TILTCYL optional tilt-cylinder, and BE-RB400FFSETKIT optional offset-cylinder. The listed replacement cutting-edge part number is CE8HYD.
