BRABER - 78" Heavy-Duty 3-Point PTO Boom Flail Mower - Hydraulic Offset & Tilt - 540 RPM PTO, 80-120 HP - Property & Pasture Maintenance [BE-AGF200]

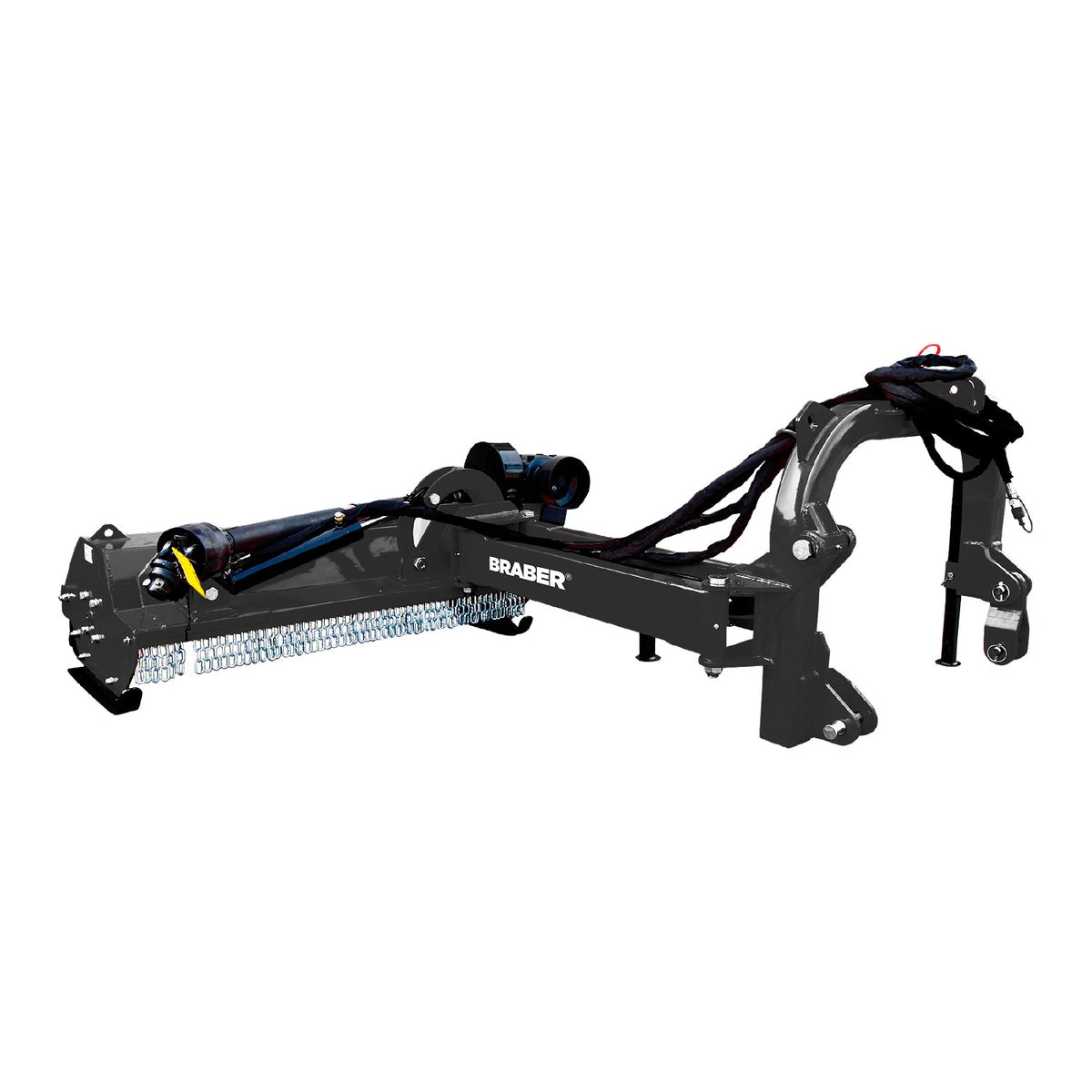

The BRABER BE-AGF200 Heavy-Duty 3-Point PTO Offset Boom Flail Mower is a 78-inch ditch and property-maintenance mower designed to cut beyond the tractor footprint. Its hydraulic offset and hydraulic head tilt allow the flail head to reach ditch banks, road verges, steep embankments, slopes, hedges, and other difficult-to-access areas where a conventional mower may not reach. Powered by a 540 RPM PTO and intended for heavy utility tractors rated from 80 to 120 HP, the BE-AGF200 combines 20 large hammers, a cutting capacity of up to 1 inch, a full-width rear roller, and adjustable skid shoes for demanding grass, weed, brush, and pruning-waste maintenance.

Heavy-Duty Offset and Tilt Mowing

The hydraulic offset hitch positions the mower away from the tractor, helping operators work along property edges, banks, and verges while keeping the tractor on more suitable ground. Hydraulic head tilt provides a range from +90° to −65°, supporting vertical, bank, ditch, and slope cutting applications. These adjustment functions make the BE-AGF200 suitable for maintaining areas that are difficult to service with a standard fixed-position mower.

Flail Cutting Performance

The mower is equipped with 20 large hammers for cutting grass, weeds, brush, and pruning waste. It is specified for material up to 1 inch thick. A side belt drive with a protective shield transfers power to the cutting system, while the full-width rear roller and adjustable skid shoes support cutting-height control and ground following across the working area.

Key Features

• 78-inch working width for property, pasture, verge, ditch, and embankment maintenance
• 3-point PTO offset boom flail mower configuration
• Hydraulic offset beyond the tractor footprint
• Hydraulic head tilt from +90° to −65°
• 20 large hammers for grass, weeds, brush, and pruning waste
• Cutting capacity for material up to 1 inch thick
• Full-width rear roller and adjustable skid shoes
• Side belt drive with protective shield
• 540 RPM PTO operation
• Category 2, 3-point hitch compatibility
• Requires four tractor hydraulic ports or remotes for hydraulic tilt and offset
• 1,764 lb operating weight

Specifications

Compatibility

The BE-AGF200 is compatible with tractors equipped with a Category 2, 3-point hitch and a 540 RPM PTO. It is intended for heavy utility tractors rated from 80 to 120 HP. Confirm that the tractor’s three-point hitch, PTO, hydraulic system, and lifting capacity are suitable for the mower’s 1,764 lb weight before operation.

Tractor Requirements

Operation requires a tractor rated between 80 and 120 HP, a 540 RPM PTO, and four tractor hydraulic ports or remotes to operate the hydraulic offset and hydraulic tilt functions. The tractor must also provide a Category 2, 3-point hitch.
