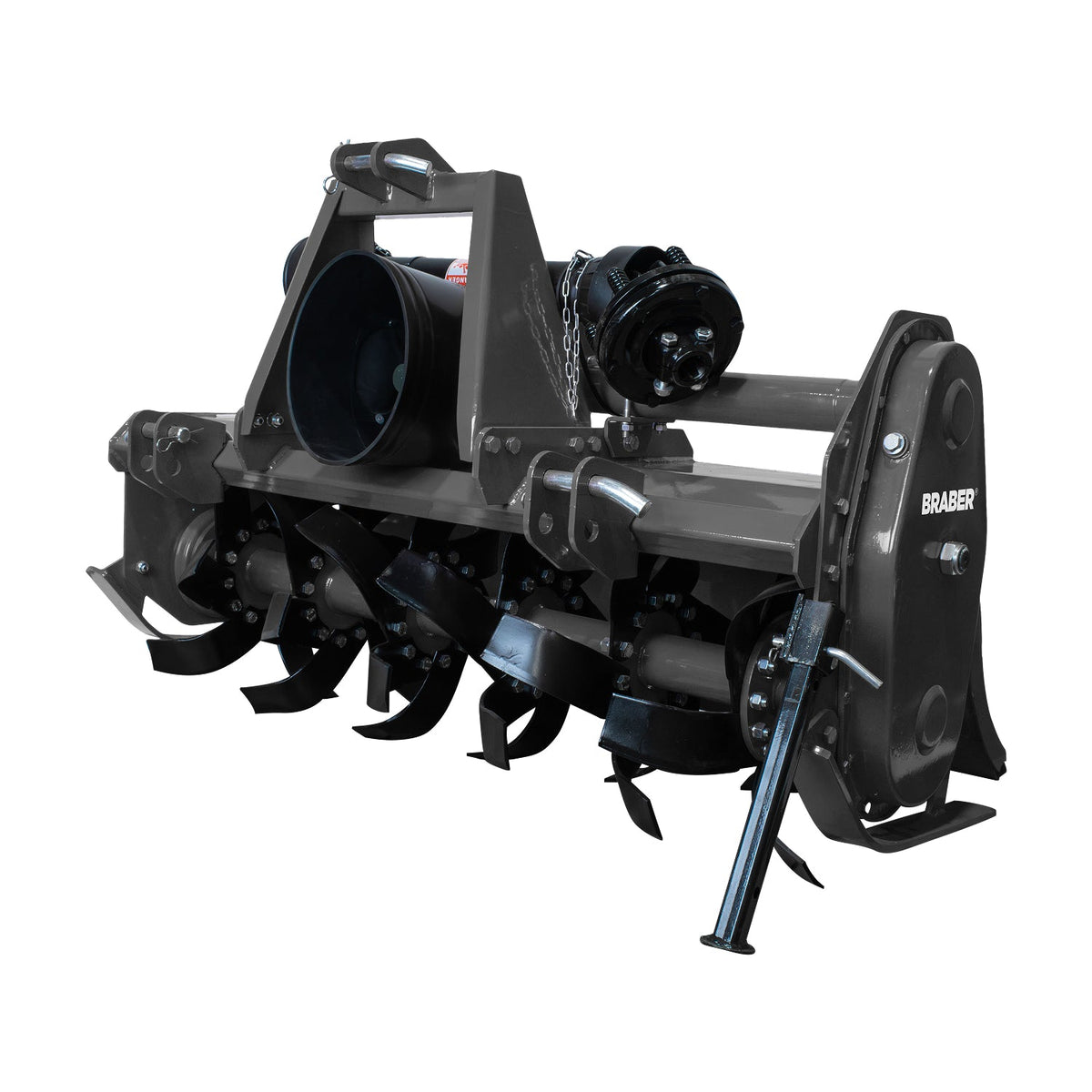

BRABER - 71" Heavy-Duty 3-Point PTO Rotary Tiller - Gear Drive - 540 RPM PTO, 30-50 HP - Soil Preparation & Tillage [BE-IGN180]

The BRABER BE-IGN180 Heavy-Duty Rotary Tiller is a 71-inch, gear-drive 3-point PTO tiller designed for soil preparation and tillage with 30–50 HP utility tractors. Built around a Category 1, fixed-center-mount three-point hitch, it combines a 540 RPM PTO, single-speed gearbox, slip-clutch PTO yoke, and 42 C-shaped tines to help prepare soil across a broad working width. Adjustable skid shoes provide tillage-depth control up to 4-3/4 inches, while the integrated parking stand supports convenient storage when the tiller is not in use.

Heavy-Duty Soil Preparation

The BE-IGN180 is designed for tractor-mounted soil preparation where a wide working pass and dependable mechanical drive are important. Its 71-inch tilling width helps cover more ground per pass, while the gear-drive system transfers PTO power through a single-speed gearbox to the rotor. The tiller is compatible with 30–50 HP utility tractors equipped with the required Category 1, fixed-center-mount three-point hitch.

Key Features

• 71-inch working width for broad soil coverage
• Heavy-duty gear-drive construction
• Single-speed gearbox
• 540 RPM PTO operation
• Slip-clutch PTO yoke for driveline protection
• 42 total C-shaped tines, arranged at 6 tines per flange
• Adjustable skid shoes for controlling tillage depth
• Up to 4-3/4-inch tillage depth
• Parking stand for storage support

Designed for Controlled Tillage

The rotor uses 42 C-shaped tines to work the soil across the full 71-inch tilling width. With six tines per flange, the tine arrangement provides the working configuration specified for this model. Tillage depth is adjustable through the skid shoes, with a maximum specified depth of 4-3/4 inches. This allows the operator to set the implement for the intended soil-preparation application and field conditions.

PTO and Drive System

The BRABER BE-IGN180 is designed for tractors providing a 540 RPM PTO and 30–50 HP. Its gear-drive layout uses a single-speed gearbox, and the slip-clutch PTO yoke provides driveline protection within the implement’s specified configuration. Confirm that the tractor’s PTO, horsepower, and three-point hitch configuration meet the requirements before operation.

Compatibility and Tractor Requirements

This rotary tiller is intended for 30–50 HP utility tractors fitted with a Category 1 three-point hitch and a fixed center mount. The tractor must provide a 540 RPM PTO. The BE-IGN180 is a fixed-center-mount implement and is not specified with hydraulic requirements.

Specifications
