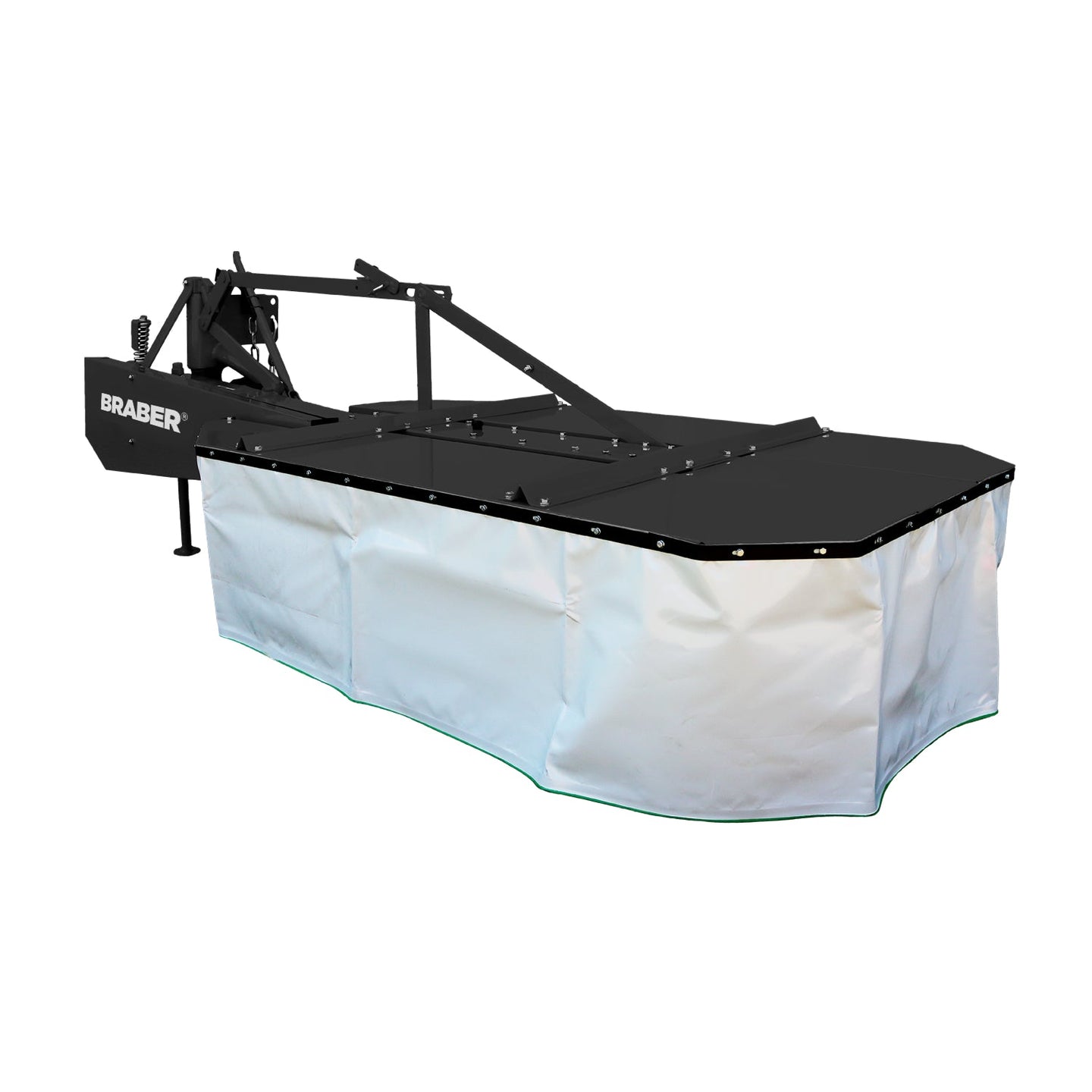

BRABER - 65" 3-Point PTO Drum Mower - 2-Drum Cutting System - Category 2 Hitch, 540 RPM PTO, 30 HP+ - Hay & Forage Equipment [BE-Z175]

The BRABER BE-Z175 65" 3-Point PTO Drum Mower is a rear rotary drum mower designed for utility tractors equipped with a Category 2 three-point hitch and a 540 RPM PTO. Its two-drum cutting system uses six knives and oppositely rotating drums to produce a 1.65 m working width, while the belt-and-pulley drive system supports dependable mowing operation. With adjustable mowing heights, windrow-forming operation, a protective apron, and a spring safety device for obstacle impact protection, the BE-Z175 is suited to hay and forage mowing applications where efficient field coverage and controlled cutting performance are required.

Efficient Two-Drum Cutting System

The BE-Z175 uses two working drums with six knives and a drum rotational speed of 2050 RPM. The oppositely rotating drums support windrow-forming operation, helping organize cut material during mowing. The mower offers adjustable mowing heights of 32, 40, or 44 mm, with a listed minimum cutting height of 1.5 inches.

With a 65-inch working width, equivalent to 1.65 m, the mower is designed to cover a broad swath while remaining compatible with tractors meeting the stated hitch and power requirements. The manufacturer lists a working speed of up to 12 km/h and an advertised working capacity of up to 5.4 acres per hour. The operating manual lists capacity of up to 1.4 hectares per hour.

Built for Practical Field Operation

A belt-and-pulley drive system transfers power to the cutting drums. The BE-Z175 also includes a heavy-duty protective apron, described in the operating features as a protective safety curtain, helping provide guarding around the working area. A spring safety device is included for obstacle impact protection.

The mower is designed for rear three-point mounting and has a transport position for movement between mowing areas. The manual specifies a transport speed of up to 15 km/h and transport clearance of 0.25–0.40 m.

Key Features

• 65-inch / 1.65 m working width
• Two-drum cutting system with oppositely rotating drums
• Six cutting knives
• Belt-and-pulley drive system
• Adjustable mowing height of 32, 40, or 44 mm
• 1.5-inch minimum cutting height listed by the manufacturer
• Windrow-forming operation
• Heavy-duty protective apron or safety curtain included
• Spring safety device for obstacle impact protection
• 540 RPM PTO operation
• Up to 12 km/h working speed
• Up to 15 km/h transport speed

Tractor Compatibility and Requirements

The BRABER BE-Z175 is designed for tractors with a Category 2 three-point hitch, a minimum rated power of 30 HP, and a 540 RPM PTO. The manual specifies a tractor class of 0.6 and a minimum towed weight of 9 kN. Confirm that the tractor’s hitch, PTO, lifting capacity, and operating configuration are suitable for the mower before use.

Specifications
