BRABER - 6' Heavy-Duty 3-Point Cultivator - 7 Double-Spring Tines - Field Cultivation & Seedbed Preparation - Tillage & Soil Preparation [BE-FC7S]

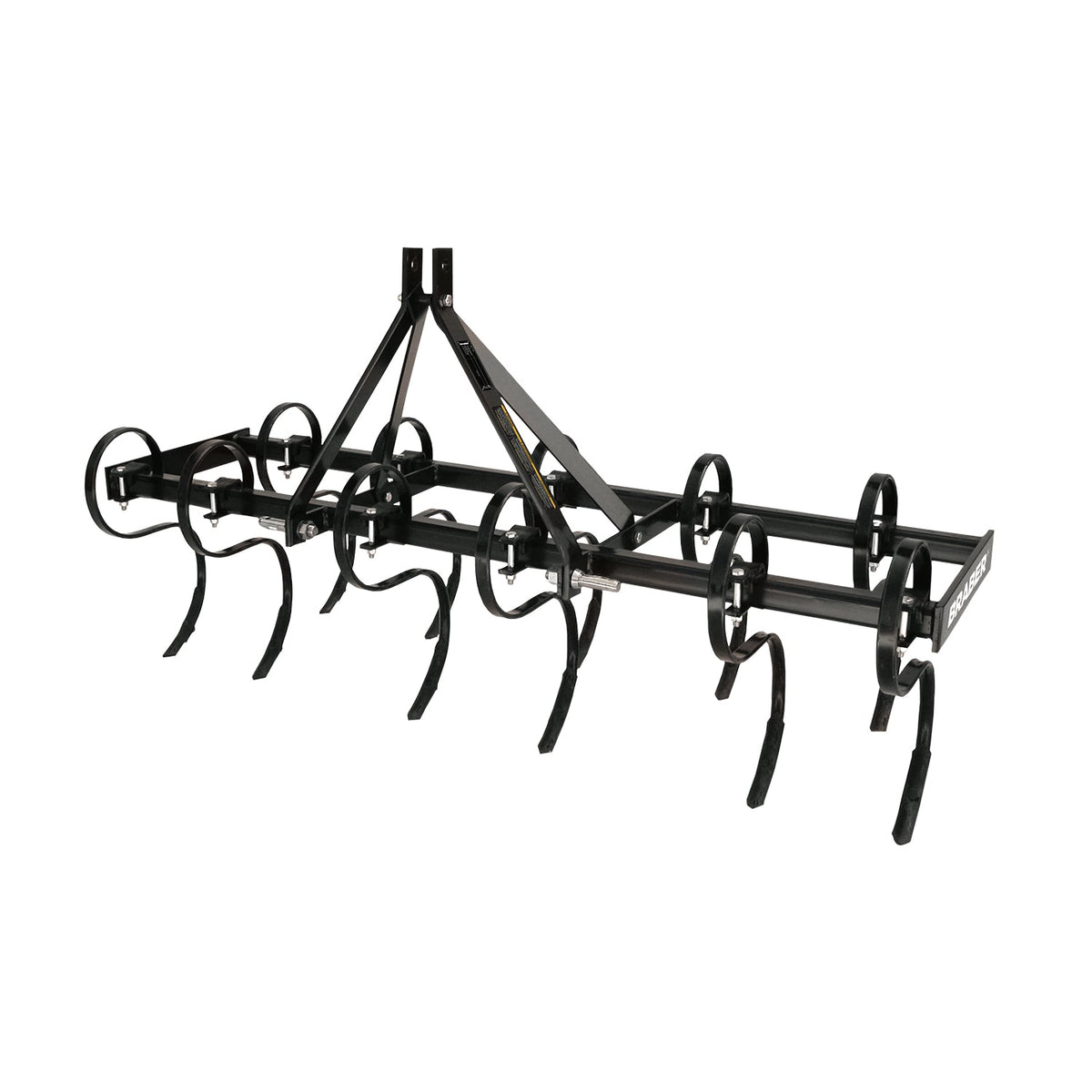

BRABER BE-FC7S Heavy-Duty Spring-Loaded Tine Cultivator is a 6-foot, 3-point-mounted tillage implement designed for field cultivation and seedbed preparation. Built for tractors rated from 35–45 HP, this Category 2 cultivator uses seven double-coil spring tines, heavy-duty shanks, and 2-1/4 in × 12 in reversible shovels to work the soil. Its solid welded frame provides a durable foundation for routine tillage and soil preparation, while the reversible shovels offer a practical wear-part design for continued service. The BE-FC7S is suited to operators who need a heavy-duty cultivator for preparing soil and seedbeds with a compatible tractor.

Key Features

• Heavy-duty spring-loaded design: Seven double-coil spring tines provide the working configuration for cultivation and soil preparation.
• Reversible shovels: Includes 2-1/4 in × 12 in reversible shovels for a serviceable, reversible point arrangement.
• Heavy-duty shanks: Robust shanks support the tine and shovel assemblies during field use.
• Solid welded frame: The welded frame provides the main structural support for this heavy-duty implement.
• 3-point mounted: Designed for use with a Category 2, 3-point tractor hitch.
• 6-foot working width: The current BRABER product specification lists a 66 in width for coverage during tillage operations.
• Tractor compatibility: Rated for tractors in the 35–45 HP range.

Field Cultivation and Seedbed Preparation

The BRABER BE-FC7S is intended for tillage and soil cultivation work, including field cultivation and seedbed preparation. Its seven spring-loaded tine assemblies are configured with reversible shovels to engage the soil across the implement’s 66 in width. The spring-loaded tine construction and heavy-duty shanks are designed as part of the cultivator’s working assembly, while the solid welded frame supports the implement during operation.

As a tractor-mounted attachment, the BE-FC7S provides a straightforward way to connect a cultivator to a properly equipped tractor. The Category 2, 3-point hitch specification should be matched to the tractor before purchase or operation. Confirm that the tractor falls within the specified 35–45 HP rating and is equipped with the required Category 2, 3-point hitch.

Specifications

Compatibility and Tractor Requirements

The BE-FC7S is compatible with tractors equipped with a Category 2, 3-point hitch and rated from 35–45 HP. The tractor should be checked for both hitch compatibility and horsepower suitability before use. This implement is not specified with a PTO requirement.

Replacement Wear Parts

Replacement parts identified for the BE-FC7S include point 10320002, plow bolt 10260137, and plow nut 10280033.
