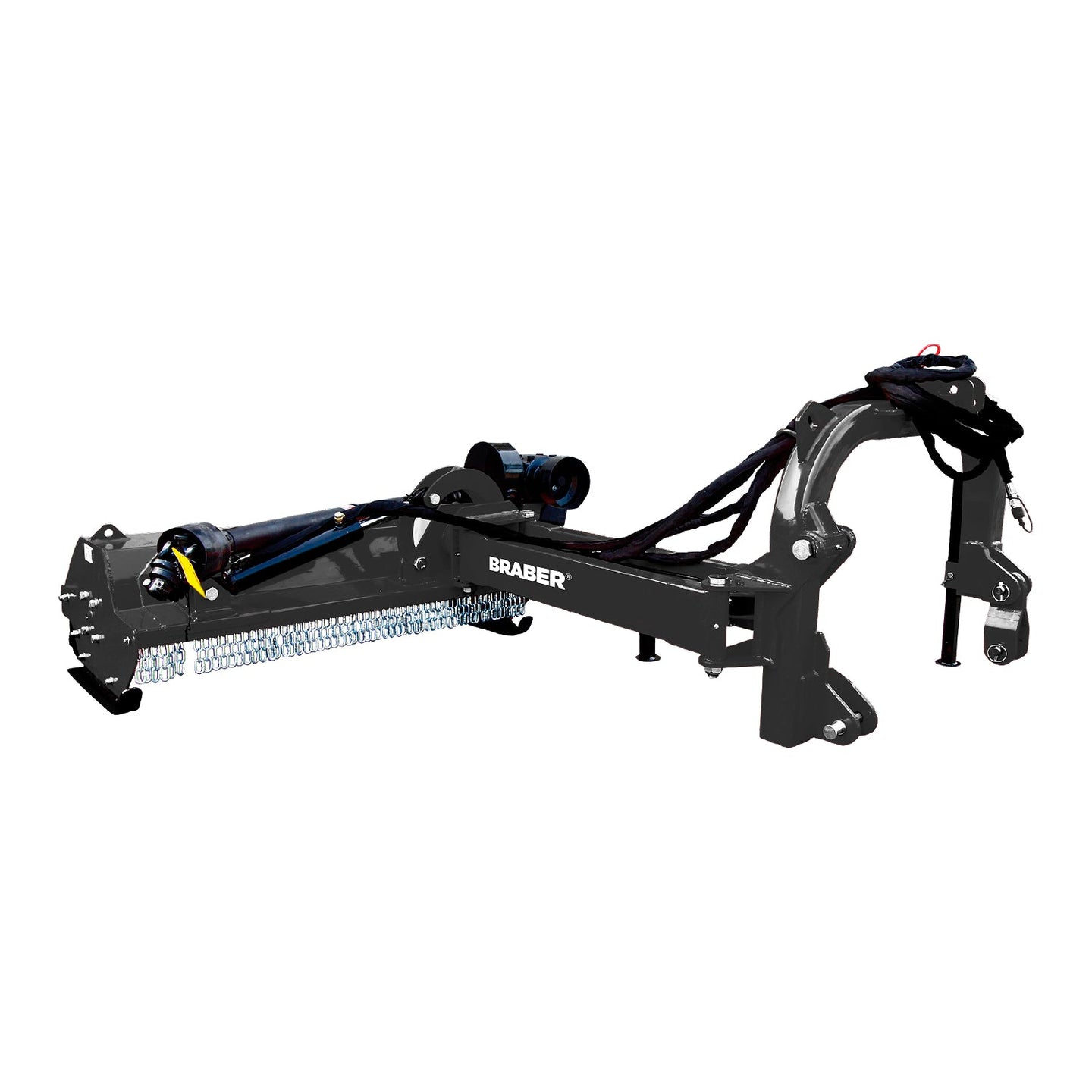

BRABER - 50" Light-Duty 3-Point PTO Boom Flail Mower - Hammer Blades - Hydraulic Offset & Tilt, 20-40 HP - Property & Pasture Maintenance [BE-AGL125F]

The BRABER BE-AGL125F 50" Light-Duty 3-Point PTO Boom Flail Mower is a versatile offset flail mower for tractors rated from 20–40 HP. Designed for property and pasture maintenance, it combines a Category 1 three-point hitch, 540 RPM PTO drive, hydraulic offset, and hydraulic tilt to help maintain ditch banks, canal banks, slopes, road verges, hedges, orchards, and vineyards. Its 20 hammer blades provide the primary cutting configuration, while the full-width rear roller supports height control during operation.

Product Overview

The BE-AGL125F is built for mowing areas where a conventional centered implement may not provide the required reach or positioning. Its hydraulic offset hitch allows the flail head to be moved laterally, while the hydraulic tilt range of +90° to -53° supports work across uneven ground, banks, and sloped areas. The mower is driven by a 540 RPM PTO and uses a cast-iron gearbox for power transmission.

With a 50-inch working width and a 695 lb operating weight, this BRABER mower is suited to tractors equipped with a Category 1 three-point hitch and rated between 20 and 40 HP. A full-width rear roller provides height control and follows the ground behind the cutting head.

Key Features

• 50-inch working width for property, pasture, verge, and vegetation maintenance
• Category 1 three-point hitch mounting
• Designed for tractors rated 20–40 HP
• 540 RPM PTO drive
• 20 hammer blades included as the cutting tools
• Optional grass knives available as an alternative cutting-tool configuration
• Hydraulic lateral offset for positioning the flail head to the side of the tractor
• Hydraulic tilt range from +90° to -53°
• Cast-iron gearbox
• Full-width rear roller for height control
• Suitable for ditch banks, canal banks, slopes, road verges, hedges, orchards, and vineyards

Applications

The hydraulic offset and tilt functions make the BE-AGL125F suitable for maintaining vegetation in locations that require angled or offset mowing. Intended applications include ditch banks, canal banks, slopes, road verges, hedges, orchards, vineyards, properties, and pastures. The flail head is equipped with 20 hammer blades, with optional grass knives also specified for this model.

Specifications

Tractor Compatibility and Requirements

The BRABER BE-AGL125F requires a tractor rated from 20 to 40 HP and equipped with a Category 1 three-point hitch. The tractor must also provide a 540 RPM PTO for the mower drive.

Hydraulic Requirements

Tractor hydraulic remotes are required to operate the mower’s hydraulic tilt and hydraulic offset functions. The manufacturer does not specify the number of hydraulic ports required.
