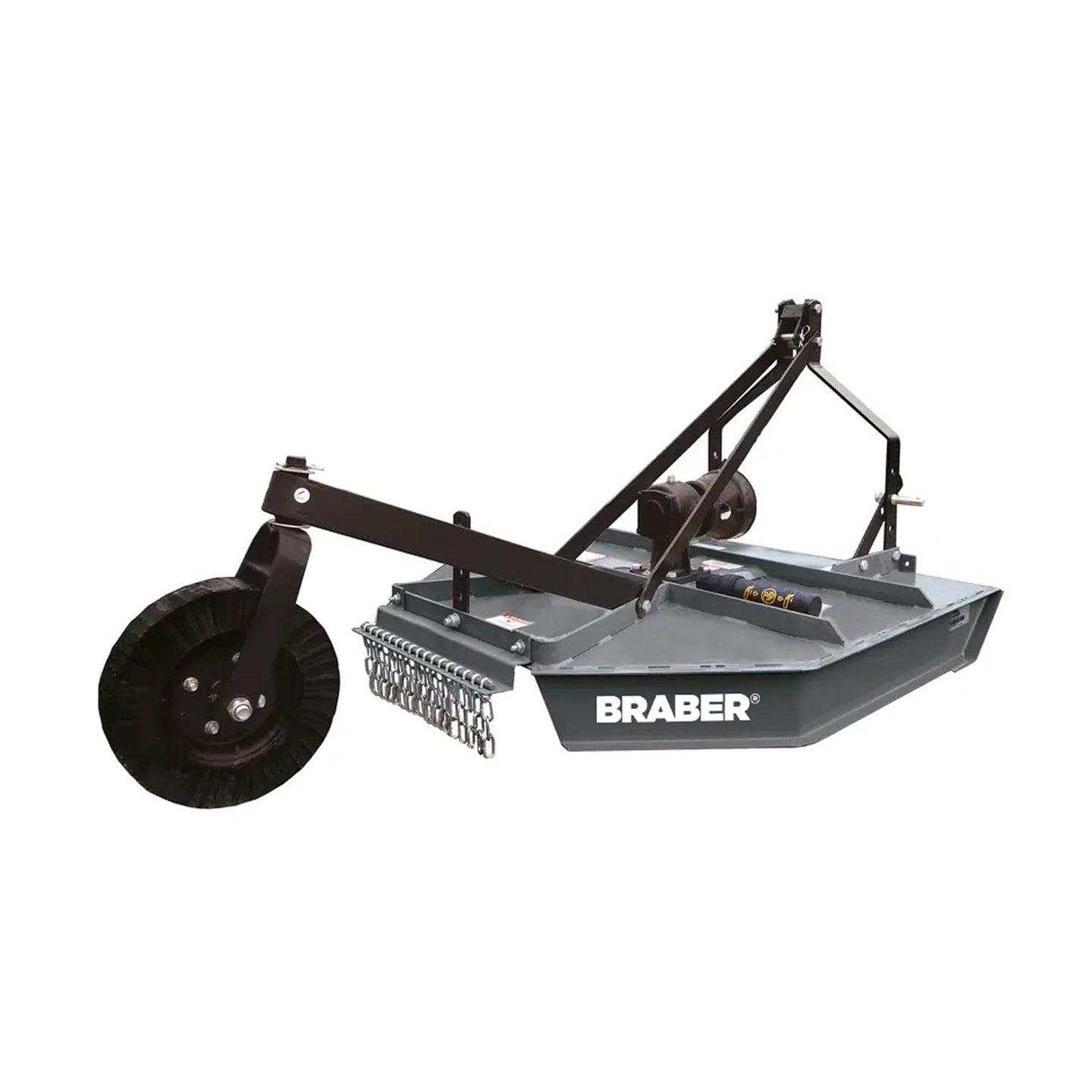

BRABER - 5' Heavy-Duty 3-Point PTO Rotary Cutter - Slip-Clutch PTO Driveline - Category 1 Hitch, Up to 70 HP [BE-RC5HDG]

BRABER BE-RC5HDG Heavy-Duty 5 ft 3-Point PTO Rotary Cutter is a robust rotary cutter designed for tractor-mounted vegetation management and field-maintenance work. Built by BRABER Equipment, this 60-inch cutter features a heavy-duty deck and side beams, a 70 HP gearbox, two underside blades, and a 540 RPM slip-clutch PTO driveline. Its Category 1 three-point hitch is compatible with Category 1 quick-hitch systems, while the flexible floating hitch, adjustable cutting height, heavy-duty laminated tail wheel, rear safety chain, and stump protection support practical operation across suitable tractor applications.

Key Features

• 60-inch (5-foot) deck width for efficient rotary cutting coverage
• Rated for tractors up to 70 HP
• 540 RPM PTO operation with slip-clutch protection
• Category 1 three-point hitch and Category 1 quick-hitch compatible design
• Two underside blades with stump protection
• Adjustable cutting height for application flexibility
• Flexible floating hitch for supported ground-following operation
• Heavy-duty laminated tail wheel
• Heavy-duty deck and side beams
• Rear safety chain
• 6-year gearbox warranty

Built for Heavy-Duty Cutting

The BE-RC5HDG combines a 60-inch cutting deck with a 70 HP gearbox to provide a heavy-duty rotary cutting solution for compatible tractors. Its two-blade underside configuration is equipped with stump protection, helping protect the cutting system when working around supported ground conditions and obstacles.

The cutter’s heavy-duty deck and side beams provide the primary structural design for demanding use. The adjustable cutting height allows the operator to set the cutter for the intended application, while the flexible floating hitch helps the implement follow changing ground contours during operation.

Slip-Clutch PTO Driveline

The 540 RPM PTO system uses a slip clutch to provide driveline protection during operation. The PTO configuration is intended for tractors with a matching 540 RPM PTO and suitable Category 1 three-point equipment setup. The gearbox is rated for tractors up to 70 HP.

Hitch, Tail Wheel and Safety Equipment

The BRABER BE-RC5HDG uses a Category 1 three-point hitch and is compatible with Category 1 quick-hitch systems. A heavy-duty laminated tail wheel supports the rear of the cutter, while the flexible floating hitch contributes to the implement’s operating configuration. A rear safety chain is included as part of the cutter’s safety equipment.

Specifications

Compatibility and Tractor Requirements

The BE-RC5HDG is compatible with tractors equipped with a Category 1 three-point hitch or Category 1 quick-hitch system, a matching 540 RPM PTO, and sufficient capacity for an implement weighing 700 lb. It is rated for tractors up to 70 HP. Confirm that the tractor’s hitch category, PTO speed, lifting capacity, and operating setup are suitable before use.
