BRABER - 5' Deluxe 3-Point Box Blade - Reversible Cutting Edges - Category 1 Hitch, Up to 50 HP - Farm & Acreage Grading [BE-BBR5ND]

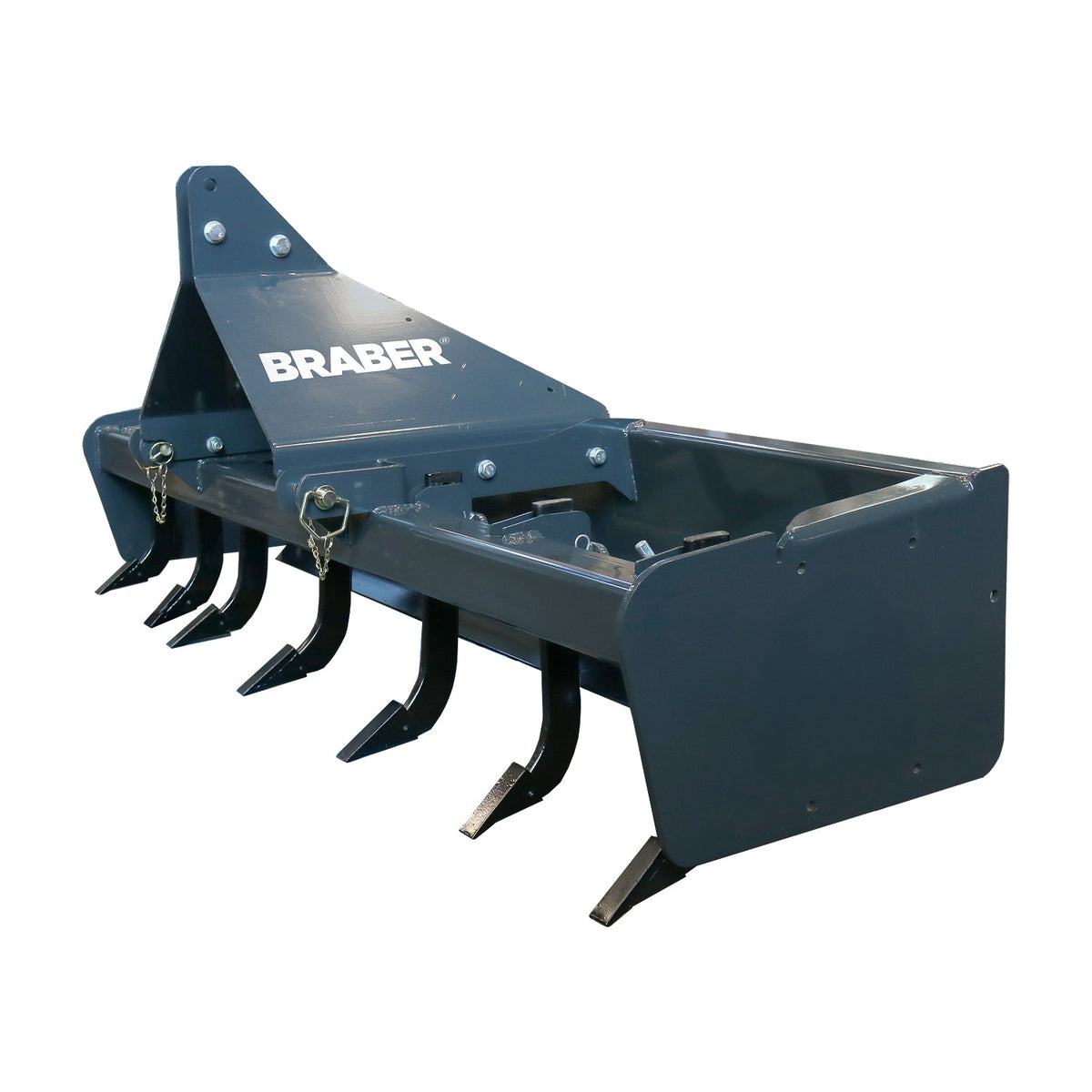

BRABER BE-BBR5ND 5 ft Deluxe Heavy-Duty Box Blade is a 60-inch, Category 1 three-point box blade designed for tractors up to 50 HP. Built for farm, acreage, driveway, and property grading applications, it combines five adjustable/reversible shanks with a 17-inch moldboard, reinforced side panels, and a replaceable cutting edge to help move, loosen, and redistribute material efficiently. Its enclosed upper frame and formed reinforced sides provide a durable structure for demanding earthworking tasks, while quick-hitch compatibility supports convenient attachment to compatible tractor systems.

Built for Farm and Acreage Grading

The BRABER BE-BBR5ND is a heavy-duty 3-point box blade suited to grading and ground-maintenance work where controlled material movement is required. The 60-inch working width provides a practical balance between coverage and maneuverability for compatible tractors rated up to 50 HP. Use the box blade for maintaining driveways, leveling uneven areas, moving loose material, and general farm or acreage grading applications supported by the tractor and implement setup.

Durable Construction and Replaceable Wear Parts

This box blade features a 17-inch moldboard and 3/8-inch side panels. The enclosed upper frame and formed reinforced sides contribute to the implement’s heavy-duty construction, helping it withstand regular grading use. A replaceable cutting edge is included for serviceability as the working edge wears. The implement uses five adjustable/reversible shanks, allowing the shanks to be configured for the task and helping extend usable wear life through reversible design.

Key Features

• 5 ft / 60 in working width
• Heavy-duty three-point box blade for farm and acreage grading
• Rated for tractors up to 50 HP
• Category 1, 3-point hitch
• Quick-hitch compatible
• Five adjustable/reversible shanks
• 17 in moldboard height
• 3/8 in side panel thickness
• Enclosed upper frame
• Formed reinforced sides
• Replaceable cutting edge
• 502 lb current manufacturer-listed weight

Compatibility and Tractor Requirements

The BE-BBR5ND is intended for tractors equipped with a Category 1, 3-point hitch and rated up to 50 HP. It is also listed as quick-hitch compatible. Confirm that the tractor’s three-point hitch configuration, lifting capacity, and operating setup are suitable for the 502 lb implement before use.

Replacement Parts

Specified replacement components include the BB2G replacement shank and BBSTHDG replacement shank tip. The replaceable cutting edge is designed to support ongoing service and maintenance of the implement.

Specifications
