BRABER - 5" 3-Point PTO Wood Chipper - 24-3/4" Flywheel, 270° Discharge Chute - Cat 1 Hitch, 18-45 HP - Land Clearing Equipment [BE-WCX5]

SKU BE-WCX5
Starting at $3,32100
Starting at $3,32100

Add your items to the Cart to begin to build and price your package!


When you're ready to take the next step, please reach out to us for a quote.

*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Pricing may not include freight, assembly, finance, delivery, or pdi fees.
*Manufacturer pricing subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

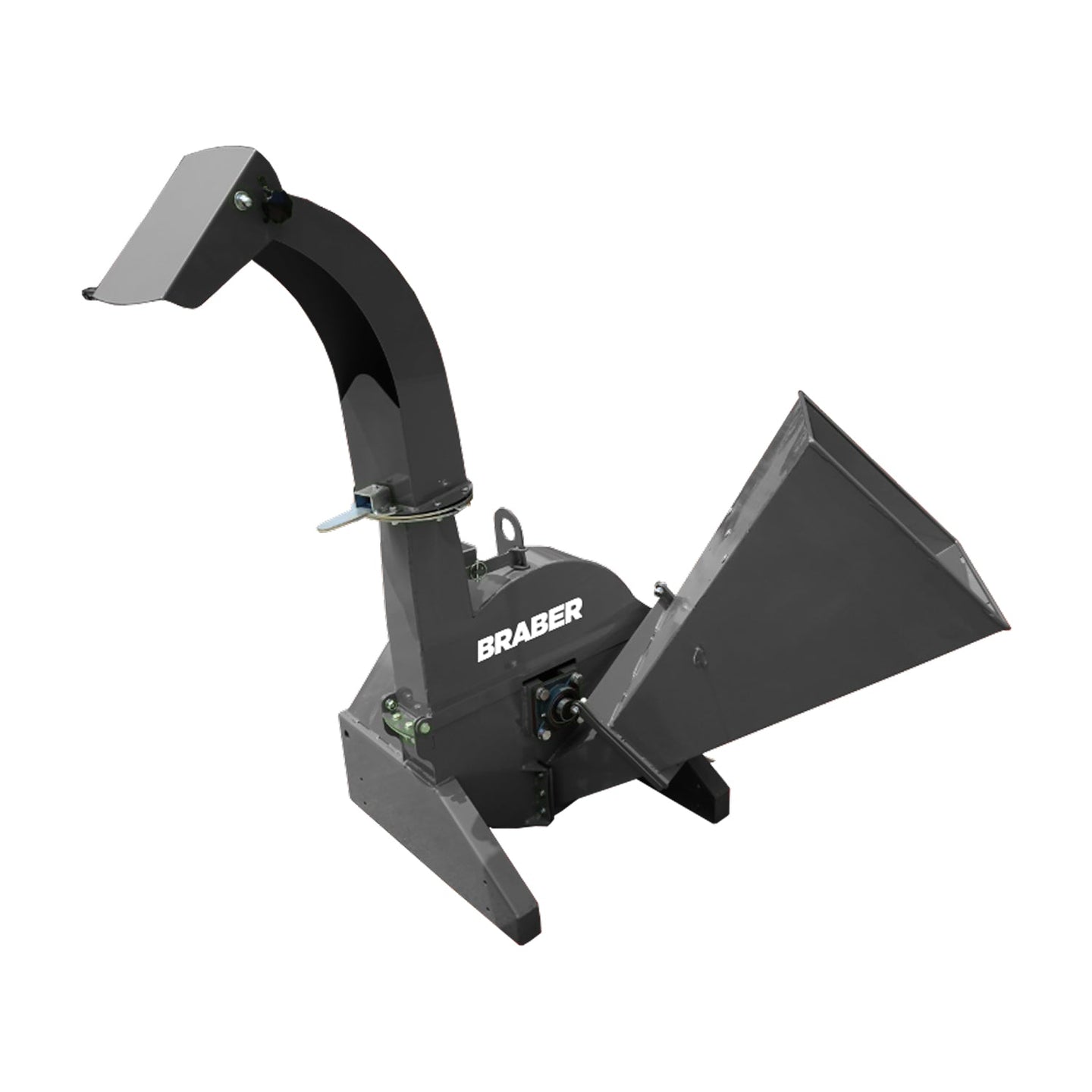

The BRABER BE-WCX5 is a 5-inch, three-point PTO wood chipper designed for tractor-mounted land-clearing, property maintenance, and brush-management work. Built for tractors rated from 18–45 HP, this BRABER Equipment chipper combines a 24-3/4-inch flywheel rotor, hardened cutting blades, and a 270° rotating discharge hood to process branches and wood while directing chips where they are needed. Its Category 1 three-point hitch and shear-pin PTO yoke provide compatibility with appropriately equipped tractors, while the 485 lb machine weight and 43 x 55 x 66 inch overall dimensions support a practical tractor-mounted configuration.

Efficient 5-Inch Chipping Capacity

The BE-WCX5 is rated for material up to 5 inches, with a 5 x 10 inch chipper housing opening. Its 24-3/4-inch rotor weighs 125 lb and uses a hardened blade system with four rotating rotor knives and one fixed blade. This cutting arrangement is designed for consistent processing during land-clearing and wood-chipping tasks. Easy flywheel service access helps simplify access for maintenance, while replacement knife specifications are clearly defined for ongoing servicing.

Adjustable Discharge Direction

The discharge hood rotates through 270°, allowing the operator to position the chip discharge across a broad range of directions. The multi-positional discharge angle helps place chips more conveniently for collection, spreading, or movement away from the work area. The discharge hood height is 60 inches.

Key Features

  • 5-inch maximum chipping capacity
  • Three-point PTO tractor-mounted design
  • Category 1 / Cat 1 three-point hitch
  • Shear-pin PTO yoke
  • 18–45 HP tractor rating
  • 540–1000 PTO RPM speed range
  • 24-3/4-inch flywheel rotor
  • 125 lb rotor weight
  • Hardened blade system with 1 fixed and 4 rotating blades
  • 5 x 10 inch chipper housing opening
  • 270° rotating discharge hood
  • Multi-positional discharge angle
  • 60-inch discharge hood height
  • Easy flywheel service access

Tractor Requirements

The BRABER BE-WCX5 is intended for tractors rated from 18 to 45 HP and equipped with a Category 1 three-point hitch. The tractor PTO must support the specified 540–1000 RPM range. The chipper uses a shear-pin PTO yoke.

Specifications

Brand BRABER Equipment
Model BE-WCX5
Product type 3-point PTO wood chipper
Chipper capacity 5 in
Tractor horsepower rating 18–45 HP
PTO speed range 540–1000 RPM
Hitch Category 1 / Cat 1, 3-point hitch
PTO yoke Shear-pin
Overall dimensions 43 x 55 x 66 in (L x W x H)
Rotor diameter 24-3/4 in
Rotor weight 125 lb
Cutting system 4 rotor knives; hardened blade system with 1 fixed and 4 rotating blades
Chipper housing opening 5 x 10 in
Discharge hood rotation 270°
Discharge hood height 60 in
Machine weight 485 lb
Factory color Grey

Replacement Knife Information

Replacement flywheel knives are identified as part number WCX5-0101, with four required. The replacement stationary knife is identified as part number WCX5-0102, with one required.
