BRABER - 49" Skid Steer Double Bale Spear - Dual-Prong Design - Heavy-Duty Round Bale Handling - Hay & Material Handling [BE-BSD49BO500G]

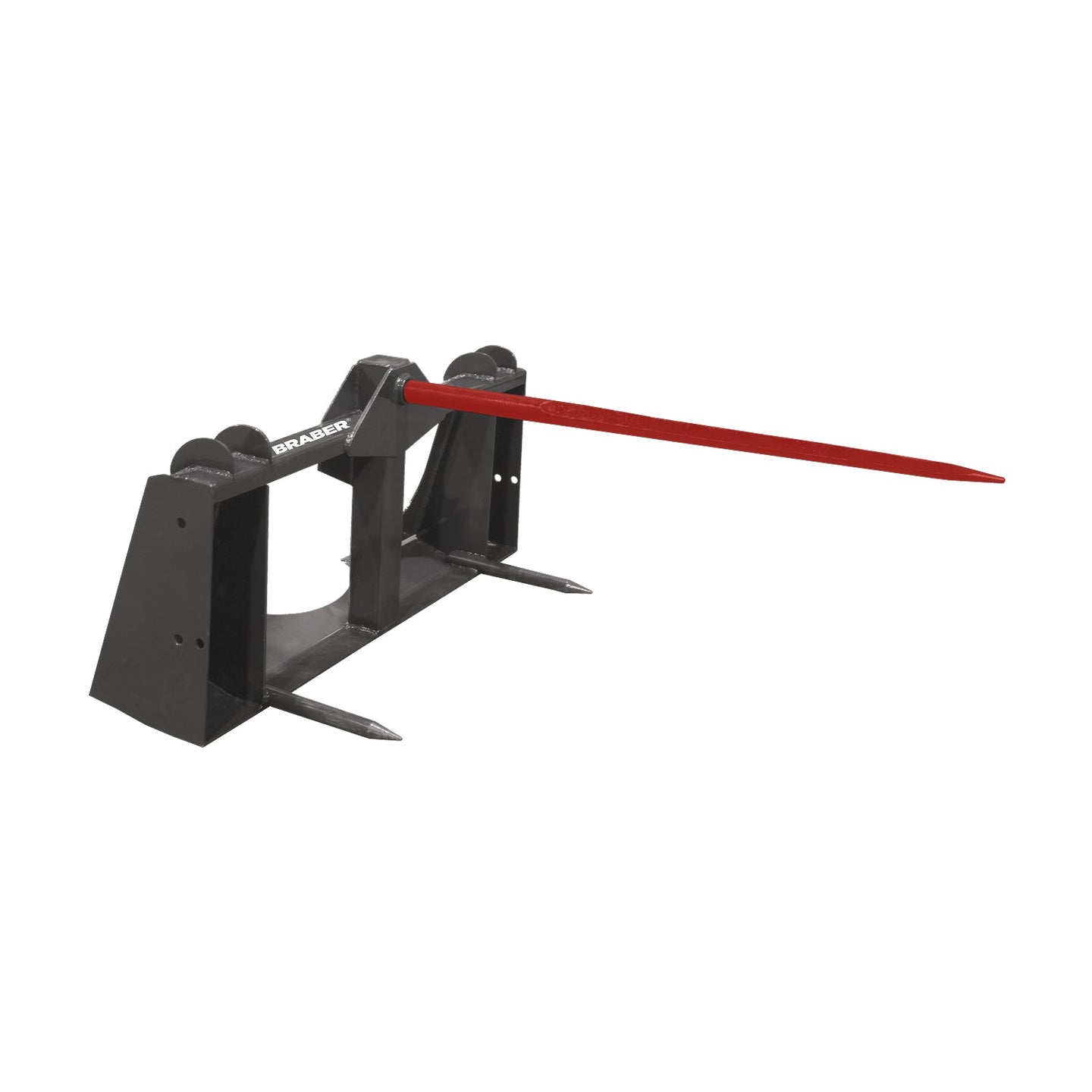

The BRABER BE-BSD49BO500G Skid Steer Double-Prong Bale Spear is a heavy-duty mechanical attachment designed for handling large round and large square hay bales. Its universal skid steer quick-attach mount supports use with skid steers and compact track loaders, while the dual-prong layout helps limit bale rotation for more level, secure transport. With a 2,000 lb load rating, 49-inch tapered forged tines, and a 44-inch effective use length, this bale spear is suited to moving and positioning substantial bales during hay handling and material-handling tasks.

Heavy-Duty Bale Handling

Built for demanding bale-handling work, the BRABER double-prong bale spear provides two forged spring-steel tines to support large round and large square bales. The double-prong configuration is intended to help prevent bale rotation, allowing the bale to remain more stable while it is being lifted and transported. The attachment is rated for loads up to 2,000 lb, subject to the capabilities and operating requirements of the carrier.

The 49-inch tine length provides substantial reach into the bale, while the 44-inch effective use length identifies the practical tine length available for bale engagement. Tapered forged tines are designed for insertion into the bale and provide the working interface between the attachment and the material being handled.

Key Features

• BRABER BE-BSD49BO500G double-prong skid steer bale spear
• Universal skid steer quick-attach mount
• Compatible with skid steers and compact track loaders
• 2,000 lb rated load capacity
• Dual-prong layout intended to help prevent bale rotation
• 49-inch tapered forged tines
• 44-inch effective use length
• Forged spring-steel tine construction
• Designed for large round and large square hay bales
• Mechanical attachment with no hydraulic system specified
• 180 lb product weight

Applications

This bale spear is intended for agricultural and material-handling applications involving large round and large square hay bales. It can be used with compatible skid steers and compact track loaders equipped with a universal skid steer mount. The dual-prong design is intended to support more controlled handling by reducing bale rotation during lifting and transport.

Compatibility and Mounting

The BRABER BE-BSD49BO500G uses a universal skid steer quick-attach mount. It is compatible with skid steers and compact track loaders that use this mounting standard. Confirm that the carrier is equipped with a compatible universal skid steer attachment interface and that its operating capacity is appropriate for the intended bale and attachment load.

Specifications

Tractor and Carrier Requirements

This attachment is intended for use with skid steers and compact track loaders fitted with a universal skid steer quick-attach mount. No hydraulic requirements are specified because the BRABER BE-BSD49BO500G is described as a mechanical bale spear. The carrier must be suitable for the attachment’s 180 lb weight and the intended bale load, up to the stated 2,000 lb rating.
