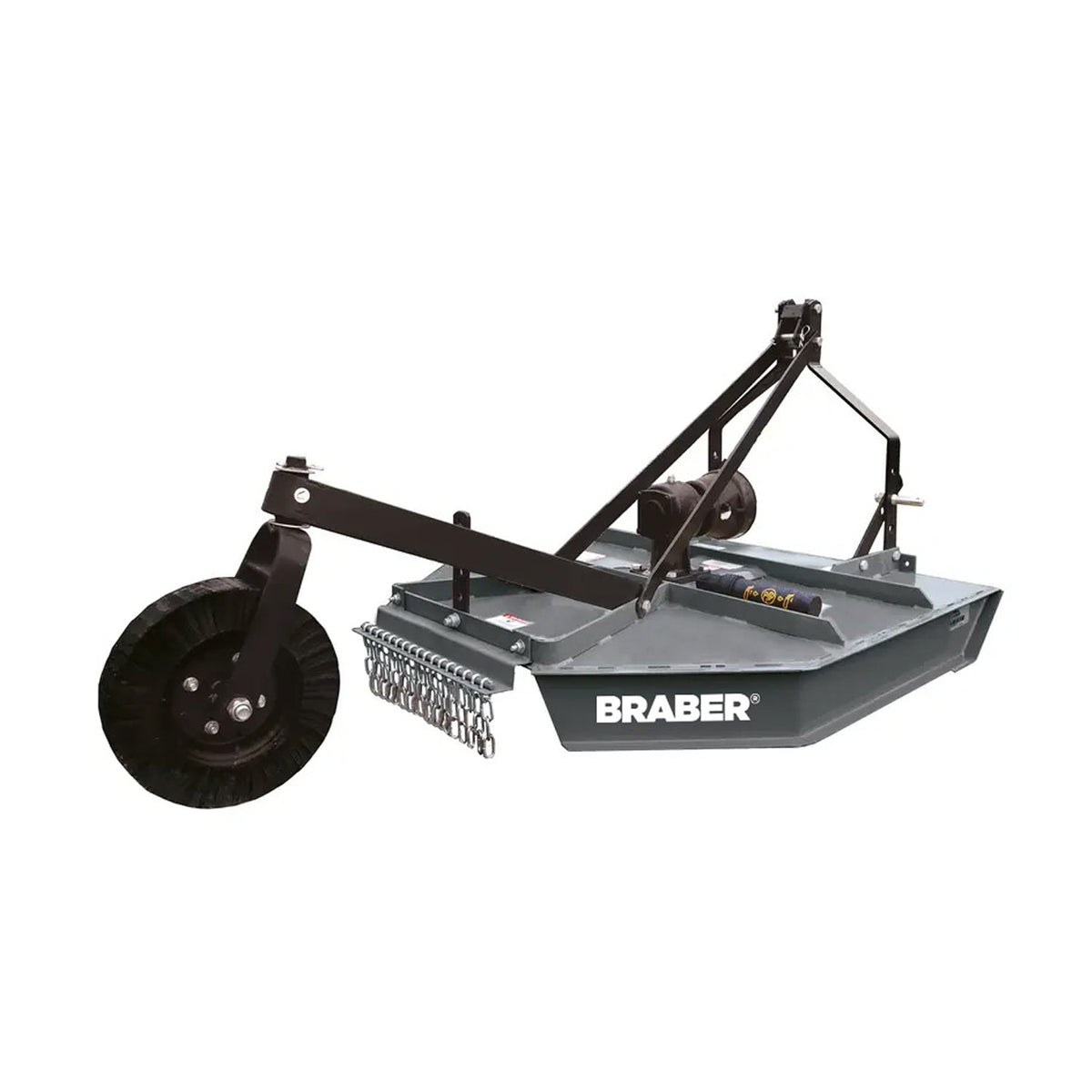

BRABER - 48" 3-Point PTO Rotary Cutter - Category 1 Hitch - 540 RPM PTO, 1"-8" Cut, Up to 50 HP - Pasture & Property Maintenance [BE-RC400G]

The BRABER BE-RC400G 48-inch 3-Point PTO Rotary Cutter is a compact rotary cutter designed for pasture and property maintenance with tractors up to 50 HP. Its Category 1, 3-point hitch and flexible floating hitch support practical attachment and terrain-following operation, while the 540 RPM shear-bolt PTO drives two underside blades for cutting heights adjustable from 1 to 8 inches. A 50 HP gearbox with stump protection, heavy-duty deck construction, a laminated tail wheel, and a rear safety chain provide a durable configuration for routine vegetation management.

Product Highlights

With a 48-inch working width, the BE-RC400G is sized for tractors rated up to 50 HP and provides adjustable cutting performance for a range of pasture and property-maintenance requirements. The flexible floating hitch helps the cutter follow changing ground contours, while the heavy-duty laminated tail wheel supports the rear of the implement during operation.

• 48-inch working width: Provides a practical cutting width for the BE-RC400G rotary cutter.
• Category 1, 3-point hitch: Designed for compatible tractors using a Category 1 three-point mounting system.
• Flexible floating hitch: Helps the cutter accommodate ground variation during use.
• 540 RPM shear-bolt PTO: Transfers tractor power to the cutter while incorporating a shear-bolt drive arrangement.
• Two underside blades: The cutting system uses two blades mounted beneath the deck.
• Adjustable cutting height: Cutting height can be set from 1 inch to 8 inches.
• 50 HP gearbox with stump protection: The gearbox is rated for tractors up to 50 HP and includes stump protection.
• Heavy-duty construction: Features a 3.5 mm top deck and 3.75 mm side deck.
• Laminated tail wheel: Heavy-duty tail-wheel construction supports the cutter during operation.
• Rear safety chain: Included as part of the cutter’s safety equipment.

Cutting and PTO System

The BRABER BE-RC400G uses a 540 RPM PTO connection and a shear-bolt drive system. Two underside blades provide the cutting action, with the height adjustable between 1 and 8 inches to suit different maintenance requirements. The 50 HP gearbox includes stump protection to help protect the gearbox when the cutter encounters stumps or similar obstacles during operation.

Durable Implement Construction

The cutter combines a heavy-duty deck and side beams with a 3.5 mm top deck and 3.75 mm side deck. A heavy-duty laminated tail wheel supports the rear of the unit, while the rear safety chain is included as standard safety equipment. The flexible floating hitch complements the three-point mounting system for a versatile implement arrangement.

Tractor Requirements and Compatibility

The BE-RC400G is intended for tractors rated up to 50 HP and equipped with a Category 1, 3-point hitch. The tractor PTO must provide 540 RPM. Confirm that the tractor and implement are compatible with the Category 1 mounting configuration and required PTO specification before operation.
