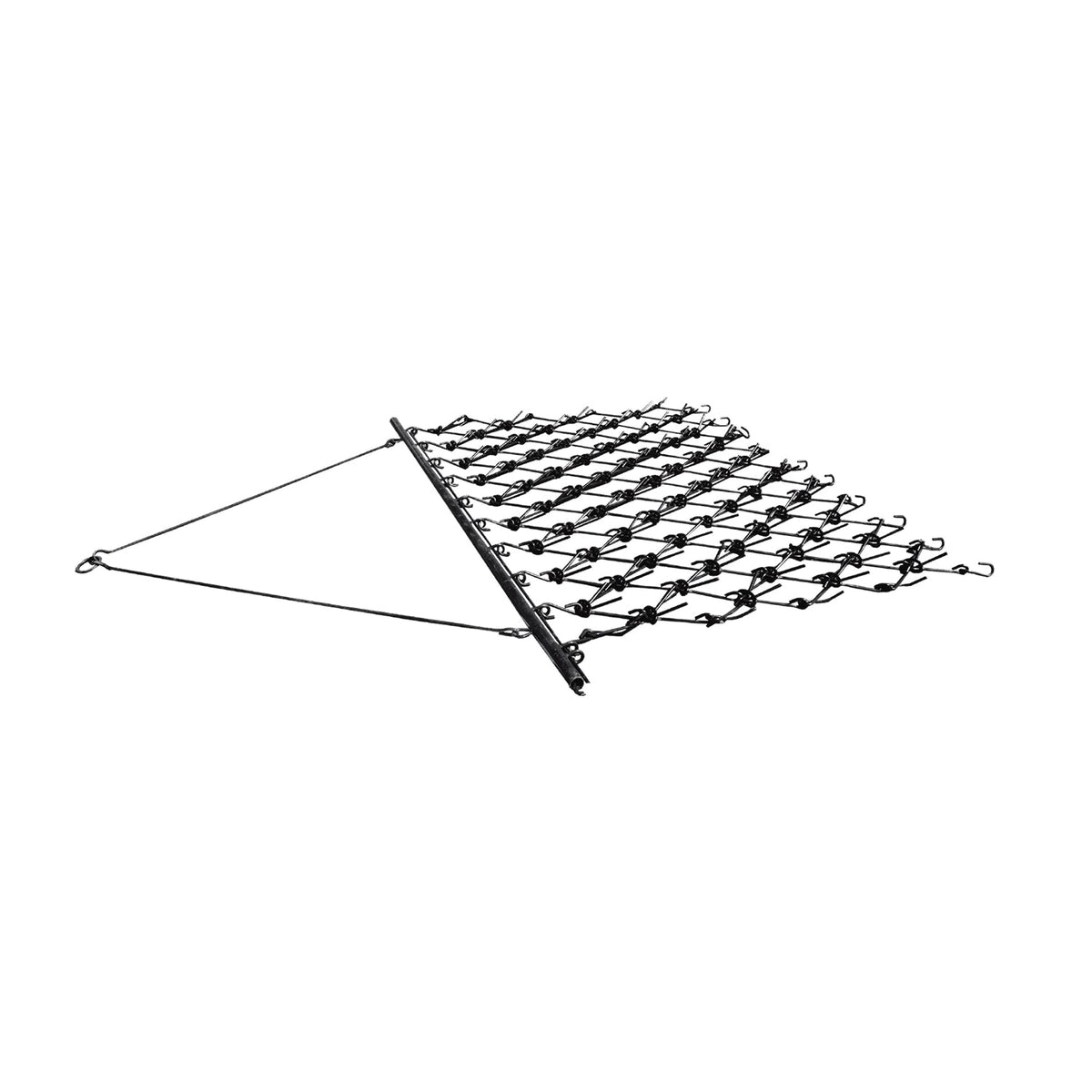

BRABER - 4' Tow-Behind Chain Harrow - 1/2" Tines - Drag Poles Included for Pasture & Arena Leveling - Pasture & Soil Maintenance [BE-CH4G]

The BRABER BE-CH4G 4' Tow-Behind Chain Harrow is a 1/2-inch steel chain harrow designed for practical pasture and soil maintenance, including arena and pasture leveling. Its 48-inch working width and 60-inch bed length provide a compact working profile for leveling surfaces and breaking up uneven material, while the included drag poles help support controlled towing and operation. With 1/2" x 4-1/2" tines, a white color-coded pole, and a 100 lb overall weight, this tow-behind harrow is suited to routine maintenance work where a straightforward, durable ground-contact implement is required.

Product Features

• 4-foot working width: Covers a 48-inch section width for pasture and arena leveling.
• 1/2-inch steel chain harrow: Built with steel harrow construction for ground-contact maintenance work.
• 1/2" x 4-1/2" tines: Provides the specified tine configuration for harrowing and surface maintenance.
• Drag poles included: Supplied with a pole assembly for tow-behind use.
• 60-inch bed length: Provides the verified front-to-back bed dimension.
• White color-coded pole: The pole is identified in white for easy recognition.
• Compact 100 lb design: Offers a manageable implement size for regular maintenance applications.

Pasture and Arena Maintenance

The BRABER BE-CH4G is intended for pasture and soil maintenance as well as arena and pasture leveling. Its chain harrow layout and specified steel tines are suited to routine surface work, including helping level ground and maintain working areas. The 48-inch section width provides a focused coverage area, making the harrow appropriate for applications where a compact tow-behind implement is preferred.

Included Drag Poles

Drag poles are included with the harrow and form part of its tow-behind configuration. The pole is specified as white, providing a distinctive, color-coded component. For replacement or service requirements, the catalogue identifies the pole assembly replacement part as CH4G-PA.

Specifications

Replacement Parts

Verified catalogue replacement parts for the BRABER BE-CH4G include the following components:

• CH122: Hook bar replacement part
• CH4G-PA: Pole assembly replacement part
• CH127: Blanket hook replacement part

Application

Use the BRABER BE-CH4G for pasture and soil maintenance, arena leveling, and pasture leveling applications. Its 48-inch width, 60-inch bed length, steel construction, and included drag poles provide a dedicated configuration for tow-behind surface maintenance.
