BRABER - 25-Ton Workshop Log Splitter - PowerEase Engine - Horizontal/Vertical Firewood Splitting - Firewood Processing Equipment [BE-LS25ER]

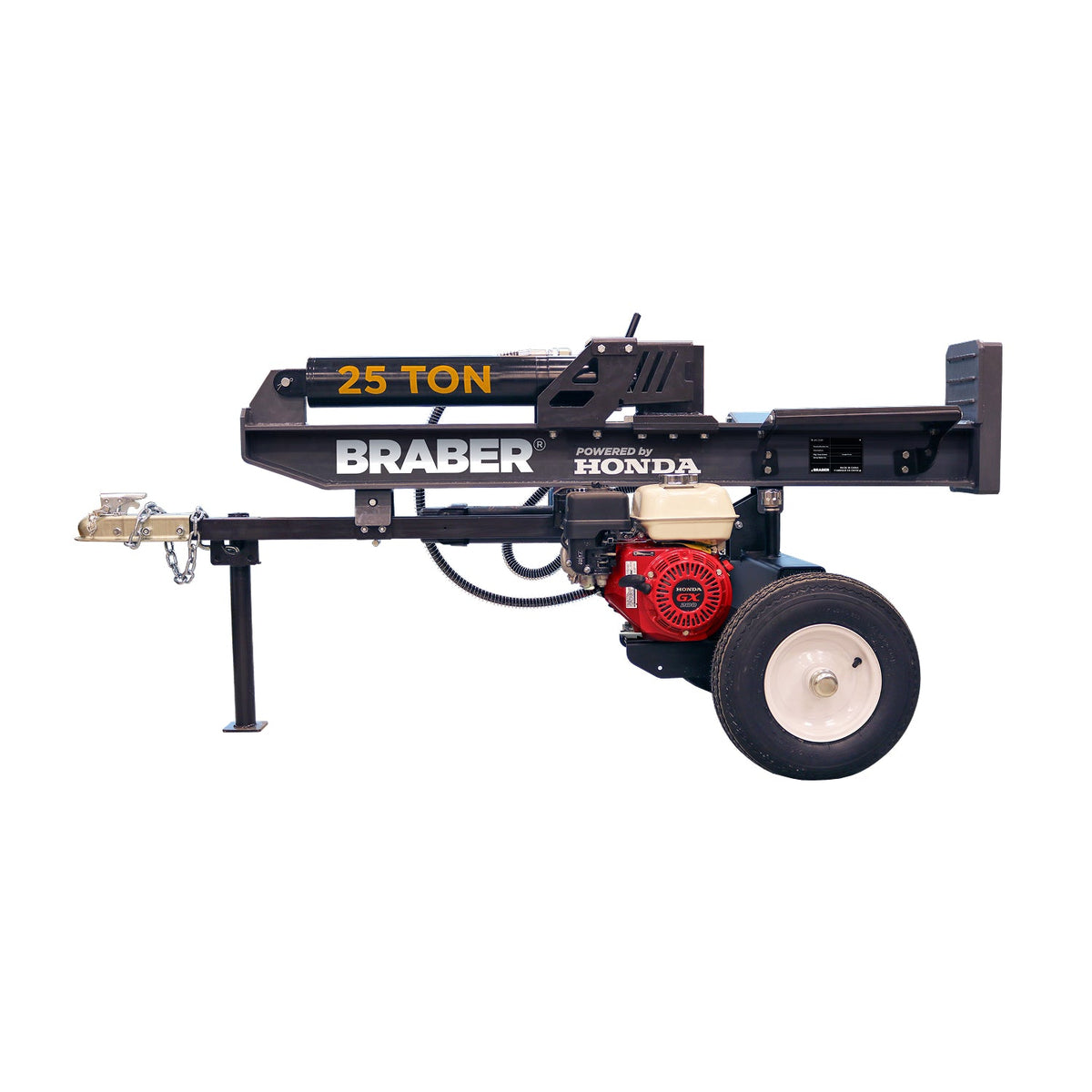

The BRABER BE-LS25ER Workshop 25-Ton Log Splitter is a towable gas-powered firewood processing machine designed for efficient splitting in both horizontal and vertical positions. Its PowerEase 212 cc / 7 HP engine drives a 9 GPM Hi-Lo two-stage hydraulic pump, delivering up to 25 tons of splitting force at a maximum pressure of 3,400 PSI. With a 24-inch maximum log length, 14-inch maximum splitting diameter, automatic ram return, and an over-top engineered log dislodger, this BRABER splitter is built to help process firewood with less manual handling. DOT tires, a 2-inch ball coupler, safety chains, and a spring release pin support convenient towing between work areas.

Efficient Horizontal and Vertical Firewood Splitting

The BE-LS25ER provides two operating positions to suit different log sizes and handling preferences. Use the horizontal position for standard firewood processing, or move the splitter into its vertical position when handling larger or heavier rounds. The 3-position control valve includes automatic ram return, helping streamline repeated splitting cycles with a cycle time of 7 seconds forward and 5 seconds reverse.

PowerEase Hydraulic Performance

A PowerEase 212 cc / 7 HP engine supplies power to the self-contained hydraulic system. The 9 GPM Hi-Lo two-stage pump is designed for efficient operation, while the 4-inch by 22-inch cylinder provides the working movement required for logs up to 24 inches long and up to 14 inches in splitting diameter. The hydraulic reservoir holds 12 L / 3.2 gal, and the cylinder capacity is 4.2 L / 1.1 gal.

Heavy-Duty Workshop Construction

The full beam construction provides the main structural foundation for the splitter, while the over-top engineered log dislodger helps remove split wood from the working area. Heavy-duty tapered wheel bearings and DOT tires support transport, with a maximum towing speed of 72 km/h / 45 mph. Safety chains and a spring release pin are included as part of the transport equipment.

Key Features

• 25-ton splitting force for workshop and firewood processing applications
• PowerEase 212 cc / 7 HP engine
• Horizontal and vertical operating positions
• 9 GPM Hi-Lo two-stage hydraulic pump
• 3,400 PSI maximum hydraulic pressure
• 7-second forward and 5-second reverse cycle time
• 3-position control valve with automatic ram return
• 4-inch by 22-inch hydraulic cylinder
• Handles logs up to 24 inches long and 14 inches in diameter
• Full beam construction with over-top engineered log dislodger
• DOT tires with a maximum towing speed of 72 km/h / 45 mph
• 2-inch ball coupler, safety chains, and spring release pin
• Optional LS4CW 4-way wedge available from BRABER

Specifications

Included Transport and Operating Equipment

The BE-LS25ER is configured as a towable workshop log splitter with DOT tires, a 2-inch ball coupler, safety chains, and a spring release pin. Its hydraulic system is self-contained, using the PowerEase engine and integrated 9 GPM Hi-Lo pump rather than a tractor PTO hydraulic system.

Optional Accessory

BRABER lists the LS4CW 4-way wedge as an optional accessory for the BE-LS25ER. The additional wedge option is intended for customers seeking an alternative multi-way splitting setup.
