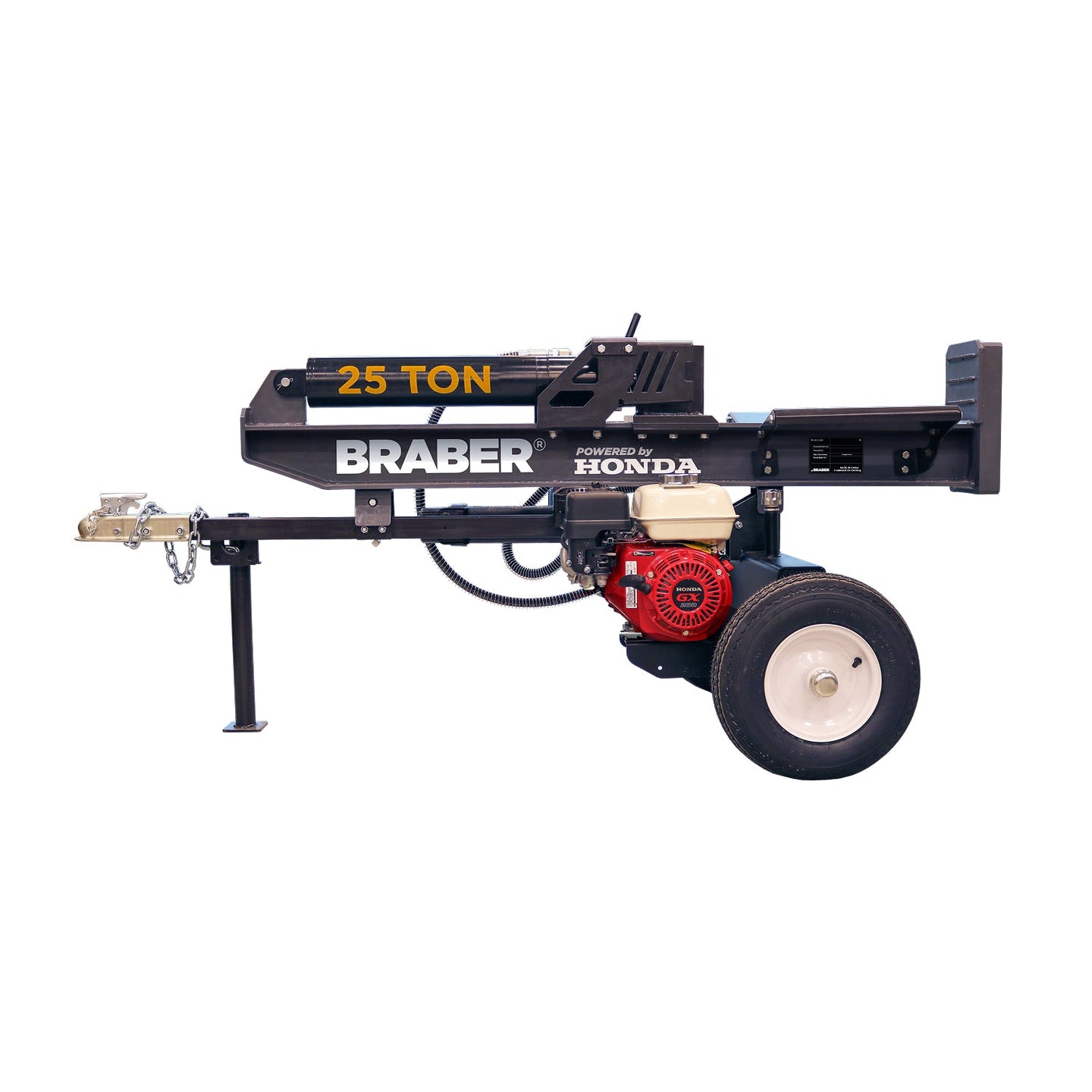

BRABER - 25-Ton Workshop Log Splitter - Honda Engine - Horizontal/Vertical Firewood Splitting - Firewood Processing Equipment [BE-LS25EH]

The BRABER BE-LS25EH 25-Ton Workshop Log Splitter is a towable hydraulic firewood processor built for demanding splitting work around the workshop, property, or woodlot. Powered by a Honda GX200 engine and equipped with a 9 GPM hi-lo hydraulic pump, it delivers 25 tons of splitting force for processing logs up to 24 inches long and 14 inches in splitting diameter. Its horizontal and vertical operating positions provide flexibility for different log sizes and handling conditions, while the 3-position control and automatic ram return support efficient repeated cycles.

Powerful, Flexible Firewood Processing

The BRABER Workshop-series splitter combines a Honda GX200, 196 cc, 6.5 HP engine with a hydraulic system rated up to 3,400 PSI. The 4-inch by 22-inch cylinder produces a 7-second forward cycle and a 5-second reverse cycle, helping maintain a steady working rhythm during firewood processing. Horizontal and vertical operation allows logs to be split in the position suited to the job, reducing the need to lift heavier rounds onto the beam.

Full beam construction, an over-top engineered log dislodger, steel-wrapped hydraulic hoses, and heavy-duty tapered wheel bearings support the splitter’s workshop-oriented design. DOT tires, safety chains, a spring release pin, and a 2-inch ball coupler provide the specified towing equipment for transport between work areas.

Key Features

• 25-ton hydraulic splitting force for demanding firewood processing
• Honda GX200 engine with 196 cc displacement and 6.5 HP output
• Horizontal and vertical splitting positions
• Handles logs up to 24 inches in length and 14 inches in splitting diameter
• 9 GPM hi-lo hydraulic pump
• 3,400 PSI maximum hydraulic pressure
• 7-second forward cycle and 5-second reverse cycle
• 3-position control with automatic ram return
• 4-inch by 22-inch hydraulic cylinder
• Full beam construction
• Over-top engineered log dislodger
• DOT tires rated to a maximum speed of 72 km/h / 45 mph
• Heavy-duty tapered wheel bearings
• Safety chains and spring release pin
• Steel-wrapped hydraulic hoses
• 2-inch ball coupler towing connection

Designed for Efficient Splitting

The BE-LS25EH is suited to users who need a mobile, gasoline-powered splitter with substantial hydraulic capacity. Its automatic ram return helps simplify the repeated splitting cycle, while the forward and reverse cycle times provide clear performance expectations. The horizontal and vertical configuration gives operators a choice of working position when processing logs up to the specified maximum size.

The splitter’s hydraulic system includes a 12-litre / 3.2-gallon reservoir and a 4.2-litre / 1.1-gallon cylinder capacity. Together with the hi-lo pump and 25-ton splitting force, these specifications make the BE-LS25EH a substantial option for workshop and property-based firewood processing.

Specifications
