BRABER - 24" Hydraulic Stump Grinder - Hydraulic Drive & Positioning - Heavy-Duty Loader/Tractor Stump Removal [BE-SGH24]

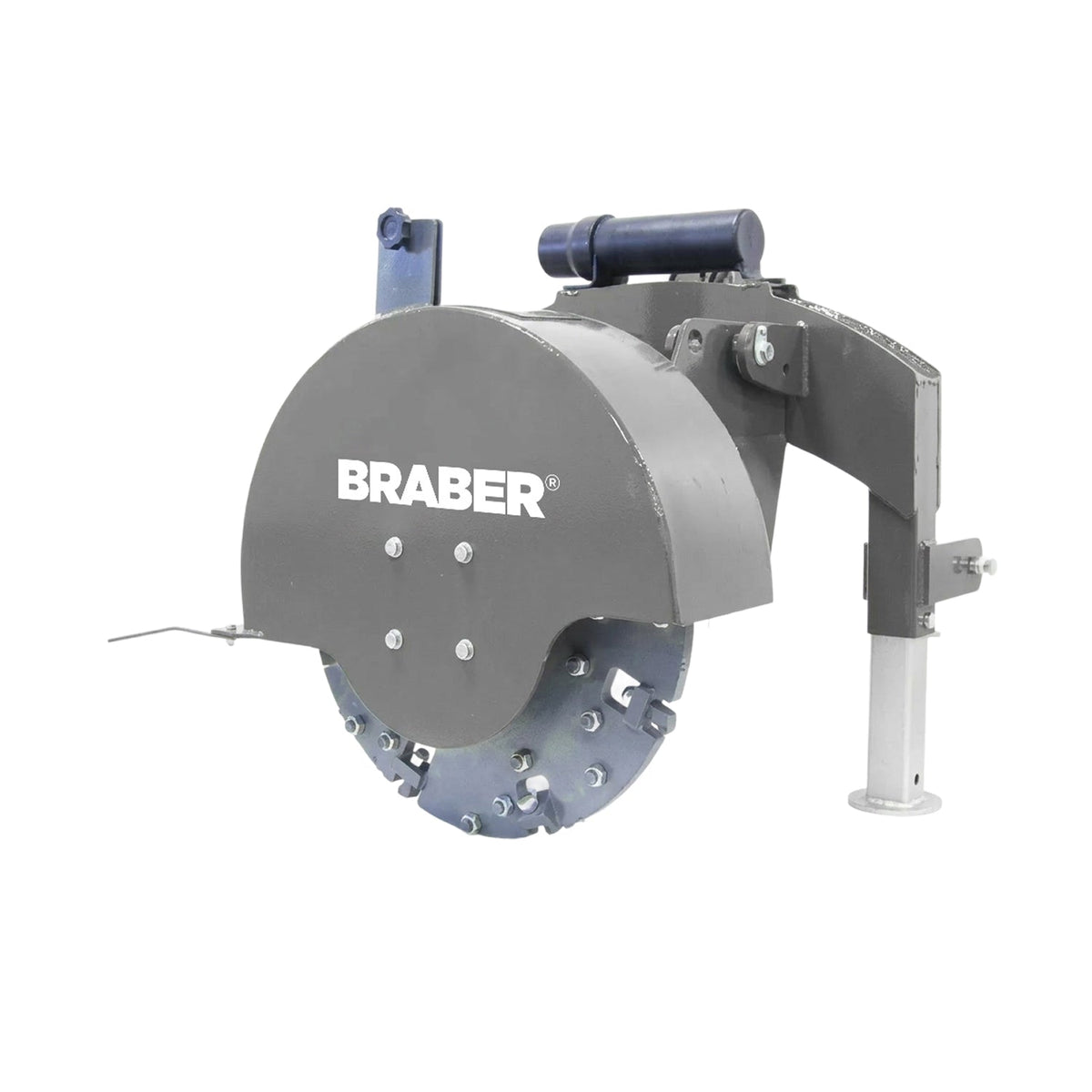

The BRABER BE-SGH24 Hydraulic 3-Point PTO Stump Grinder is a tractor-mounted stump removal attachment designed for fast, controlled grinding from the tractor seat. Its 24-inch steel cutting wheel uses 16 replaceable carbide-tipped teeth to process stumps both above and below ground, while hydraulic positioning provides adjustable side-to-side cutting action and hydraulic lift for controlled operation. Built for tractors from 30 to 45 horsepower, the BE-SGH24 combines 540 RPM PTO power, a Category 2 or 3 three-point hitch, quick-hitch compatibility, shear-bolt PTO protection, and a ground stabilizer for demanding stump-removal work.

Controlled Hydraulic Stump Removal

The BE-SGH24 is a hydraulic stump grinder intended for use with compatible loaders or tractors equipped with the required three-point hitch and hydraulic connections. Hydraulic controls allow the cutting assembly to be positioned from the operator’s seat, helping provide controlled side-to-side cutting movement during stump removal. The grinder can mill up to 25 inches above grade and 14 inches below grade, making it suitable for reducing stumps below the surrounding surface as well as clearing material above ground level.

A 24-inch steel cutting wheel fitted with 16 forged, replaceable carbide-tipped teeth is designed for cutting performance and serviceability. When teeth become worn, the replaceable design allows them to be changed rather than replacing the complete cutting wheel. The ground stabilizer helps support the machine during operation, while the shear-bolt PTO system provides PTO protection for the attachment.

Key Features

• 24-inch steel cutting wheel with 16 replaceable carbide-tipped teeth
• Hydraulic side-to-side cutting action for controlled positioning
• Hydraulic lift and positioning system
• Grinding capacity of 25 inches above grade and 14 inches below grade
• 540 RPM PTO operation
• Shear-bolt PTO protection
• Ground stabilizer for operational support
• Category 2 and 3 three-point hitch mounting
• Quick-hitch compatible
• Two double-acting hydraulic circuits requiring four hydraulic connections

Tractor Requirements and Compatibility

The BRABER BE-SGH24 requires a tractor with a minimum of 30 horsepower. A 30–45 horsepower tractor is the recommended range identified for this attachment. The grinder mounts to a Category 2 or Category 3 three-point hitch and is compatible with a quick-hitch system. Operation also requires two double-acting hydraulic circuits, described by the manufacturer as four hydraulic ports or connections.

Specifications
