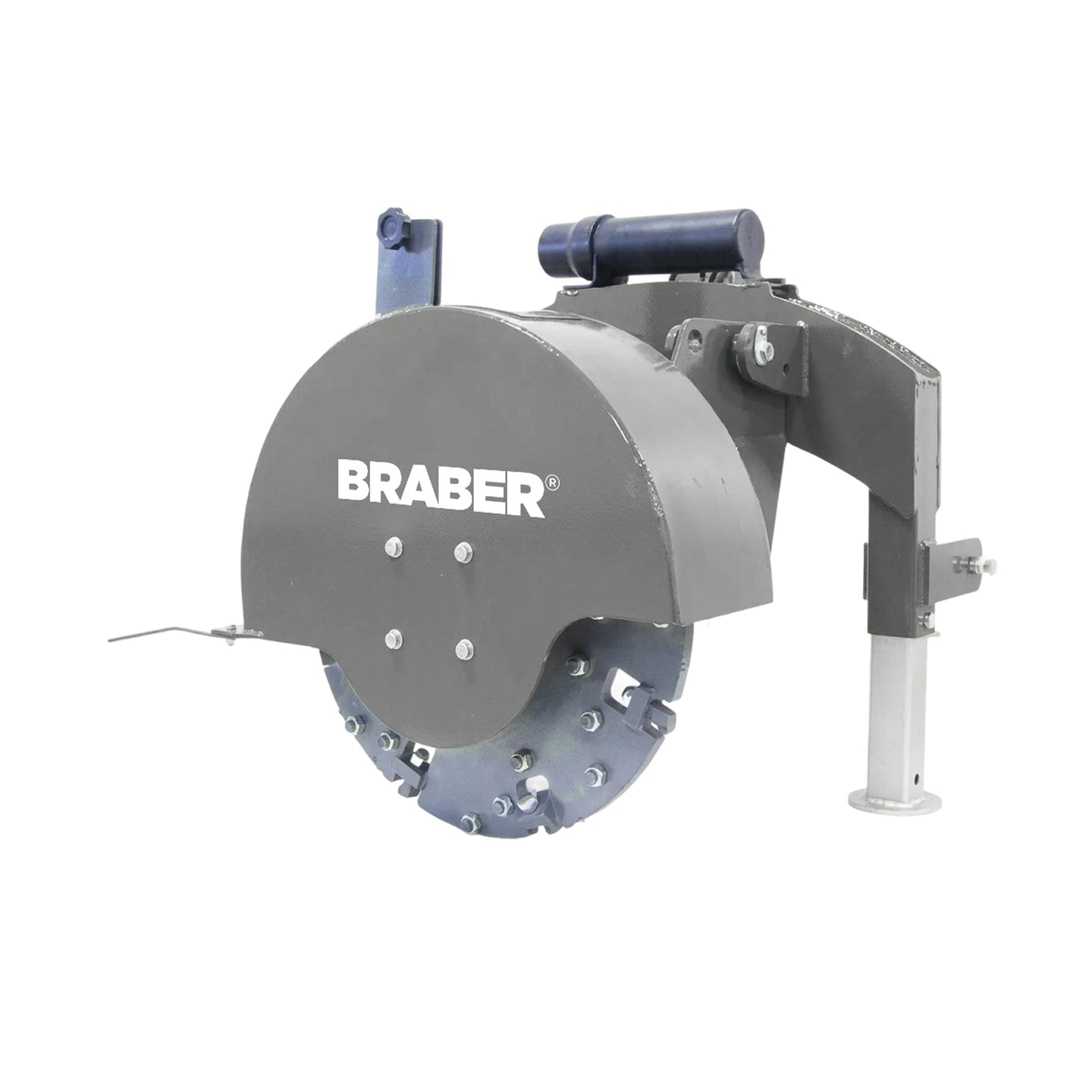

BRABER - 24" 3-Point PTO Stump Grinder - Chainsaw Transport Mount Included - 540 RPM PTO, 500 lb, 15-45 HP - Land Clearing Equipment [BE-SG24]

The BRABER BE-SG24 24-Inch 3-Point PTO Stump Grinder is a tractor-mounted land-clearing attachment designed to grind stumps up to 6 inches below grade. Its 540 RPM PTO drive, slip-clutch PTO yoke, carbide-tipped cutting teeth, swinging manual grinding action, and heavy-duty stabilizer provide a practical configuration for stump removal and site preparation. The BE-SG24 is rated for tractors specified at 15–45 HP on the current BRABER product page and includes a chainsaw transport mount for convenient equipment transport. With no hydraulic connection required for its manual-movement design, this grinder is suited to compatible tractors equipped with the appropriate three-point hitch and PTO.

Key Features

• 24-inch cutting wheel for tractor-mounted stump grinding
• Grinding capacity of 6 inches below grade
• 540 RPM PTO drive
• Slip-clutch PTO yoke
• Carbide-tipped cutting teeth
• Swinging manual grinding action
• Heavy-duty stabilizer for support during operation
• Chainsaw transport mount included
• No hydraulic connection required for the BE-SG24 manual-movement model
• Designed for use with tractors rated from 15–45 HP according to the current BRABER product page

Tractor Compatibility and Requirements

The BE-SG24 mounts to a tractor three-point hitch and uses a 540 RPM PTO. The BRABER operation and parts manual specifies Category 2 and Category 3 three-point hitch compatibility. The current BRABER product page lists a tractor power range of 15–45 HP, while the manual specifies a 30 HP minimum for optimal performance. Because these horsepower requirements differ by manufacturer reference, confirm tractor suitability with BRABER before purchase or operation.

The BE-SG24 uses manual swinging movement and does not require a hydraulic connection. It is distinct from the companion BE-SGH24 hydraulic model. Verify that the tractor has the required PTO speed, compatible hitch category, and adequate capacity for the attachment before use.

Cutting and Grinding System

The 24-inch cutting wheel uses carbide-tipped cutting teeth for stump grinding. The manufacturer manual identifies 16 pieces in the forged carbide face, a 610 mm flywheel diameter, a 40° swivel angle, and a milling wheel rotation speed of 950 RPM. The manual lists a milling height of 40 cm above level and a milling depth of 30 cm below level; the current product page separately specifies a 6-inch below-grade grinding capacity. Refer to the applicable BRABER operating information for setup and operating requirements.

Transport and Stability

A heavy-duty stabilizer supports the attachment configuration, while the included chainsaw transport mount adds a dedicated transport feature for chainsaw equipment. The BE-SG24 has a current product-page listed weight of 500 lb. The manufacturer operation and parts manual lists the BE-SG24 at 441 lb, so verify the applicable product weight and tractor lifting capacity with BRABER before purchase.

Specifications
