Description

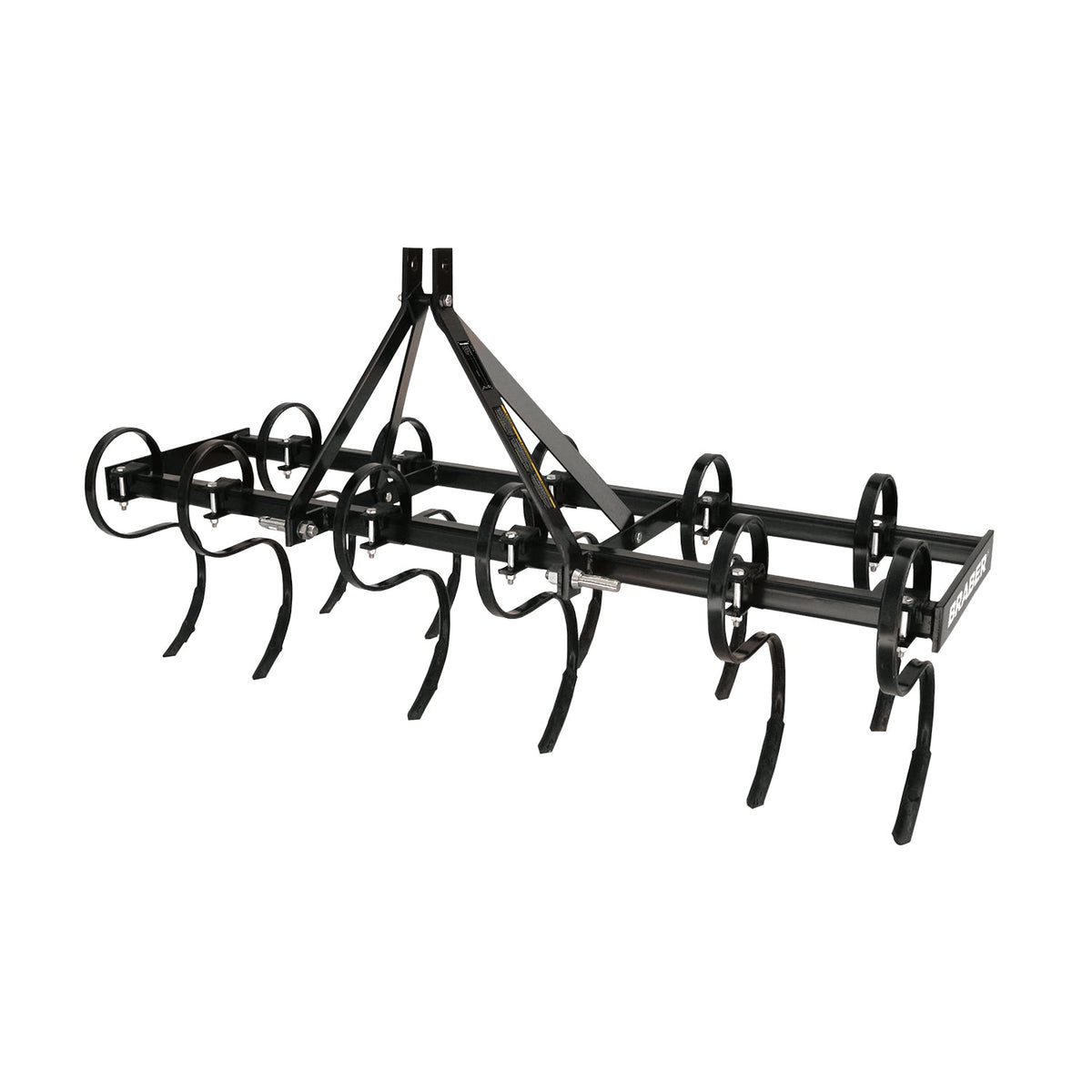

The BRABER BE-FC15S Heavy-Duty Spring-Loaded Tine Cultivator is built for field cultivation and seedbed preparation behind tractors equipped with a Category 2, 3-point hitch. Its solid welded frame, heavy-duty shanks, and 15 double-coil spring tines provide a durable implement configuration for working across a 126-inch span. Equipped with 2-1/4-inch x 12-inch reversible points, this cultivator is designed for dependable soil-working performance in agricultural and field-preparation applications.

Heavy-Duty Field Cultivation

The BE-FC15S combines a robust frame with spring-loaded tine construction for cultivation work and seedbed preparation. The 15 double-coil spring tines are supported by heavy-duty shanks, while the reversible points provide the specified point configuration for soil engagement. With a 126-inch working width, the cultivator covers a broad area per pass and is suited to tractors in the recommended 50-90 PTO HP range.

Key Features

  • BRABER BE-FC15S heavy-duty spring-loaded tine cultivator
  • 15 double-coil spring tines
  • Solid welded frame construction
  • Heavy-duty shanks
  • 2-1/4-inch x 12-inch reversible points
  • 126-inch working width
  • 133-inch total/transport width
  • Category 2, 3-point hitch
  • Recommended for field cultivation and seedbed preparation
  • Recommended tractor power: 50-90 PTO HP

Applications

The BRABER BE-FC15S is designed for field cultivation and seedbed preparation. Its heavy-duty spring tine layout and broad working width make it suitable for general soil-working tasks where a 3-point-mounted cultivator is required. Confirm that the tractor’s hitch category, available lift capacity, and power rating are suitable for this implement before operation.

Specifications

Brand BRABER
Model / part number BE-FC15S
Product type Heavy-duty spring-loaded tine cultivator
Hitch Category 2, 3-point hitch
Number of tines 15
Tine construction Double-coil spring tines
Frame construction Solid welded frame
Shanks Heavy-duty shanks
Points 2-1/4 in x 12 in reversible points
Working width 126 in
Total / transport width 133 in
Weight 1,058 lbs
Recommended tractor power 50-90 PTO HP

Tractor Requirements

The BE-FC15S requires a tractor with a Category 2, 3-point hitch and is rated for tractors providing 50-90 PTO HP. The implement weighs 1,058 lbs and has a 133-inch total/transport width. Verify that the tractor can safely lift and transport the cultivator and that the operating combination is appropriate for the intended field conditions.
