3 PT WOODSPLITTER, 4X24 CYL

WALLENSTEIN WX310 3-Point-Hitch Horizontal Hydraulic Log Splitter delivers up to 20 tons of splitting force in a compact tractor-mounted design. Built for horizontal log splitting, the WX310 features a 24-inch split opening, a 4-inch hydraulic cylinder, and a wide wedge designed to initiate the split early. Its direct-pressure hydraulic operation and hands-free return function support efficient firewood processing, while the included hydraulic hoses and couplers simplify connection to a compatible tractor. With Category I, iMatch™ and Quick Hitch compatibility, the WX310 is suited to a range of tractor-mounted applications where controlled, hydraulic splitting performance is required.

Efficient Tractor-Mounted Log Splitting

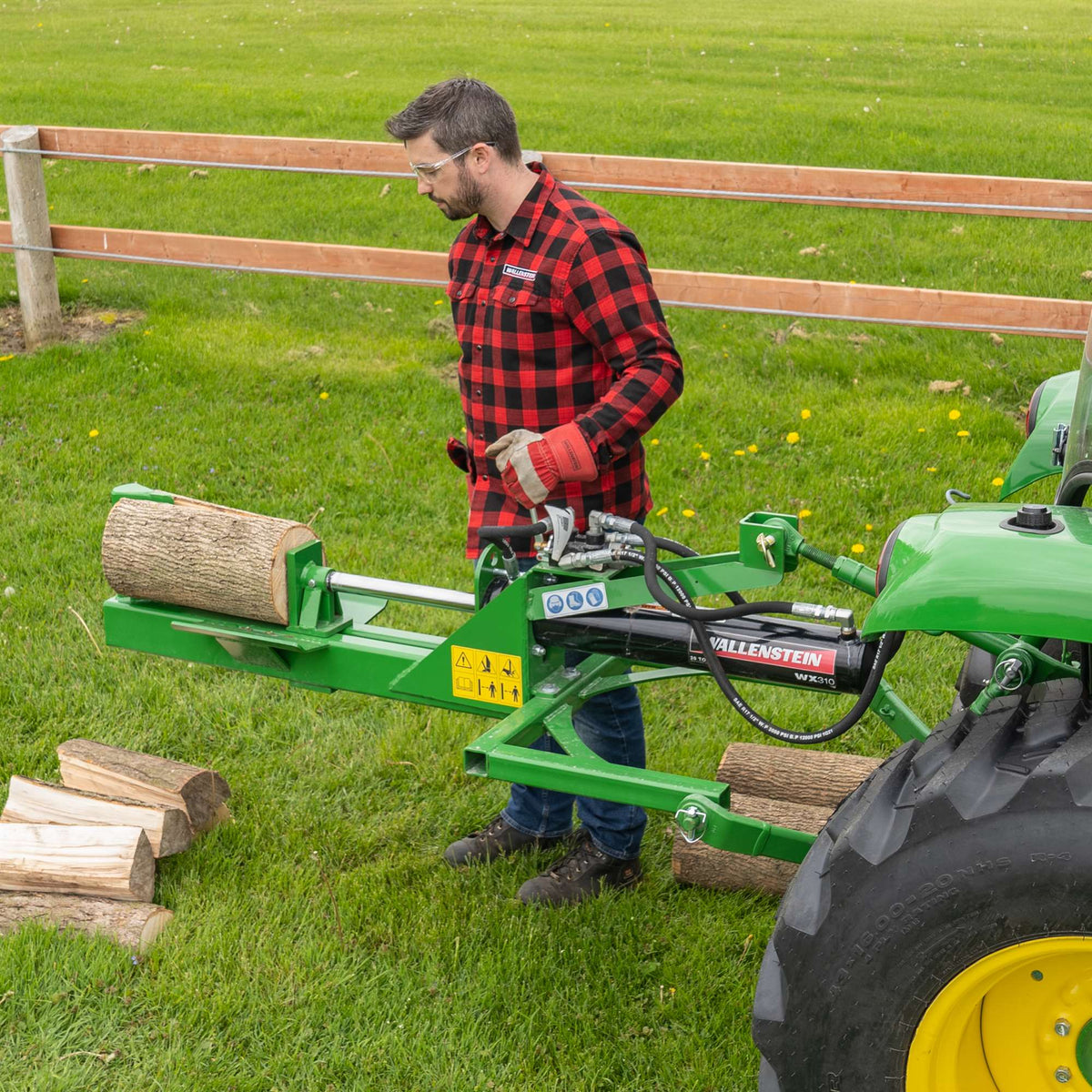

The WALLENSTEIN WX310 is designed to mount to a tractor’s 3-point hitch and operate from the tractor’s hydraulic system. Its horizontal configuration provides a practical working position for processing logs through the 24-inch split opening. The 9-inch wedge height and wide wedge design help initiate the split early, while the 4-inch cylinder provides the hydraulic force required for demanding splitting work.

The standard WX310 uses an open-center hydraulic system and requires a recommended minimum hydraulic flow of 10 gpm (38 L/min). A closed-center configuration is identified separately as the WX310C model. Cycle times depend on the tractor’s available hydraulic flow, with an average split cycle of 6.62 seconds and a full cycle of 13.24 seconds listed for the model.

Key Features

• 20-ton maximum splitting force
• Horizontal 3-point-hitch hydraulic log splitter design
• 24-inch (61 cm) split opening
• 4-inch (10 cm) hydraulic cylinder diameter
• 4 x 24-inch cylinder bore and stroke
• Wide wedge designed to initiate the split early
• Hands-free return function
• Direct-pressure hydraulic operation
• Open-center valve with return detent
• Hydraulic hoses and couplers included
• Category I, iMatch™ and Quick Hitch compatible
• Optional closed-center configuration available as model WX310C

Specifications

Tractor Requirements

The WX310 is intended for tractors equipped with a 3-point hitch and compatible hydraulic service. The recommended minimum hydraulic flow is 10 gpm (38 L/min). The standard WX310 is configured for open-center hydraulics. Tractors using a closed-center hydraulic system require the closed-center WX310C configuration.

Mounting Compatibility

This log splitter is 3-point-hitch mounted and compatible with Category I, iMatch™ and Quick Hitch systems. Confirm that the tractor’s hitch and hydraulic system meet the listed requirements before installation and operation.

Available Accessories

Optional accessories listed for the WX310 include the W4110 4-way splitting wedge, W4211 clamp-on shelf, W4180 PTO pump kit and W4213 stroke limiter.
