WALLENSTEIN

14,000 LB SKIDDING WINCH

SKU FX140R
Starting at $9,47900
Starting at $9,47900

Add your items to the Cart to begin to build and price your package.


When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

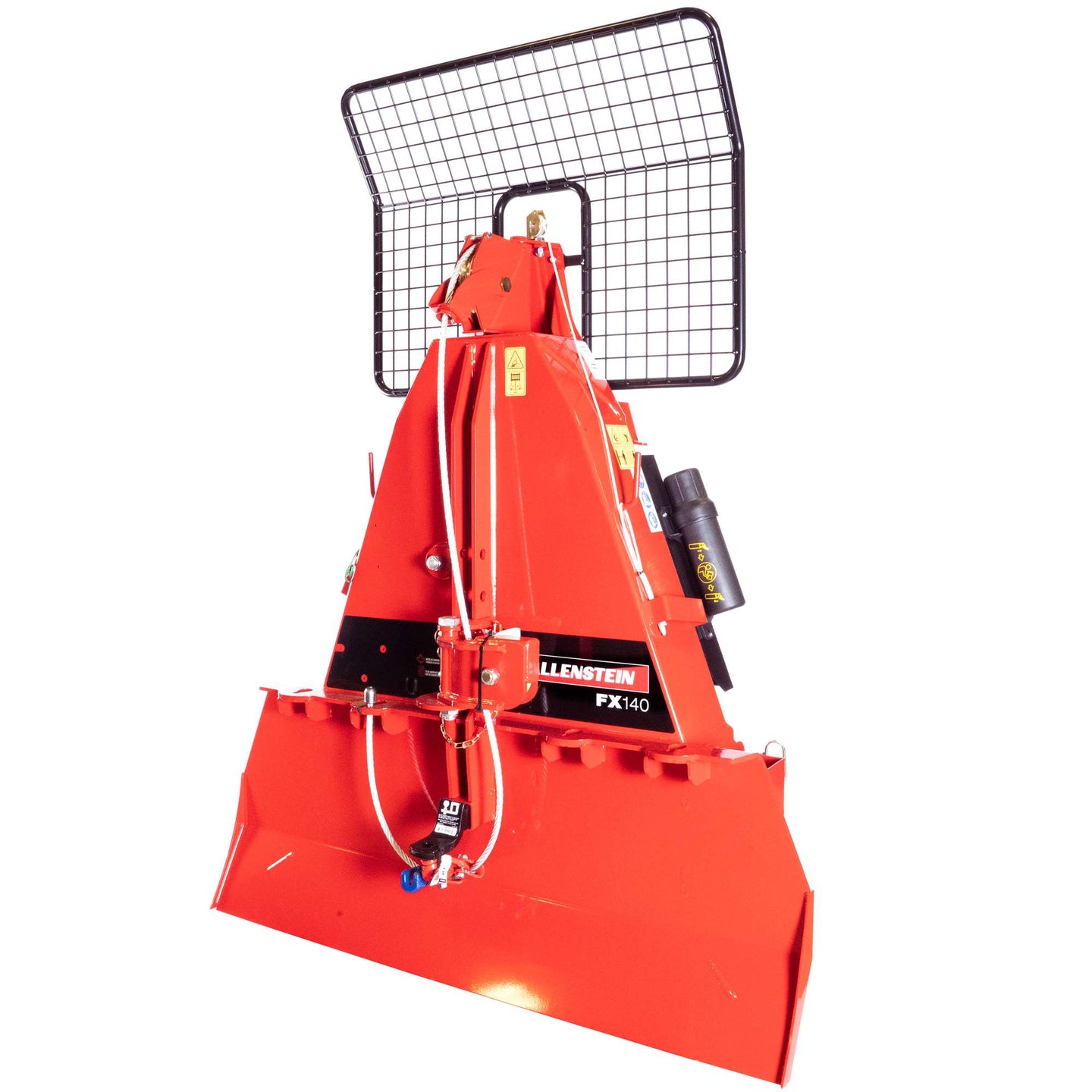

The Wallenstein FX140R 14,000 lb Skidding Winch is a PTO-driven mechanical winch designed for demanding log skidding and forestry work with 80–120 engine HP tractors. Its 14,000 lb (6,350 kg) pulling capacity, 165 ft (50 m) steel cable, remote-control operation, and mechanical dry-disc clutch provide practical pulling performance for moving timber through challenging terrain. Supplied in the steel-cable remote-control configuration identified as FX140R-RED, this winch is suited to agricultural, forestry, and land-management operations that require dependable tractor-powered skidding equipment.

Product Overview

The FX140R uses a tractor PTO to drive its mechanical winch system, with a required PTO input speed of 540 rpm. The dry-disc clutch supports controlled winch operation, while the remote-control configuration allows the operator to control the winch without relying solely on manual controls at the machine. With a line speed of 98–246 ft/min (30–75 m/min), the winch is equipped to handle efficient cable deployment and log recovery operations.

The included 1/2 in (13 mm) steel cable measures 165 ft (50 m), providing useful reach between the tractor and the load. Two choker chains are included for securing loads during skidding. The FX140R has a transport width of 59 in (150 cm), an overall length of 28 in (71 cm), and a total weight of 898 lb (407 kg).

Key Features

  • 14,000 lb (6,350 kg) pulling capacity
  • PTO-driven mechanical skidding winch
  • Remote-controlled operation
  • Mechanical dry-disc clutch
  • 165 ft (50 m) steel cable
  • 1/2 in (13 mm) cable diameter
  • Two choker chains included
  • 98–246 ft/min (30–75 m/min) line speed
  • 540 rpm PTO input
  • Suitable for tractors in the 80–120 engine HP range

Tractor Compatibility and Requirements

The Wallenstein FX140R is designed for use with a tractor PTO and is compatible with tractors producing 80–120 engine HP. The tractor must provide a 540 rpm PTO input. The winch also requires hydraulic flow of 1–2 gpm (4–8 lpm). Confirm that the tractor meets the specified engine horsepower, PTO speed, and hydraulic-flow requirements before operation.

Specifications

Brand Wallenstein Equipment
Model FX140R
Supplied item variant FX140R-RED
Product type PTO-driven mechanical skidding winch
Pulling capacity 14,000 lb (6,350 kg)
Cable type Steel
Cable length 165 ft (50 m)
Cable diameter 1/2 in (13 mm)
Control configuration Remote controlled
Winch type Mechanical, dry-disc clutch
Line speed 98–246 ft/min (30–75 m/min)
Required tractor engine power 80–120 HP
Required hydraulic flow 1–2 gpm (4–8 lpm)
PTO input speed 540 rpm
PTO height 22 in (56 cm)
Choker chains 2
Total weight 898 lb (407 kg)
Overall dimensions 28 x 59 x 80 in (71 x 150 x 203 cm), L x W x H

Applications

The FX140R is intended for tractor-powered skidding applications where high pulling capacity, extended cable reach, and remote operation are valuable. It is suitable for forestry, agricultural, and land-management tasks involving the recovery and movement of logs or timber.
