10" PTO DRVN CHIPPER, HYD FEED

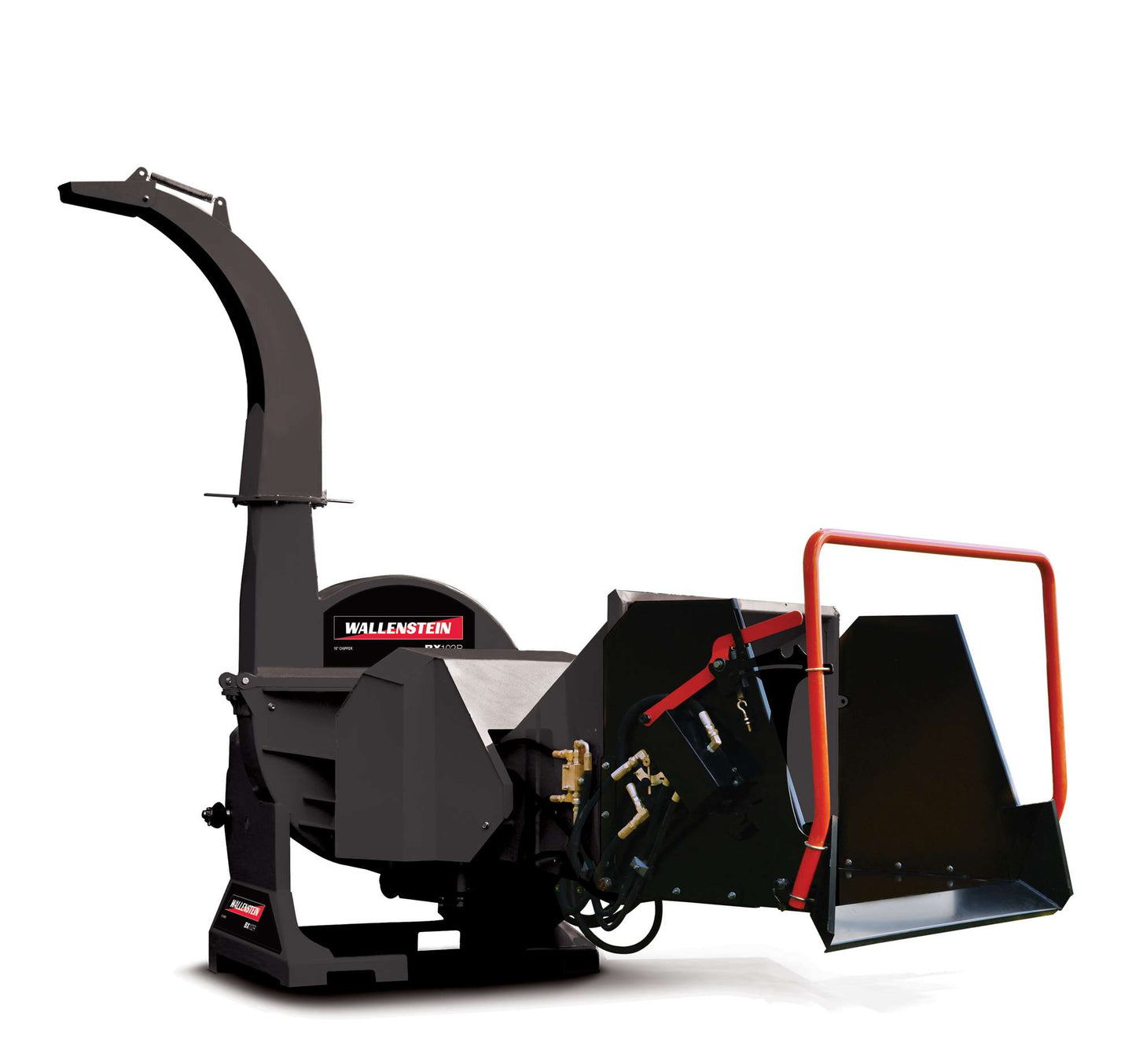

The Wallenstein BX102R 10" PTO Tractor Hydraulic Feed Wood Chipper is a heavy-duty disc chipper designed for tractors with an 80–120 hp engine range. Its PTO direct-drive system, dual driven hydraulic rollers, 10-inch chipping capacity, and oversized 36-inch rotor provide a productive solution for processing branches, brush, and other suitable wood material. The hydraulic feed system includes roller speed control, while the fold-up hopper, adjustable discharge chute, and compact folded dimensions support practical operation, transport, and storage.

Product Overview

The BX102R uses a tractor PTO direct-drive system and requires tractor hydraulic flow of 4–8 gpm (15–30 lpm) for its hydraulic feed system. Dual hydraulic rollers help draw material into the chipper, with roller speed control allowing the feed rate to be adjusted during operation. A wide 10 x 17-inch infeed opening and 30 x 42-inch hopper opening accommodate substantial material before it reaches the four-knife disc rotor.

The 36-inch rotor weighs 425 lb and is equipped with reversible knives. A twig breaker and oversized heavy-duty rotor support the chipping system, while the shearbolt-protected PTO drivetrain provides included PTO protection. The safety control bar provides an operating control at the feed area.

Key Features

• 10-inch (25 cm) chipping capacity
• PTO direct-drive system
• Dual driven hydraulic rollers
• Roller speed control
• 4–8 gpm (15–30 lpm) required tractor hydraulic flow
• 36-inch (92 cm) rotor with four reversible knives
• Oversized heavy-duty rotor weighing 425 lb (193 kg)
• Wide 10 x 17-inch (25 x 43 cm) chipper infeed opening
• 30 x 42-inch (76 x 107 cm) chipper hopper opening
• Fold-up feed hopper for a reduced transport footprint
• Adjustable discharge chute with 360-degree rotation
• Positional discharge deflector
• Twig breaker
• Safety control bar
• Shearbolt-protected PTO drivetrain included

Tractor Requirements

The Wallenstein BX102R is intended for tractors with an engine horsepower range of 80–120 hp. It operates through a tractor PTO direct-drive connection and is rated for 540–1,000 rpm. The tractor must provide 4–8 gpm (15–30 lpm) of hydraulic flow for the dual hydraulic roller feed system.

Compatibility and Mounting

The BX102R mounts to a Category II three-point hitch. It is compatible with iMatch™ and Quick Hitch systems, supporting installation on compatible tractors and hitch configurations. The PTO height is 34 inches (86 cm).

Chute and Operating Dimensions

The discharge chute reaches a height of 100 inches (253 cm) and rotates through 360 degrees for flexible chip placement. The machine measures 108 x 85 x 100 inches (273 x 215 x 253 cm) in its open configuration. When folded, the dimensions reduce to 85 x 71 x 100 inches (215 x 180 x 253 cm), with a transport width of 71 inches (180 cm).
