HLA Attachments - 92" Stone Fork Retainer Tine and GRS84 Grapple - Stone and Debris Handling [LA-SFR92GRS84BO500]

SKU LA-SFR92GRS84BO500

Starting at: Starting at $6,200.⁰⁰

Starting at: Starting at $6,200.⁰⁰

Add your items to the Cart to begin to build and price your package.

When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

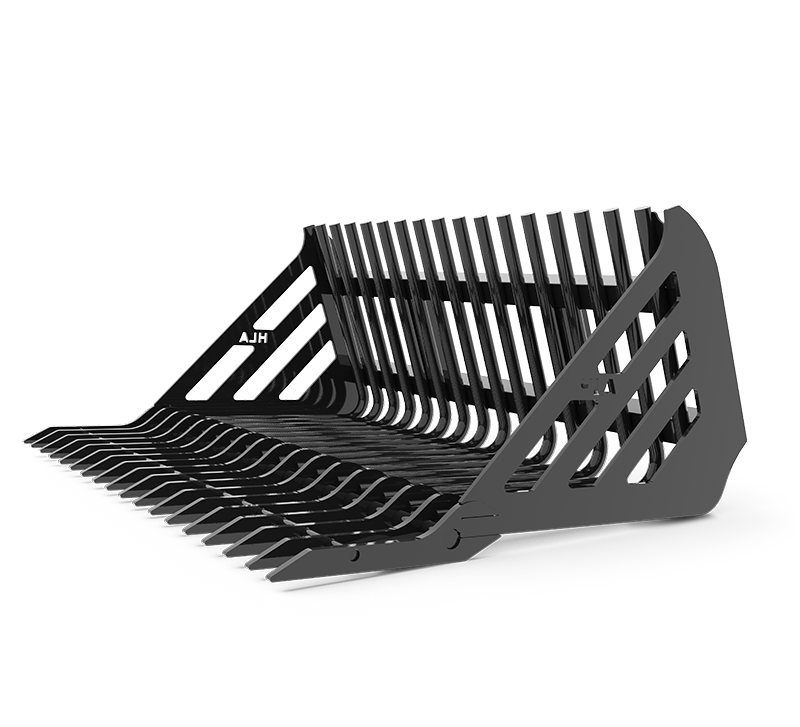

HLA Attachments SFR92GRS84 Stone Fork with GRS84 Grapple and BO500 Mount combines a 92-inch regular-duty retainer-tine stone fork with an 84-inch hydraulic skid-steer grapple for controlled stone and debris handling. Built for universal skid-steer quick-attach carriers, this attachment is designed specifically for machines with limited clearance for grapple arms. Its 55-inch maximum grapple opening, closely spaced fork tines, and replaceable-style high-strength steel points make it a practical choice for picking, separating, securing, and transporting stones and other debris.

Stone and Debris Handling

The 92-inch stone fork uses 1-1/4-inch-diameter tines with 2-1/2-inch spacing. This arrangement supports material while allowing smaller loose material to pass between the tines. Retainer-style tines help provide a dependable working surface for stone and debris handling, while the stone fork’s rated capacity is 5,500 lb.

Replaceable-style points provide durable ground-engaging construction. Each point is made from 5/8-inch-thick, 400 Brinell high-strength steel for demanding material-handling applications.

Hydraulic GRS Grapple

The integrated 84-inch GRS skid-steer grapple helps secure irregular material on the fork during pickup and transport. It opens to a maximum of 55 inches to accommodate bulky loads and is operated by two 2-1/2 x 8-inch hydraulic cylinders. The grapple configuration is intended for skid steers where clearance for conventional grapple arms may be limited.

Key Features

92-inch regular-duty stone fork with retainer-style tines
84-inch GRS hydraulic skid-steer grapple
Designed for machines with limited grapple-arm clearance
55-inch maximum grapple opening
Two 2-1/2 x 8-inch hydraulic cylinders
5,500 lb stone-fork capacity
1-1/4-inch-diameter fork tines
2-1/2-inch spacing between tines
Replaceable-style points made from 5/8-inch-thick, 400 Brinell high-strength steel
BO500 universal skid-steer quick-attach mounting interface
Approximate assembly weight of 1,285 lb

Compatibility

This configuration is fitted with the HLA BO500 universal skid-steer quick-attach mount. It is compatible with universal skid-steer quick-attach carriers and is intended for skid steers with limited grapple-arm clearance. Confirm that the carrier has sufficient operating capacity for the attachment’s approximate 1,285 lb weight and the intended load.

Hydraulic Requirements

Loader auxiliary hydraulics are required to operate the grapple. The attachment is supplied with two 2-1/2 x 8-inch hydraulic cylinders. A hydraulic flow or pressure requirement is not specified.

Specifications

Brand	HLA Attachments
Manufacturer base model	SFR92GRS84
Mounting code	BO500
Product type	Regular-duty hydraulic stone fork with skid-steer grapple
Mounting interface	Universal skid-steer quick attach
Stone-fork width	92 in
GRS grapple width	84 in
Stone-fork height	23 in
Stone-fork depth	40 in
Maximum grapple opening	55 in
Stone-fork capacity	5,500 lb
Tine diameter	1-1/4 in
Tine spacing	2-1/2 in
Point construction	5/8 in thick, 400 Brinell high-strength steel
Hydraulic cylinders	Two 2-1/2 x 8 in cylinders
Approximate weight	1,285 lb
Nominal transport width	92 in
Duty class	Regular duty
Product code	LA-SFR92GRS84BO500
