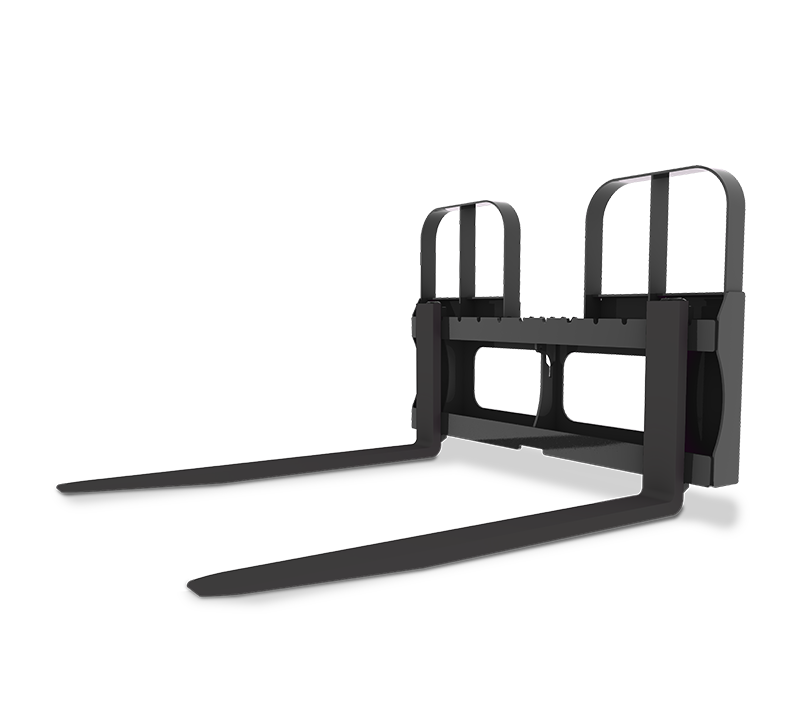

HLA Attachments - 5500 lbs Power Tilting Pallet Fork 48" - Material Handling Fork Attachment [LA-HDO5548BO500]

HLA Attachments HDO5548BO500 5,500 lb Power-Tilting Pallet Fork is a heavy-duty material-handling attachment designed to improve load control on uneven job sites. Combining a 5,500 lb rated capacity with 48-inch adjustable fork tines, this attachment is suited to moving pallets and other fork-compatible loads with loaders and skid steers. Its hydraulic tilting system provides up to 45 degrees of leveling in either direction, allowing the operator to adjust the fork angle smoothly from the host machine instead of relying solely on machine positioning.

Hydraulic Leveling for Uneven Ground

The HDO5548 uses a hydraulic cylinder-powered tilting mechanism to level the fork frame. The attachment can tilt up to 45 degrees in either direction, providing a wide adjustment range when handling loads on sloped, irregular, or uneven terrain. This power-tilting function helps the operator position the tines and manage the load angle without repeatedly repositioning the entire loader or skid steer.

An auxiliary hydraulic connection is required to operate the tilting cylinder. HLA Attachments also offers an optional HK90 hose kit, which includes 90-inch hoses with flat-faced couplers. An optional SHMK spring hose mount kit is available to support hydraulic hose routing.

Heavy-Duty Material Handling

With a manufacturer-rated capacity of 5,500 lb, the HLA Attachments power-tilting pallet fork is built for demanding material-handling applications. Its 48-inch tines are adjustable, allowing their position to be changed to accommodate different pallet openings and load dimensions. The attachment has an approximate manufacturer-listed weight of 770 lb.

This configuration combines the HDO5548 base pallet fork with HLA mounting code BO500. The BO500 mount uses a skid-steer-style quick-attach interface, making it suitable for compatible loaders and skid steers equipped with the corresponding carrier.

Key Features

• 5,500 lb rated load capacity
• 48-inch adjustable fork tines
• Hydraulic cylinder-powered tilting for smooth adjustment
• Levels up to 45 degrees in either direction
• Designed to assist with load handling on uneven job sites
• BO500 skid-steer-style quick-attach mount
• Approximately 770 lb attachment weight
• Optional hydraulic hose and hose-support kits available

Compatibility

The HDO5548BO500 is compatible with loaders and skid steers equipped with a skid-steer-style quick-attach carrier corresponding to HLA mounting code BO500. Confirm that the host machine has the correct quick-attach carrier, adequate operating capacity for the attachment and intended load, and a suitable auxiliary hydraulic connection before use.

Hydraulic Requirements

An auxiliary hydraulic connection is required to power the attachment’s tilting function. A verified hydraulic flow or pressure requirement is not published for this configuration. The optional HLA HK90 kit provides 90-inch hydraulic hoses with flat-faced couplers, while the optional SHMK spring hose mount kit provides additional hose support.
