Wallenstein FX85RS | Skidding Winches | Synthetic Rope, Remote - Tractor 2022

SKU FX85RS
Starting at $8,99500
Starting at $8,99500

Add your items to the Cart to begin to build and price your package!


When you're ready to take the next step, please reach out to us for a quote.

*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Pricing may not include freight, assembly, finance, delivery, or pdi fees.
*Manufacturer pricing subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

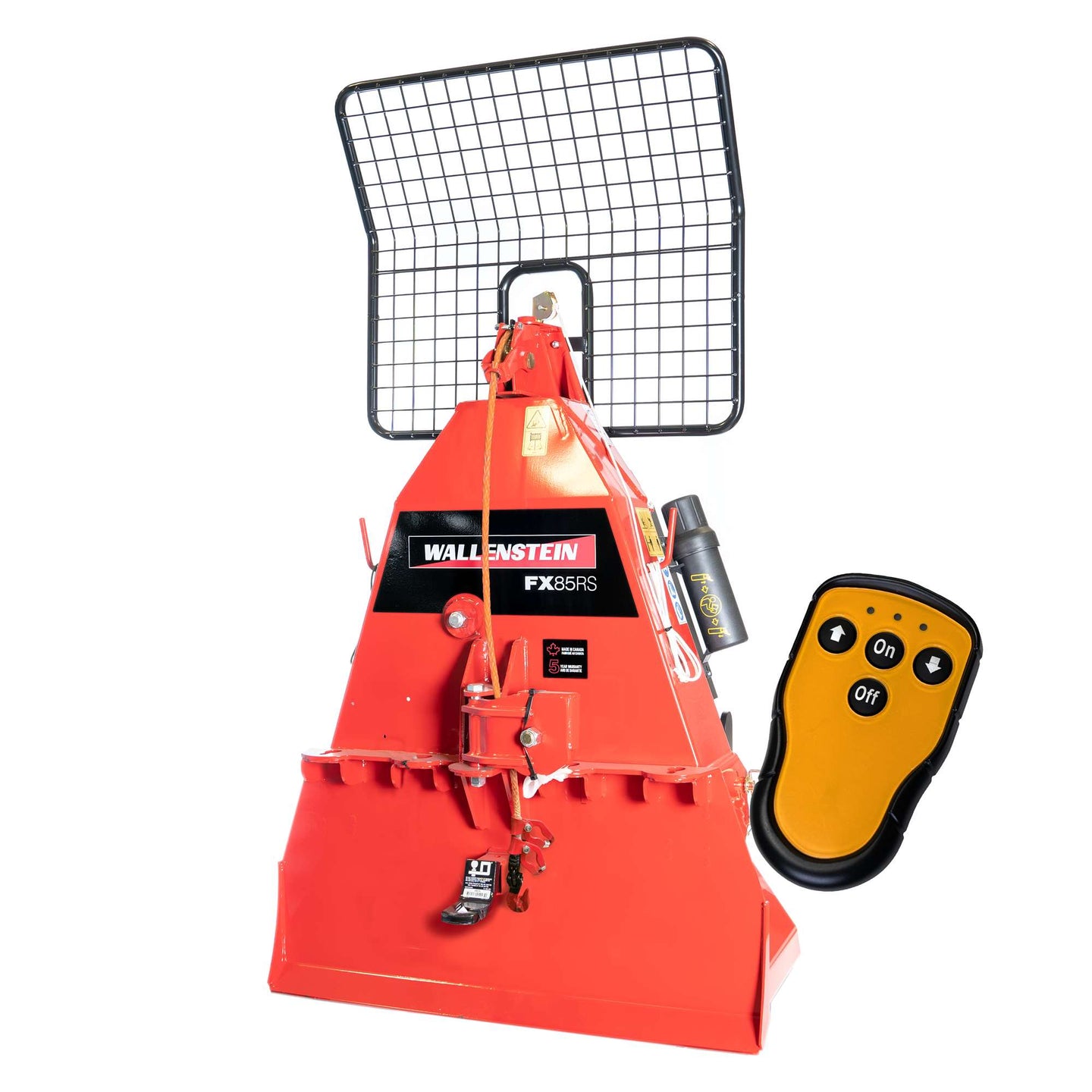

Wallenstein FX85RS Skidding Winch is a tractor PTO-driven skidding winch designed for woodlot management and timber handling. With an 8,500 lb (3,855 kg) pulling capacity, synthetic rope, and remote control, the FX85RS provides a capable setup for skidding logs and managing wood in suitable tractor applications. Its mechanical dry disc clutch, 200 ft (60 m) synthetic rope, two choker chains, and two keyhole sliders support practical load connection and winching operation. The winch is intended for tractors in the 30–55 HP range and uses a Category I mounting system.

Key Features

  • 8,500 lb (3,855 kg) rated pulling capacity
  • Remote-controlled operation
  • Tractor PTO-driven configuration
  • Synthetic rope construction
  • 200 ft (60 m) cable length
  • 7/16 in (11 mm) cable diameter
  • Mechanical winch with dry disc clutch
  • Two choker chains included
  • Two keyhole sliders
  • Category I mounting system
  • 540 rpm PTO input speed

Built for Woodlot Skidding

The FX85RS combines an 8,500 lb pulling capacity with a synthetic rope cable measuring 200 ft (60 m) in length. The 7/16 in (11 mm) cable diameter provides the specified rope size for the winch, while the included two choker chains and two keyhole sliders support connection of loads for skidding applications.

A mechanical, dry disc clutch provides the specified winch operating system. The line speed is rated from 96 to 238 ft/min (29 to 72 m/min), and the unit is designed for a 540 rpm PTO input. Remote control operation is included as part of the FX85RS configuration.

Tractor Requirements

The Wallenstein FX85RS is specified for tractors with an engine output range of 30–55 HP. It is a PTO-driven implement requiring a 540 rpm PTO input and a Category I mounting system. The required hydraulic flow is 1–2 gpm (4–8 lpm), equivalent to 4–8 lpm.

Specifications

Brand Wallenstein
Model FX85RS
Product type PTO-driven skidding winch
Engine HP range 30–55 HP
Pulling capacity 8,500 lb (3,855 kg)
Cable type Synthetic rope
Cable length 200 ft (60 m)
Cable diameter 7/16 in (11 mm)
Winch type Mechanical, dry disc clutch
Line speed 96–238 ft/min (29–72 m/min)
Choker chains 2
Required hydraulic flow 1–2 gpm (4–8 lpm)
PTO input speed 540 rpm
PTO height 16 in (41 cm)
Mounting system Category I
Total weight 470 lb (213 kg)
Dimensions (L × W × H) 27 × 40 × 76 in (69 × 102 × 193 cm)

Compatibility

The FX85RS is compatible with a tractor PTO-driven configuration when the tractor meets the specified 30–55 HP engine range, provides a 540 rpm PTO input, supports the Category I mounting system, and meets the required 1–2 gpm (4–8 lpm) hydraulic flow.
