Vermeer TM1210 12-Disc Trailed Mower – 17.7 ft Cutting Width, 540 RPM, Floats, 2 Remotes [TM1815661]

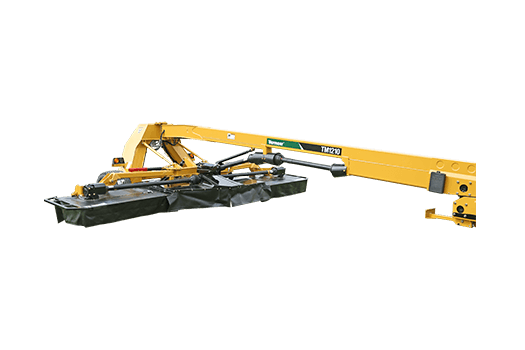

The Vermeer TM1210 Trailed Disc Mower delivers a 17.7-ft (5.4-m) cutting width for efficient hay and forage cutting across large fields. Built with 12 discs, a Q3 cutter bar, hydraulic suspension, flotation tires, and hydraulic pitch control, it is designed to provide productive field performance while helping the cutter bar follow changing terrain. The TM1210 uses a 540-rpm PTO in this specified configuration and connects through a Category II or III N 2-point Quick Hitch with swivel gearbox. With two double-acting hydraulic remotes, standard highway lights, and a transport width of 9.8 ft (3.0 m), it is suited to operators who need wide cutting capacity with practical transport and hydraulic control features.

Efficient Wide-Cut Mowing

The 12-disc cutting system provides a 17.7-ft cutting width, helping cover more ground per pass. The Q3 cutter bar is equipped with 24 blades and 23-in (58-cm) discs. A disc speed of 2,690 rpm supports the mower’s cutting system, while hydraulic pitch control allows adjustment of the cutter bar angle for changing field and crop conditions.

Cut height can be adjusted from 1 to 3 in (2.5 to 7.6 cm). Modular independent skid shoes are standard, and the driveline friction disc clutch provides torque protection. The Quick Clip blade retention system and Quick-Change shear ring are also included features of the TM1210 configuration.

Hydraulic Suspension and Flotation

Hydraulic suspension helps support the mower during field operation. The 480/45 x 17 flotation tire is designed for the trailed mower configuration, while the wide working dimensions provide substantial coverage in the field. The mower has a listed working width of 23.9 ft (7.3 m) and a working length of 19.8 ft (6.0 m).

Transport and Field Convenience

For transport, the TM1210 measures 9.8 ft (3.0 m) wide and 25.2 ft (7.7 m) long. Highway lights are standard for added visibility during road travel. An optional swath wheel is available for swath formation where required.

Key Features

• 17.7-ft (5.4-m) cutting width
• 12-disc Q3 cutter bar with 24 blades
• Hydraulic suspension
• 480/45 x 17 flotation tire
• Hydraulic pitch control
• Cut-height range of 1–3 in (2.5–7.6 cm)
• Quick Clip blade retention system
• Quick-Change shear ring standard
• Modular independent skid shoes standard
• Driveline friction disc clutch for torque protection
• Optional swath wheel
• Standard highway lights
• 3-year limited cutter bar warranty

Tractor Requirements and Compatibility

The Vermeer TM1210 requires a tractor equipped with a Category II or III N 2-point Quick Hitch and swivel gearbox. The tractor must provide two double-acting hydraulic remotes and a 540-rpm PTO capability for this specified product variant. The listed recommended minimum tractor power is 95 hp (71 kW).

The hydraulic system requirement is 1,850 psi (130 bar) and 6 gpm (20 L/min), in addition to the two double-acting remotes. Confirm that the tractor’s hitch, PTO, hydraulic capacity, and available power meet these requirements before operation.
