Vermeer

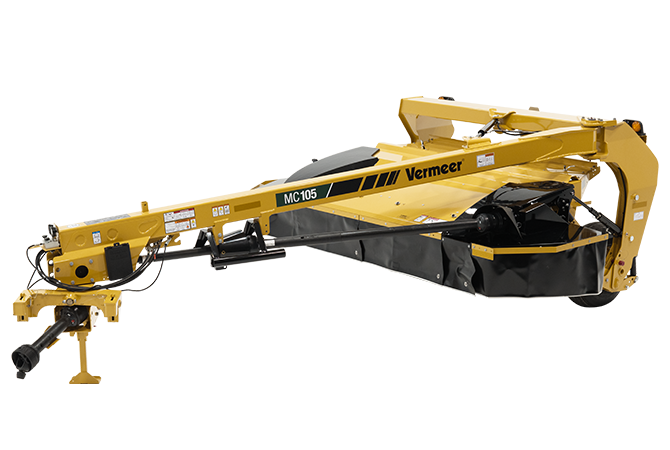

Vermeer MC105 Mower Conditioner – 10.5 ft Cut, Steel Roll, 540 RPM, 2-Point Swivel [MC1541841]

SKU MC105SR522
Starting at $70,36920
Starting at $70,36920

Add your items to the Cart to begin to build and price your package!


When you're ready to take the next step, please reach out to us for a quote.

*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Pricing may not include freight, assembly, finance, delivery, or pdi fees.
*Manufacturer pricing subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

The Vermeer MC105 Mower Conditioner combines a 10.5-foot cutting width, Q3 cutter bar and intermeshing steel roller conditioner for efficient mowing and crop conditioning in hay operations. This MC105 configuration features a 540 rpm PTO drive, a 2-point swivel gearbox hitch for Category II or III N tractors, and a recommended tractor power requirement of 75 hp. With hydraulic suspension, adjustable down pressure, toolless hydraulic pitch adjustment and a flexible 1–8-inch cut-height range, it is designed for dependable field performance across a range of mowing conditions.

Efficient Cutting and Conditioning

The MC105 uses a Q3 cutter bar with seven 23-inch discs and 14 blades. The discs operate at 2,700 rpm to provide a 10.5-foot cutting width, while the intermeshing steel rollers condition the crop across a 102-inch conditioner width. Roller speed is 740 rpm, and the windrow width can be adjusted from 40 to 95 inches to suit crop handling and drying requirements.

Hydraulic suspension with adjustable down pressure helps support consistent operation in the field. The mower conditioner also includes toolless hydraulic pitch adjustment for convenient setup, along with a Quick-Clip blade retention system and Quick-Change shear ring to support practical service and maintenance.

Key Features

  • 10.5-foot (3.2 m) cutting width
  • Q3 cutter bar with seven discs and 14 blades
  • Intermeshing steel roller conditioner
  • 102-inch (259.1 cm) conditioner width
  • 540 rpm PTO drive
  • 2-point swivel gearbox hitch option for Category II or III N
  • Hydraulic suspension with adjustable down pressure
  • Toolless hydraulic pitch adjustment
  • Quick-Clip blade retention system
  • Quick-Change shear ring
  • 1–8-inch (2.5–20 cm) cut-height range
  • 40–95-inch (101.6–241.3 cm) adjustable windrow width
  • Standard topping stops
  • Standard highway lights
  • Standard platform for tall crops
  • Standard topping high-cut kit

Specifications

Product type Mower conditioner
Cutting width 10.5 ft (3.2 m)
Working width 12.8 ft (3.9 m)
Transport width, ends up 9.8 ft (3.0 m)
Transport width, ends down 12.8 ft (3.9 m)
Transport height 73 in (185.4 cm)
Transport length 20.2 ft (6.2 m)
Working height 73 in (185.4 cm)
Total weight with steel roller conditioner 5,140 lb (2,331.5 kg)
Tongue weight 1,340 lb (607.8 kg)
Hitch 2-point with swivel gearbox, Category II or III N
PTO drive speed 540 rpm
Recommended PTO horsepower 75 hp (55.9 kW)
Cutter bar Q3 cutter bar
Cut height 1–8 in (2.5–20 cm)
Number of discs 7
Disc diameter 23 in (58.4 cm)
Disc speed 2,700 rpm
Number of blades 14
Roller conditioner type Intermeshing steel rollers
Conditioner width 102 in (259.1 cm)
Roller diameter 9.3 in (23.6 cm)
Roller speed 740 rpm
Windrow width 40–95 in (101.6–241.3 cm)

Tractor Requirements

The Vermeer MC105 requires a tractor with a 540 rpm PTO and a recommended PTO output of 75 hp (55.9 kW). This configuration uses a 2-point hitch with swivel gearbox and is specified for Category II or III N. The tractor must also provide two double-acting hydraulic remotes, hydraulic pressure of 1,900 psi (131 bar) and hydraulic flow of 6 gpm (22.7 L/min).

Product Details

Brand Vermeer
Model MC105 Mower Conditioner
Configuration Steel roller, 2-point swivel hitch variant
Product code MC105SR522
Manufacturer reference MC1541841
